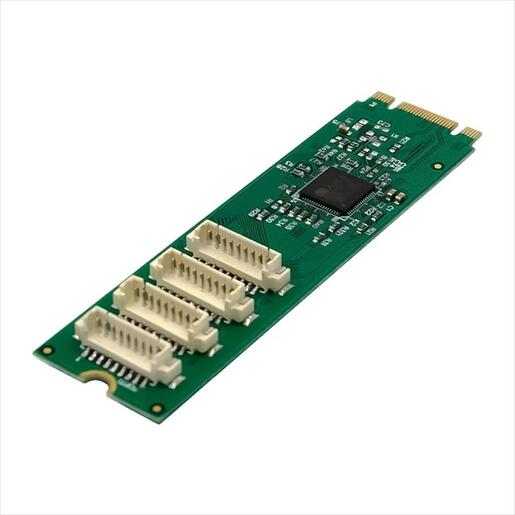

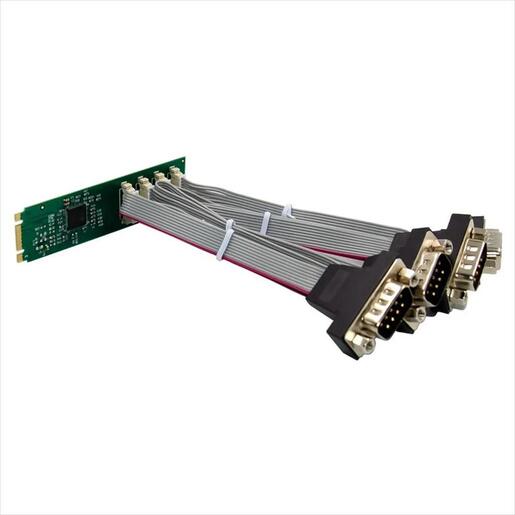

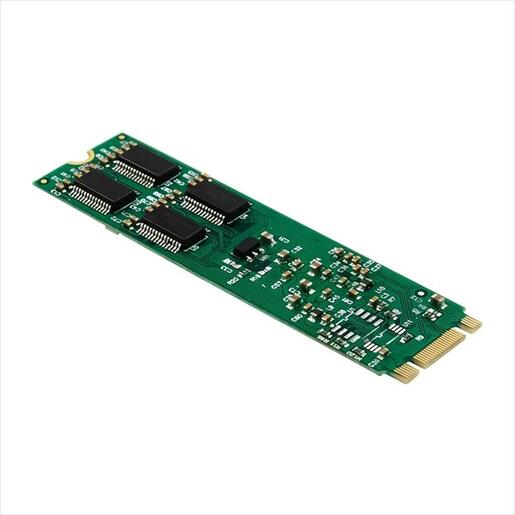

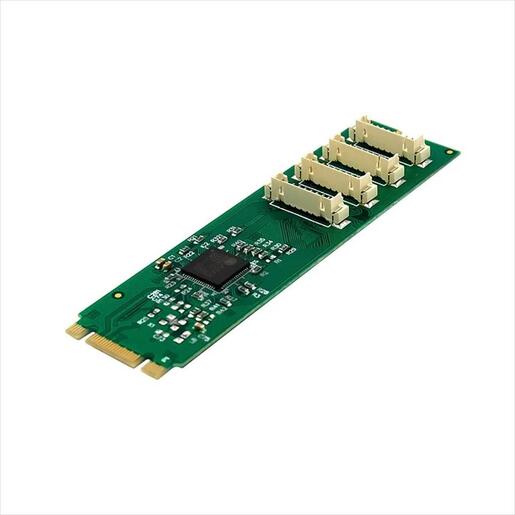

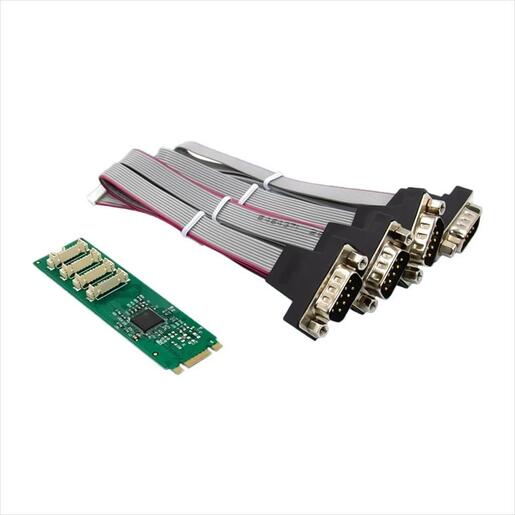

CONVERTOR M.2 TO COM X4, TXB179, Chipset: ASIX/AX99100, LPID EK000696753

Model Name: CONVERTOR M.2 TO COM X4, TXB179

Specifications:

_x000D_
• Single-channel (x1) PCI-Express endpoint controller with integrated PHY
_x000D_
• Compliant with PCI Express 2.0 Gen 1
_x000D_
• Compliant with PCI Express M.2 specification version 1.0
_x000D_
• Compliance with PCI Power Management 1.2
_x000D_
• Connector type: M.2 B+M Key
_x000D_
• Size: 22 x 80mm
_x000D_

Serial Port Interface:

_x000D_
• Dual UART or Quad UART
_x000D_
• Support RS-232 / RS-422 / RS-485 multi-protocol
_x000D_
• Bi-directional speed of each port up to 25 Mbps
_x000D_
• Full serial modem control
_x000D_
• Support hardware and software flow control
_x000D_
• Support 5, 6, 7, 8, and 9-bit serial formats
_x000D_
• Support even, odd, none, space, and mark parity
_x000D_
• Support custom baud rate through internal PLL or external clock
_x000D_
• Support on-chip 256-byte deep FIFO in the transmission and reception path of each serial port
_x000D_
• Support remote wake-up and power management functions
_x000D_
• Support shutdown of serial port transceiver
_x000D_
• Support slow IrDA mode (up to 115200bps) on all serial ports
_x000D_
• Support multi-point applications in 9-bit mode
_x000D_
• Support DMA burst transmission
_x000D_

Hardware Application:

_x000D_
• Serial connected equipment
_x000D_
• Serial network/monitoring equipment
_x000D_
• Data acquisition system
_x000D_
• POS terminal and industrial PC
_x000D_
• Serial I/O/USB for add-on cards
_x000D_
• I/O expansion for embedded systems
_x000D_

System Requirements:

_x000D_
• Linux, Windows XP / Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64-bit
_x000D_
• An available M.2 M+B key slot
