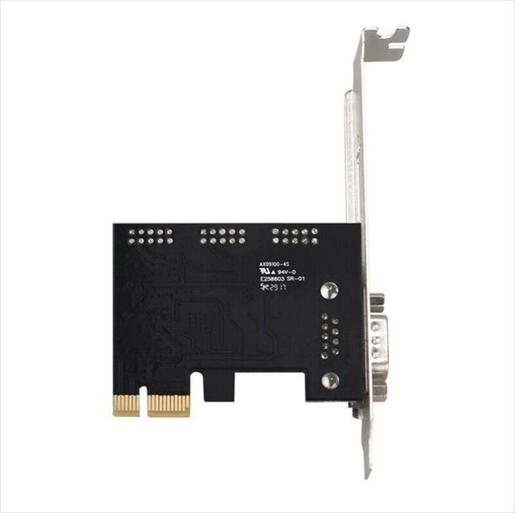

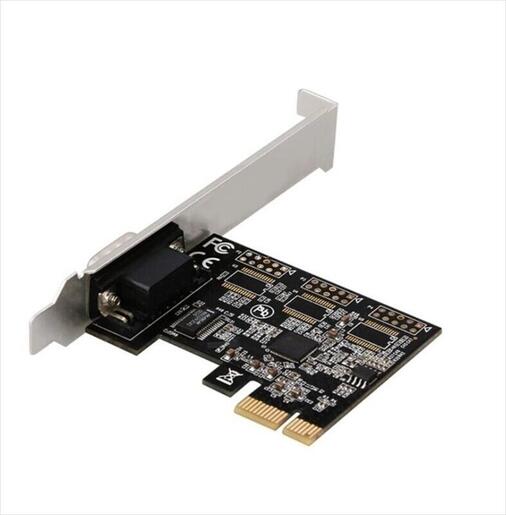

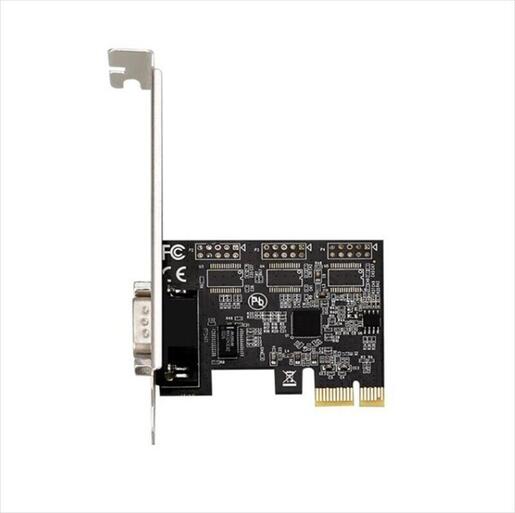

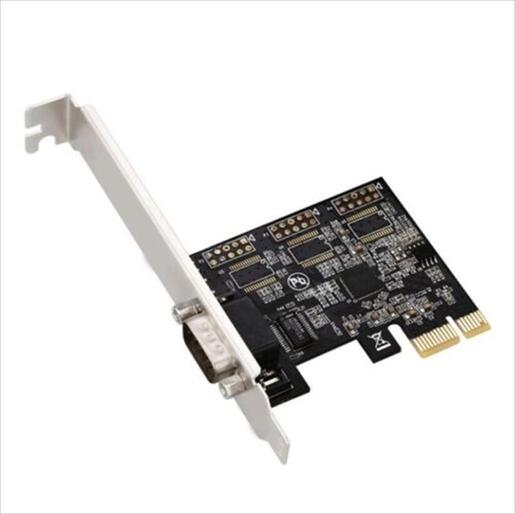

CONVERTOR PCI-E TO COM, TXB073, Chipset:ASIX/AX99100ID EK000697051

Description

_x000D_
• Model number: TXB073
_x000D_
• Chipset: ASIX/AX99100
_x000D_
• Port number: 1 * Serial port
_x000D_
• Interface: PCI Express 1x slot
_x000D_
• Dimension: 65.3*58.2*16mm
_x000D_

Operating System Support

_x000D_
• Windows 10(32/64), 8/8.1 (32/64), 7(32/64), Vista(32/64), XP(32/64), 2000
_x000D_
• Windows Server 2012, 2008 R2, 2003(32/64)
_x000D_
• Mac OS 10.x (Intel-based, tested up to 10.9)
_x000D_
• Linux 2.4.x and newer (tested up to 3.5)
_x000D_

Environment

_x000D_
• Working temperature: 0℃-50℃
_x000D_
• Relative humidity: 10%-90% (non-condensing)
_x000D_
• Storage temperature: -0℃-80℃
_x000D_
• Relative humidity: 5%-90% (non-condensing)
_x000D_

Functions

Serial port:

_x000D_
• Supports RS232, RS485, and RS422 modes
_x000D_
• Bi-directional speeds from 50 bps to 16 Mbps/Port
_x000D_
• Full control of the serial modem
_x000D_
• Supports hardware and software flow control
_x000D_
• Supports 5, 6, 7, 8, and 9-bit serial format
_x000D_
• Custom baud rates supported with external clock or internal PLL programming
_x000D_
• On-chip 256-byte FIFO depth in transmit and receive path of each serial port
_x000D_
• Supports remote wake-up and power management features
_x000D_
• Support for disabling the serial port transceiver
_x000D_
• Supports slow IrDA on all IEEE1284 serial ports
_x000D_
• Four compatible UARTs compatible with 16C450/550/Extended 550/650/Enhanced mode
_x000D_
