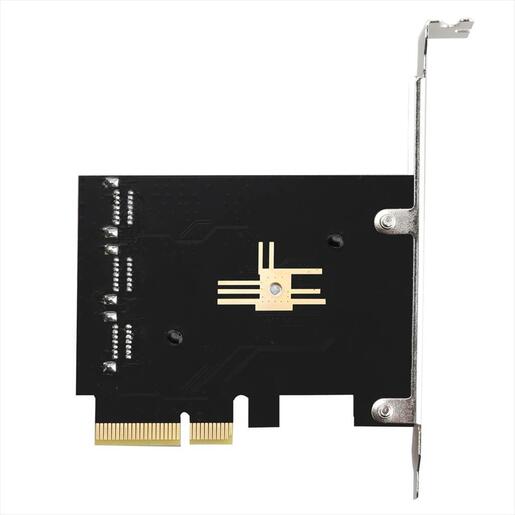

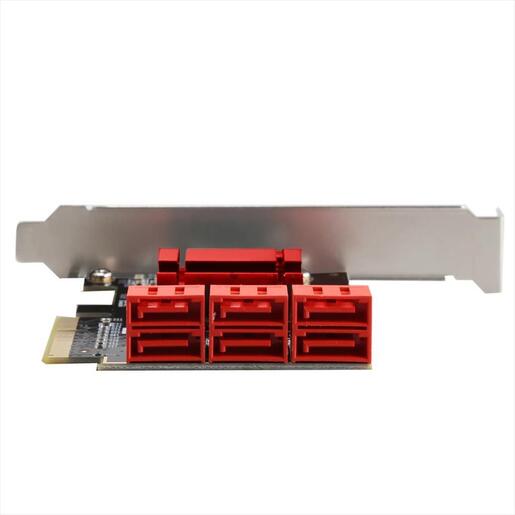

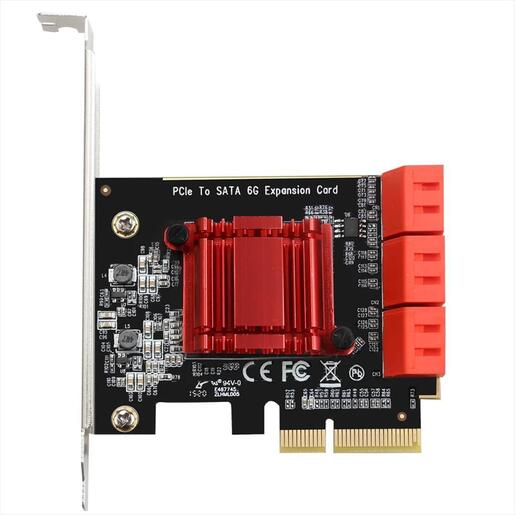

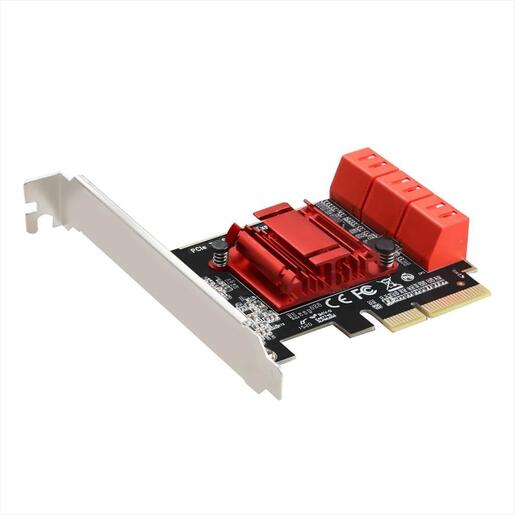

CONVERTOR PCI-E TO SATA3 X6 PORT, TXB113, Chipset: SM1166,LPID EK000696070

Model Name: PCI-E TO SATA3 X6 PORT

Features

_x000D_
• 6 AHCI SATA III (6 Gbps) ports through PCI Express x4
_x000D_
• Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
_x000D_
• Compliant with PCI Express 3.0 standards
_x000D_
• Port Multiplier Command-based switching supported
_x000D_
• Natively supported single chipset design
_x000D_
• Support Native Command Queuing (NCQ)
_x000D_
• Supports Spread Spectrum Clocking (SSC) for both PCIe and SATA
_x000D_
• Includes Low Profile/Half-Height installation bracket
_x000D_

Hardware

_x000D_
• Bus Type: PCI Express x4
_x000D_
• Card Type: Standard/Low Profile
_x000D_
• Chipset ID: ASM1166
_x000D_
• Interface: SATA
_x000D_
• Ports: 6
_x000D_

Performance

_x000D_
• Bootable: Yes
_x000D_
• Hot Swap Capability: Yes
_x000D_
• Port Multiplier: Yes
_x000D_
• Type and Rate: SATA III (6 Gbps)
_x000D_

Connector(s)

_x000D_
• Connector Type(s): 1 – PCI Express x4 Male
_x000D_
• Internal Ports: 4 – SATA (7 pin, Data) Plug
_x000D_

Software

_x000D_
• OS Compatibility: Windows® 7, 8.x, 10; Windows Server® 2008 R2, 2012, 2016, 2019; Linux 2.6.x to 4.x
_x000D_

Special Notes / Requirements

_x000D_
• System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4, x8, or x16 slot
_x000D_

Environmental

_x000D_
• Humidity: 20~80% RH
_x000D_
• Operating Temperature: 5°C to 50°C (41°F to 122°F)
_x000D_
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
_x000D_

Physical Characteristics

_x000D_
• Product Height: 120 mm
_x000D_
• Product Length: 88 mm
_x000D_
• Product Weight: 41 g
_x000D_
• Product Width: 22 mm
