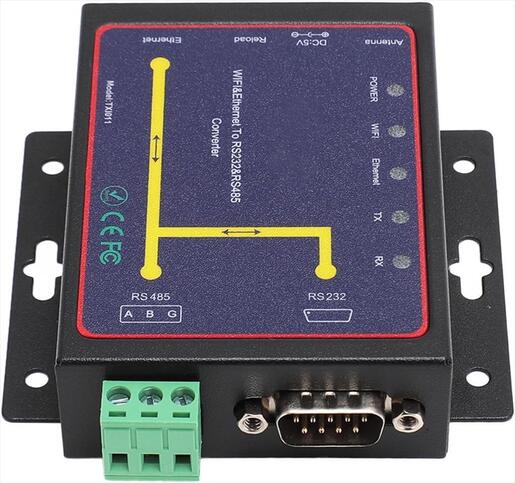

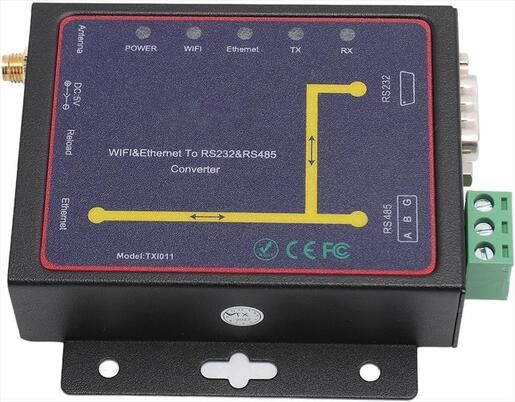

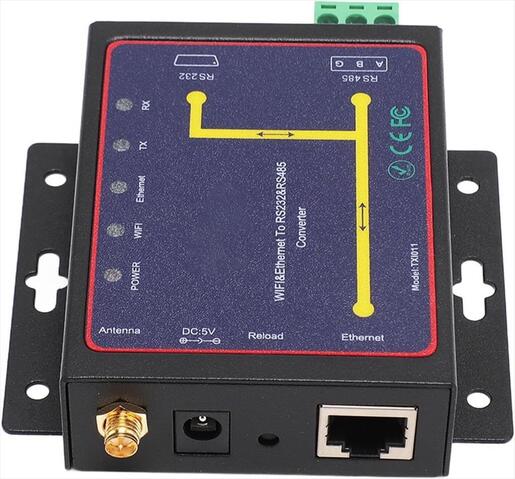

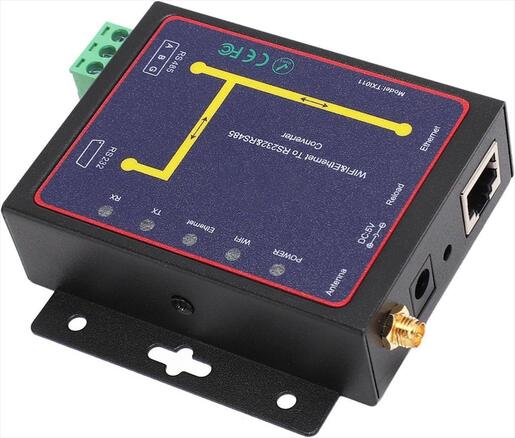

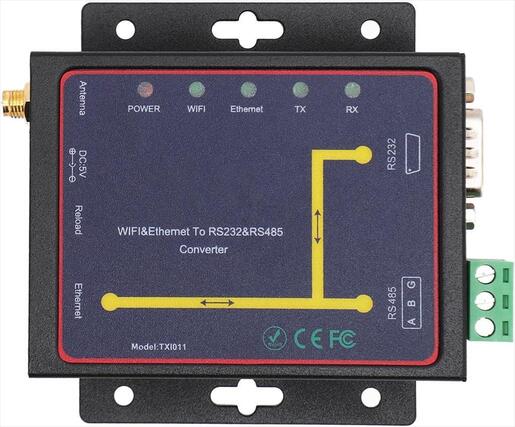

CONVERTOR WiFi TO RS232/RS485, DIEWU TXI011, Bi Directional, Chipset: TXIC/TX011ID EK000696561

Model name: DIEWU TXI011

Specification :

• Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1 port RS485, 1 port RS232
• Ethernet Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
• Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
• Ethernet Data rate: 10/100M
• WIFI Standard: IEEE802.11.b/g/n
• WIFI data rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
• WIFI mode: AP, Client
• LED Indicator: Power, WIFI, Ethernet, TX, RX
• Baud rate: 110bps~115200bps
• Operation modes: TCP Server, TCP Client, UDP, VCOM
• Dimension: 86*84*25mm
• Power Input: DC5V
• Power Consumption: Max 1.5W
• Environment:
• Operating Temperature: -10 ℃ to 55 ℃
• Relative Humidity: 10%-90% (non-condensing)
• Storage Temperature: -40℃ to 85℃
• Relative Humidity: 5%-90% (non-condensing)
