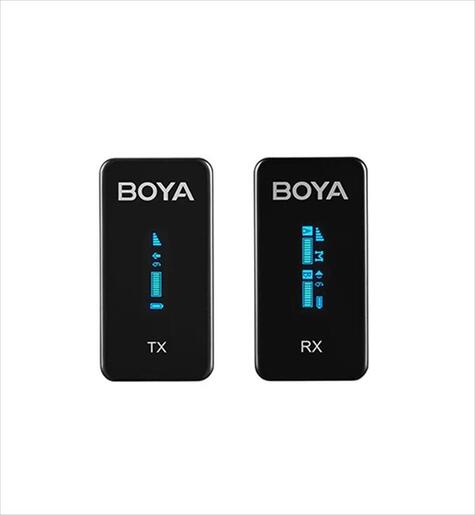

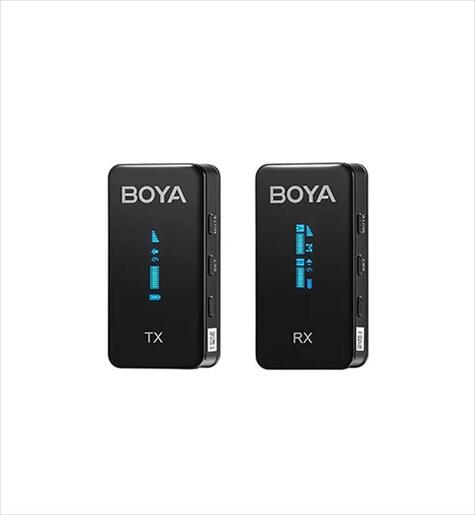

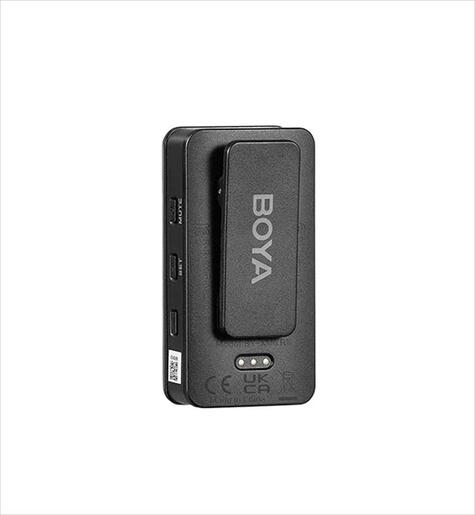

MICROPHONE WIRELESS SYSTEM BOYA AFH 2.4GHz Ultra-compact, up to 100m, BY-XM6-S1ID EK000697004

Model name: BOYA BY-XM6-S1

Specification :

_x000D_
• Transmission Type: 2.4GHz Digital Frequency
_x000D_
• Modulation: GFSK
_x000D_
• Operating Range (without obstacle): Up to 328ft (100m)
_x000D_
• RF Output Power: ＜10mW
_x000D_
• Polar Pattern: Omnidirectional
_x000D_
• Frequency Response: 50Hz-18KHz
_x000D_
• Maximum SPL:_x000D_
  _x000D_
  • Built-in Microphone: 120dB SPL
  _x000D_
  • Lavalier Microphone: 110dB SPL
  _x000D_
  _x000D_
_x000D_
• Sensitivity:_x000D_
  _x000D_
  • Built-in Microphone: -39dB
  _x000D_
  • Lavalier Microphone: -39dB
  _x000D_
  _x000D_
_x000D_
• SNR: > 84dB
_x000D_
• Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
_x000D_
• Built-in Battery Life: Approx. 7 hours
_x000D_
• Antenna: PIFA Antenna
_x000D_
• Audio Inputs: 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
_x000D_
• Weight: Approx. 32g (1.13oz)
_x000D_
• Dimensions: 62.1×31.6×16.5mm
_x000D_
• Operating Temperature: –10℃ to 50℃
_x000D_
• Storage Temperature: –20℃ to +55℃
_x000D_

Receiver

_x000D_
• Transmission Type: 2.4GHz Digital Frequency
_x000D_
• Modulation: GFSK
_x000D_
• Operating Range (without obstacle): Up to 328ft (100m)
_x000D_
• Audio Output Connector: 3.5mm Headphone Jack / 3.5mm TRS Output Jack
_x000D_
• Audio Output Level: –60 dBV to -20dBV
_x000D_
• Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
_x000D_
• Built-in Battery Life: Approx. 6.5 hours
_x000D_
• Antenna: PIFA Antenna
_x000D_
• Weight: Approx. 32g
_x000D_
• Operating Temperature: –10℃ to 50℃
_x000D_
• Storage Temperature: –20℃ to +55℃
_x000D_
