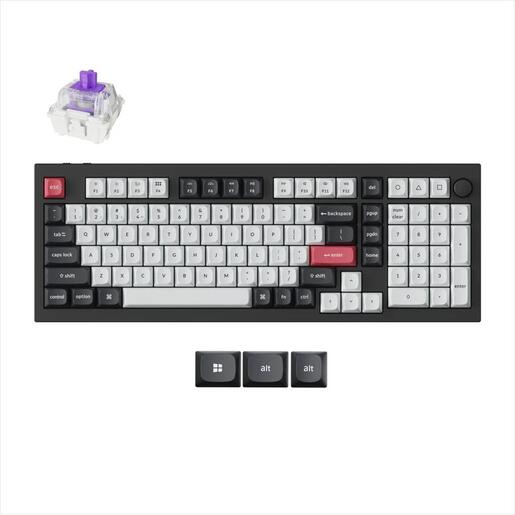

KEYBOARD MECHANICAL KEYCHRON Q5 HE QMK/VIA RGB Al. body, HS Gateron Nebula switch, 2.4 GHz & BT, Carbon Black, w/knob, Q5H-M1ID EK000800058

Model name: KEYCHRON Q5 HE

Specification :

• Width: 144.8 mm
• Length: 408.05 mm
• Front Height: 20.73 mm (without keycaps)
• Back Height: 31.8 mm (without keycaps)
• Feet Height: 2.4 mm
• Angle: 5.3°
• Weight: 2187 g ± 10 g (Fully Assembled version)
• Body Material: Aluminum
• Plate Material: Aluminum
• Polling Rate:
  • 1000 Hz (Wired and 2.4 GHz)
  • 90 Hz (Bluetooth)
• N-Key Rollover (NKRO): Yes for both wireless and wired modes
• Rapid Trigger: Yes
• Adjustable Actuation Points: 0.2 - 3.8 mm
• Dynamic Keystrokes: 4-in-1 action keys
• Sensitivity: 0.1 mm
• Keycap: OSA Double-shot keycaps, not shine-through
• MCU: ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
• Backlight: South-facing RGB LED
• Switch: Gateron double-rail magnetic switch
• Hot-swappable Support: Yes, compatible with Gateron double-rail magnetic switch only.
• Stabilizer: Screw-in PCB stabilizer
• Cable: Type-C cable (1.8 m) + Type-A to Type-C adapter
• Connectivity:
  • 2.4 GHz
  • Bluetooth
  • Type-C wired
• Bluetooth Version: 5.2
• Bluetooth Device Name: Keychron Q5 HE
• Battery: 4000 mAh Rechargeable li-polymer battery
• Operating Environment: -10 to 50℃
• Wireless Working Time:
  • (Backlit off): Up to 100 hours
