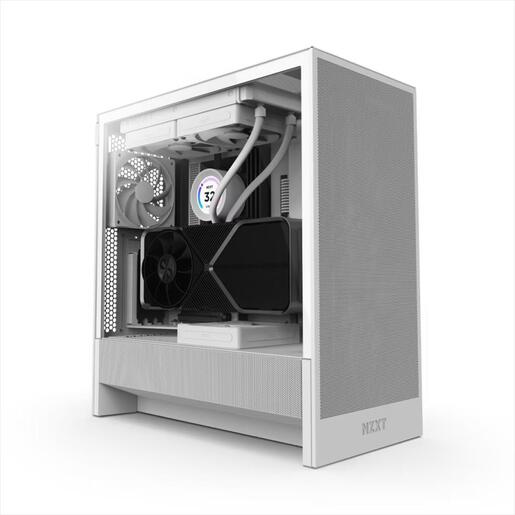

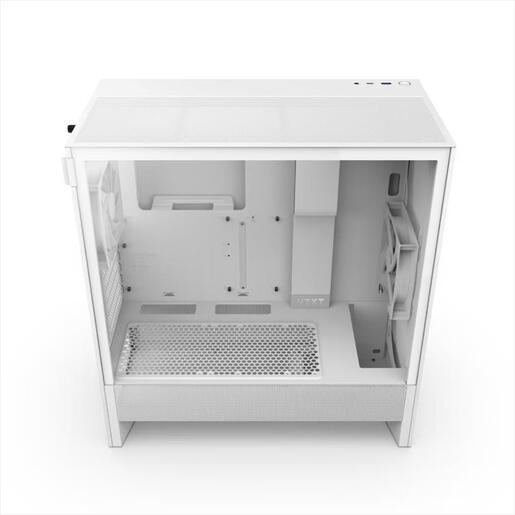

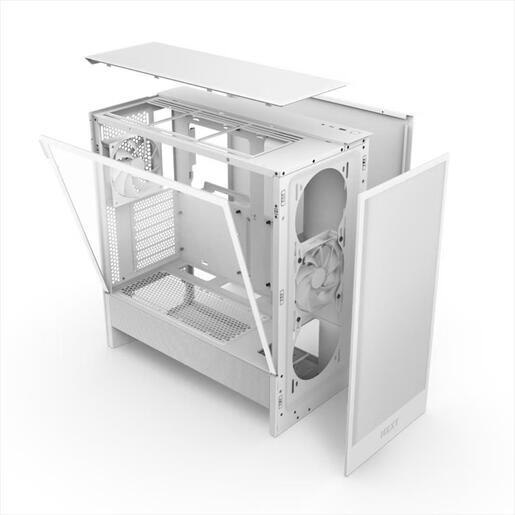

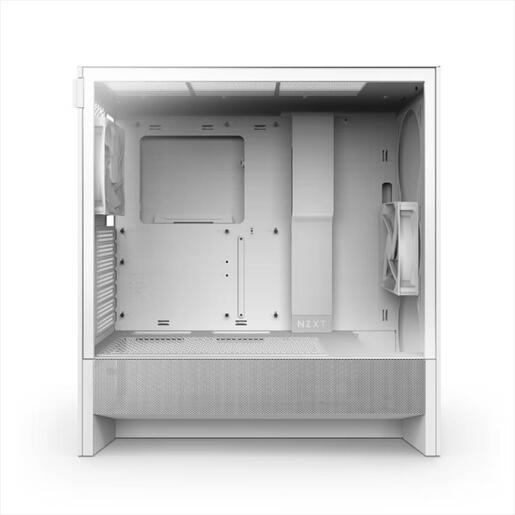

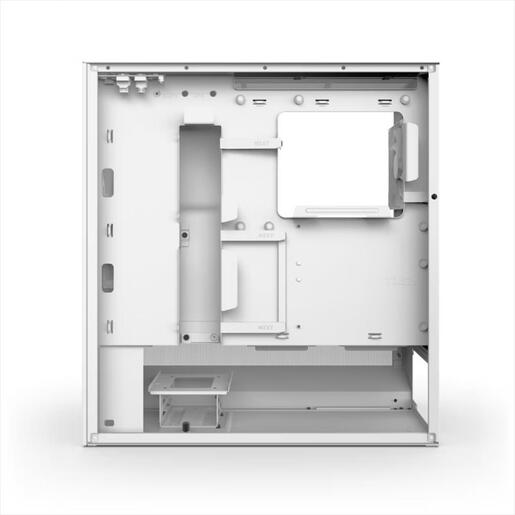

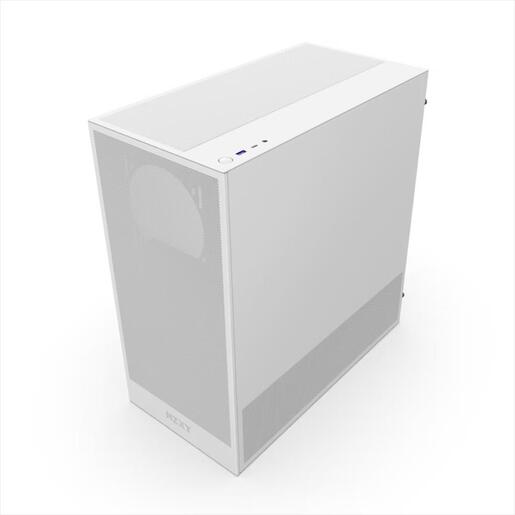

CASE NZXT E-ATX Mid-Tower H5 FLOW (2024) w/Mesh Front & top MESH 2xF120Q, USB 3.2 type-C, 1xUSB 3.2 type A, Matte White CC-H52FW-01ID EK000696189

Model name: NZXT H5 FLOW (2024)

Specification :

• Motherboard Support:
  • E-ATX (Up to 277 mm wide)
  • ATX
  • Micro-ATX
  • Mini-ITX
• Enclosure Type: Mid-Tower
• Case Material: SGCC Steel, Ultra-Clear Tempered Glass
• Dimensions:
  • Height (with feet): 465 mm / 18.31 in
  • Width: 225 mm / 8.86 in
  • Depth: 430 mm / 16.93 in
  • Weight: 7.28 kg / 16.04 lb
• Compatibility & Clearance:
  • CPU Cooler Height: Up to 170 mm
  • GPU Length: Up to 410 mm
  • PSU Length: Up to 200 mm
  • Cable Management: Up to 28.7 mm
  • Top Radiator: Up to 240 mm (280 mm with low-profile memory)
  • Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55 mm
• Front Ports:
  • USB 3.2 Type-A: 1
  • USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
  • Headset Audio Jack: 1
• Expansion Slots:
  • Standard: 7
  • Vertical: 0
• Drive Bays:
  • 2.5": 2
  • 3.5": 1
• Fan Support:
  • Front: 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
  • Top: 2 x 120 mm / 2 x 140 mm
  • Bottom: 2 x 120 mm
  • Rear: 1 x 120 mm (1 x F120Q Case Version included)
• Radiator Support:
  • Front: Up to 360 mm
  • Top: Up to 240 mm (280mm with low-profile memory only)
• Fan Specs:
  • Model: F120Q (Case Version)
  • Speed: 1,350 ± 150 RPM
  • Airflow: 60.2 CFM
  • Static Pressure: 1.05 mm-H₂O
  • Noise: 24.1 dBA
  • Fan Connector: 3-pin DC
