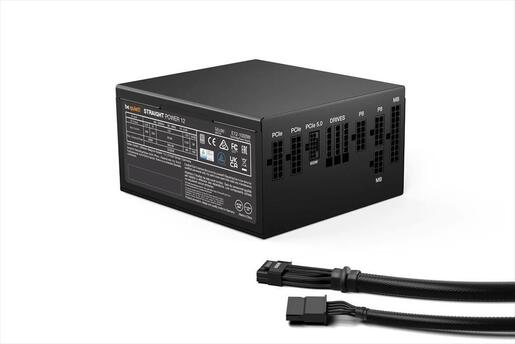

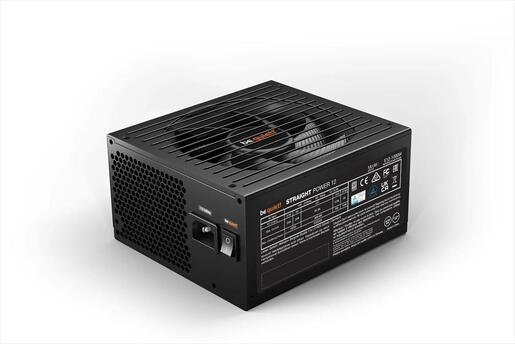

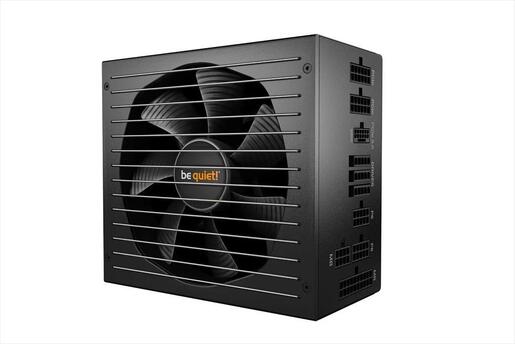

PSU 1000W BE QUIET! STRAIGHT POWER 12 w/PCIe 5.0, 80 Plus PLATINUM FULL MODULAR, BN338ID EK000696323

Model Name: BE QUIET! STRAIGHT POWER 12

Specification :

_x000D_
• Total Power: 1000 W
_x000D_
• Peak Power: 1070 W
_x000D_
• AC Input Voltage: 100 - 240 V
_x000D_
• AC Input Frequency: 50 - 63 Hz
_x000D_
• Input Current: 13/6.5 A
_x000D_
• Power Factor: 0.99
_x000D_
• Combined Power (+3.3V): 150 W
_x000D_
• Combined Power (+12V): 999.6 W
_x000D_
• Max Output Current (+3.3V): 25 A
_x000D_
• Max Output Current (+12V): 83.3 A
_x000D_
• Max Output Current (+5V): 25 A
_x000D_
• Max Output Current (-12V): 0.5 A
_x000D_
• Max Output Current (+5Vsb): 3 A
_x000D_
• Hold Time: 25.3 ms
_x000D_
• Efficiency: 93.9%
_x000D_
• Power Protection Features: Over Current, Over Power, Over Voltage, Overheating, Under Voltage
_x000D_
• Motherboard Power Connector: 20+4 pin ATX
_x000D_
• Motherboard Power Cable Length: 60 cm
_x000D_
• Number of SATA Power Connectors: 9
_x000D_
• Number of PATA Power Connectors: 2
_x000D_
• Peripheral (Molex) Power Connectors (4-pin): 1
_x000D_
• EPS Power Connector (8-pin): Yes
_x000D_
• EPS Power Connector (4+4 pin): Yes
_x000D_
• PCI Express Power Connectors (6+2 pin): 4
_x000D_
• Floppy Disk Drive Connector: No
_x000D_
• Cabling Type: Modular
_x000D_
• 80 PLUS Certification: 80 PLUS Platinum
_x000D_
• Supported Motherboard Form Factors: ATX, micro ATX, Mini-ATX
_x000D_
• Purpose: PC
_x000D_
• Power Supply Unit (PSU) Form Factor: ATX
_x000D_
• ATX Version: 3.0
_x000D_
• EPS Version: 2.92
_x000D_
• Noise Level: 28.9 dB
_x000D_
• Bearing Technology: FDB
_x000D_
• Mean Time Between Failures (MTBF): 100000 h
_x000D_
• Product Colour: Black
_x000D_
• Cooling Type: Active
_x000D_

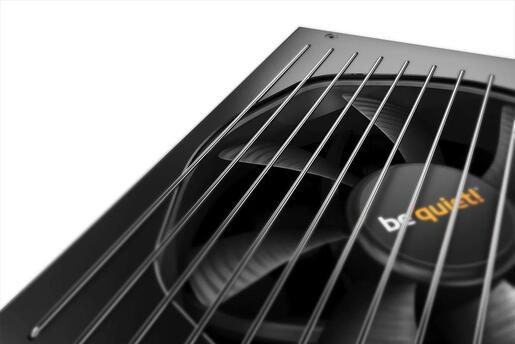

• Fan Diameter: 13.5 cm
_x000D_
• Number of Fans: 1 fan(s)
_x000D_
• Fan Speed: 2100 - 2100 RPM
_x000D_
• Fan Location: Top
_x000D_
• Built-in Display: No
_x000D_
• On/Off Switch: Yes
_x000D_
• Operating Temperature (T-T): 0 - 40 °C
_x000D_

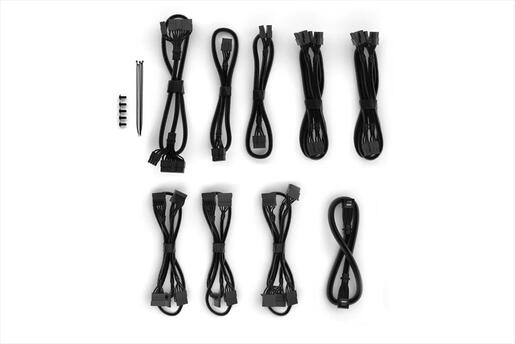

• Cables Included: CPU, SATA
_x000D_
• Cable Tie(s) Included: Yes
