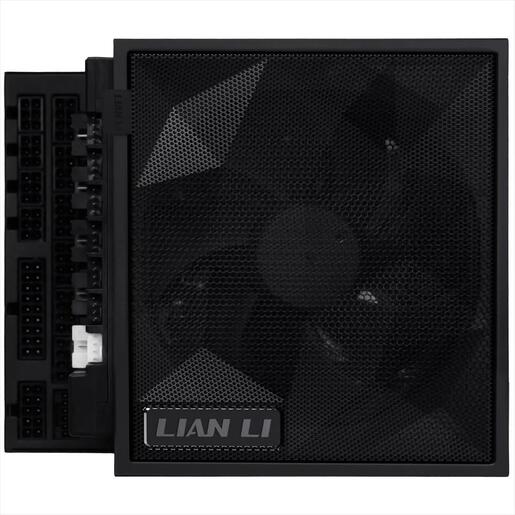

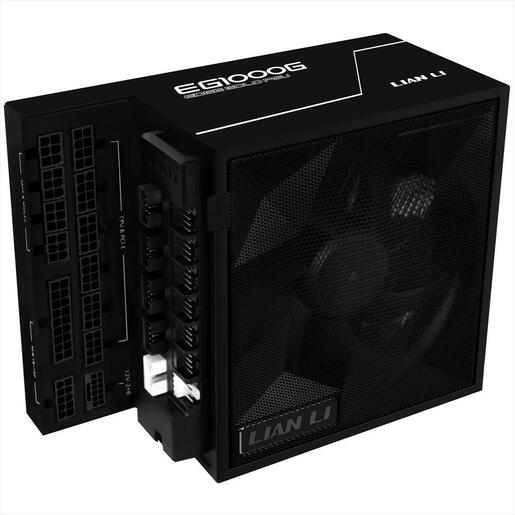

PSU 1000W LIAN LI EDGE EG1000G 80+ GOLD PCIe 5.1 (L-Shape, w/x4 USB 2.0 headers), FULL MODULAR BlackID EK000696163

Model name: LIAN LI EG1000G

Specifications:

• Dimensions: (D)182 mm x (W)86 mm x (H)150 mm
• Power Supply Design: Fully modular
• Color: Black
• Material: Steel
• Form Factor: ATX 3.1
• Max. DC Output: 1000W
• Combined +3.3V & +5V: 120W
• Combined +12V: 996W
• Input Voltage: 100-240Vac
• Input Frequency Range: 12-6A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 91.24% MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP

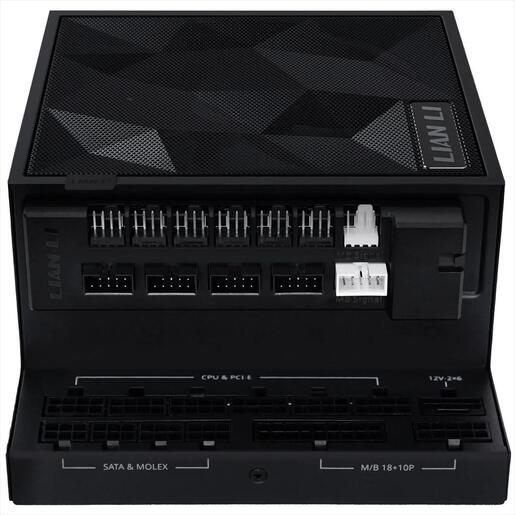

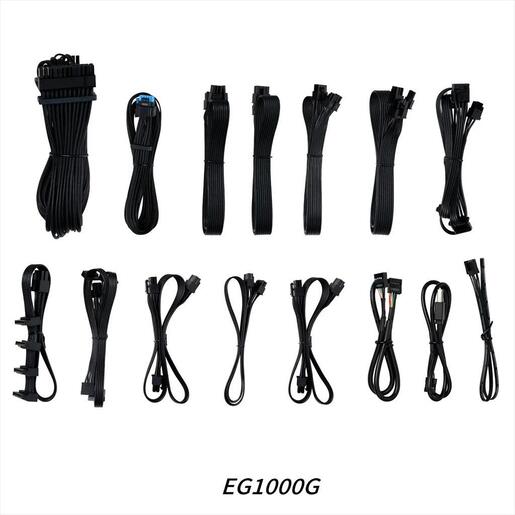

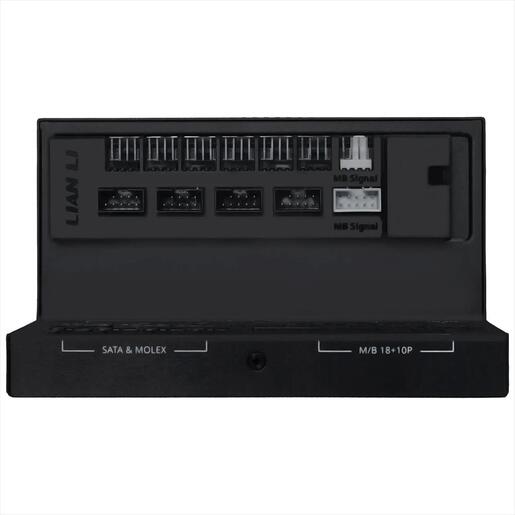

• Connectors:
  • 1 x 24/20-Pin motherboard connector (620mm)
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm)
  • 1 x 4+4 Pin CPU/ATX 12V connector (750mm)
  • 1 x 6+2 Pin PCIe connector (650mm + 100mm)
  • 4 x SATA connector (300mm-15mm-15mm-15mm)
  • 4 x Y Type SATA connector (375mm-150mm-150mm-150mm)
  • 4 x SATA connector (400mm-150mm-150mm-150mm)
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm)
  • 1 x 12V – 2X6 450W connector (650mm)
  • USB*9pin – USB*9pin connector (470mm)
  • USB*9pin - Type A connector (550mm)
• Fan Type: 120mm FDB Fan
• Fan Speed: 2400 RPM
• Fan Noise Level: 39.3 dBA
