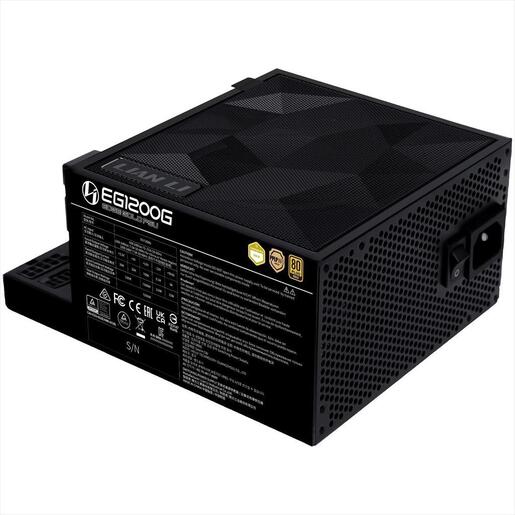

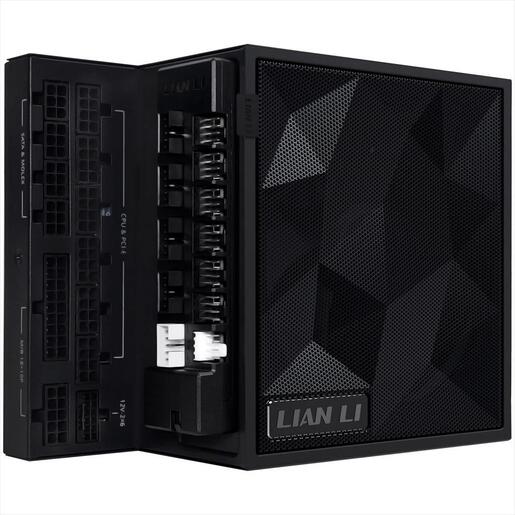

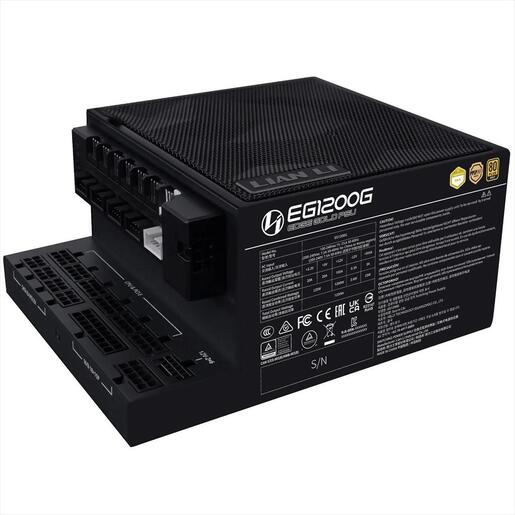

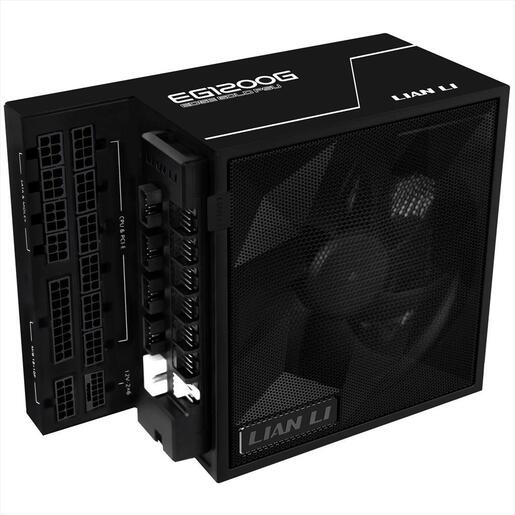

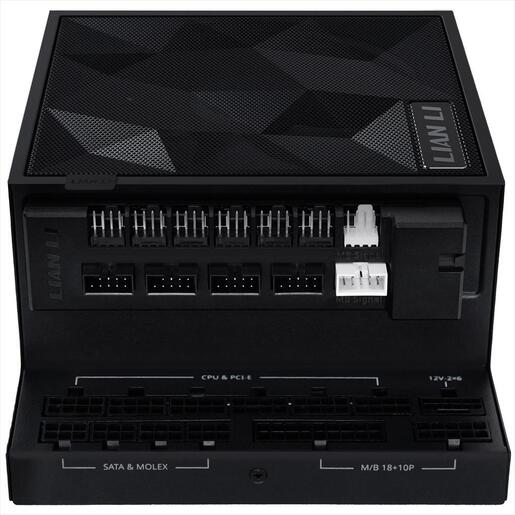

PSU 1200W LIAN LI EDGE EG1200G 80+ GOLD PCIe 5.1 (L-Shape, w/x4 USB 2.0 headers), FULL MODULAR BlackID EK000696328

Model name: LIAN LI EG1200G

Specifications:

• Dimensions: (D)182 mm x (W)86 mm x (H)150 mm
• Power Supply Design: Fully modular
• Color: Black
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD
• Max. DC Output: 1200W
• Combined Power:
  • +3.3V & +5V: 120W
  • +12V: 1200W
• Input Voltage: 100-240Vac
• Input Frequency Range: 15-7.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 91.64% MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP

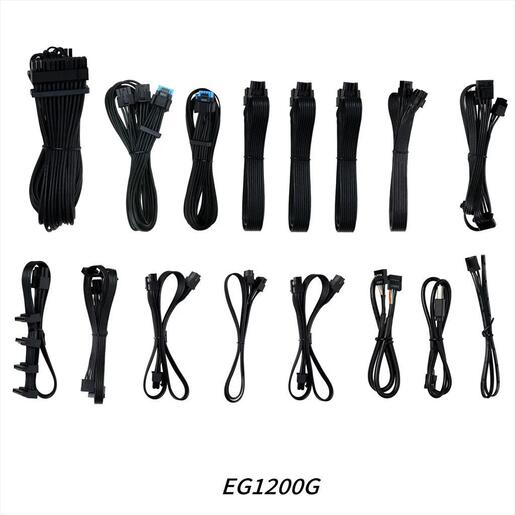

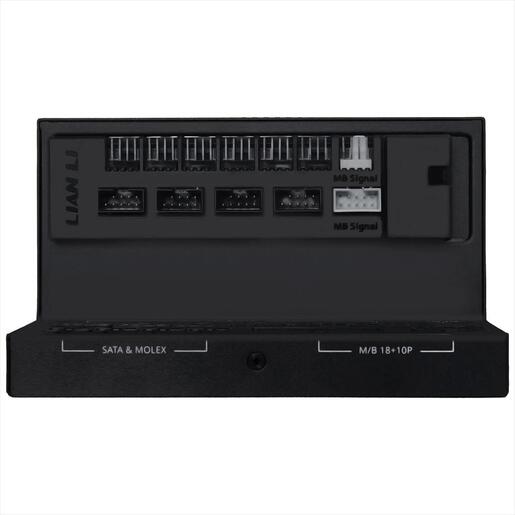

• Connectors:
  • 1 x 24/20-Pin motherboard connector (620mm)
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm)
  • 1 x 4+4 Pin CPU/ATX 12V connector (750mm)
  • 1 x 6+2 Pin PCIe connector (650mm + 100mm)
  • 4 x SATA connector (300mm-15mm-15mm-15mm)
  • 4 x Y Type SATA connector (375mm-150mm-150mm-150mm)
  • 4 x SATA connector (400mm-150mm-150mm-150mm)
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm)
  • 1 x 12V – 2X6 450W connector (650mm)
  • 1 x 12V – 2X6 -2*8 600W connector (650mm)
  • 1 x USB*9pin – USB*9pin connector (470mm)
  • 1 x USB*9pin -Type A connector (550mm)
• Fan:
  • Type: 120mm FDB Fan
  • Speed: 2400RPM
  • Noise Level: 39.3dBA
