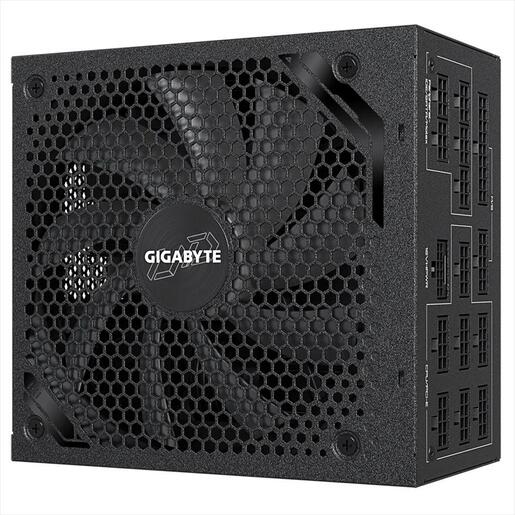

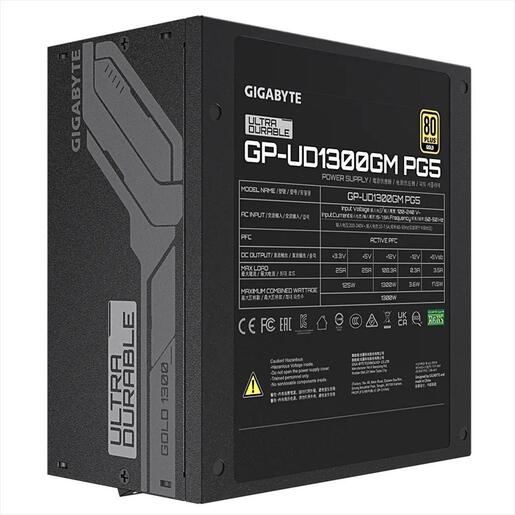

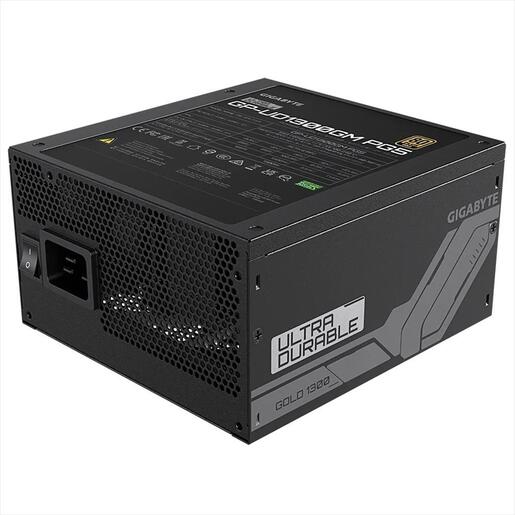

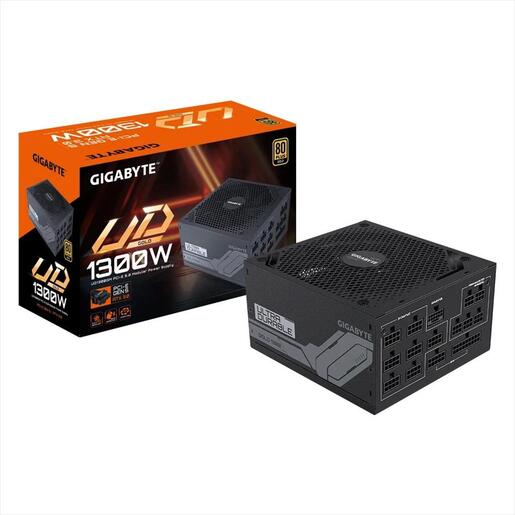

PSU 1300W GIGABYTE UD1300GM PG5 80 PLUS GOLD w/PCIE 5.0, FULL MODULAR, BLACK, GP-UD1300GM PG5ID EK000696961

Model name: GIGABYTE UD1300GM

Specifications:

• Type: Intel Form Factor ATX 12V v3.0
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100–240 Vac (full range)
• Input Current: 15–6.5A
• Input Frequency: 60–50 Hz
• Output Capacity: 1300W
• Dimension: 150 x 160 x 86 mm

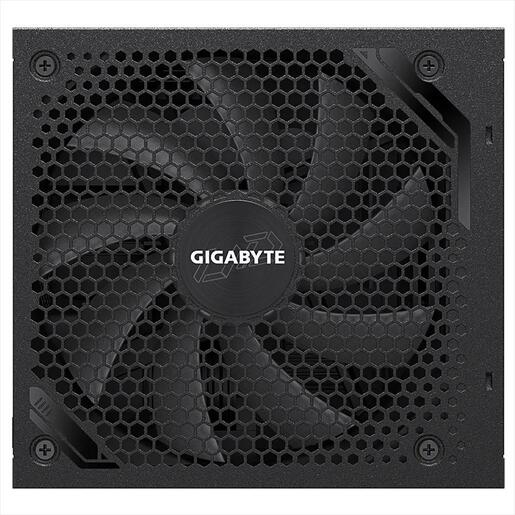

• Fan Type: 140mm double ball bearing fan
• 80 PLUS: Gold
• Efficiency: 90% at typical load
• MTBF: >100,000 hours
• Protection: OVP / OPP / SCP / UVP / OCP / OTP
• Power Good Signal: 100–150ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black

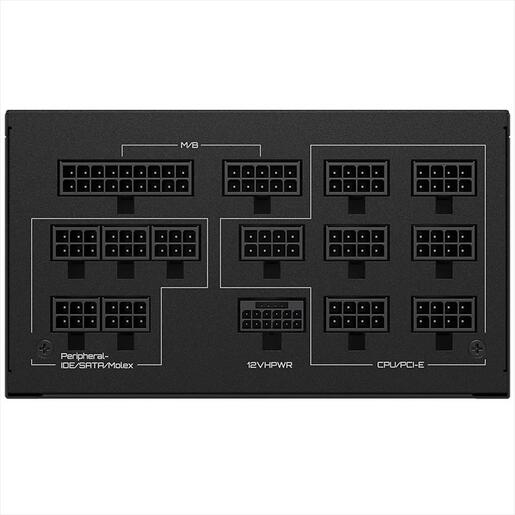

• Connectors:
  • ATX/MB 20+4 Pin x 1: 610mm
  • CPU/EPS 4+4 Pin x 2: 650mm x2
  • PCIe 16 Pin x 1: 700mm
  • PCIe 6+2 Pin x 8: 650mm + 150mm x3, 650mm x2
  • SATA x 12: 650mm + 150mm + 150mm + 150mm x3
  • 4 Pin Peripheral x 6 + 4-Pin floppy x 2: 600mm + 150mm + 150mm + 150mm x2
