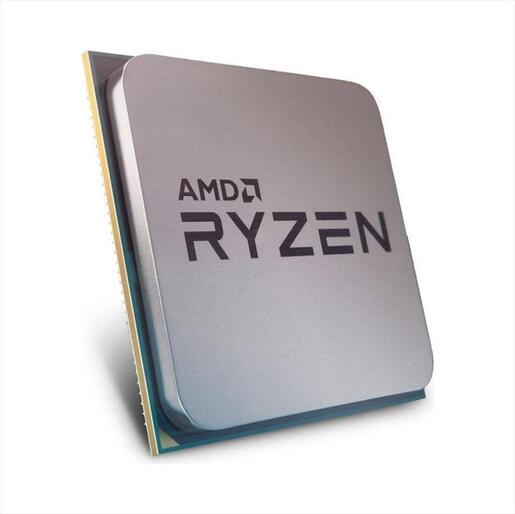

CPU AMD RYZEN 5 7600, Six Core, 5,1GHz 39MB s.AM5 w/Radeon Graphics, 100-000001015 TRAYID EK000783606

Model Name: RYZEN 5 7600

Specification

• Series: Ryzen 7000 Series
• Market Segment: Enthusiast Desktop
• AMD PRO Technologies: No
• Consumer Use: Yes
• # of CPU Cores: 6
• Multithreading (SMT): Yes
• # of Threads: 12
• Max. Boost Clock: Up to 5.1 GHz
• Base Clock: 3.8 GHz
• L1 Cache: 384 KB
• L2 Cache: 6 MB
• L3 Cache: 32 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): AMD Wraith Stealth
• Max. Operating Temperature (Tjmax): 95°C
• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 1
• Native SATA Ports: 0
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28, 24
• Additional Usable PCIe Lanes from Motherboard: X670E 12x Gen4, X670 12x Gen4, B650E 8x Gen4, B650 8x Gen4
• NVMe Support: Boot, RAID0, RAID1, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 128 GB
• System Memory Subtype: UDIMM
• Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600
• ECC Support: Yes (Requires mobo support)
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes
