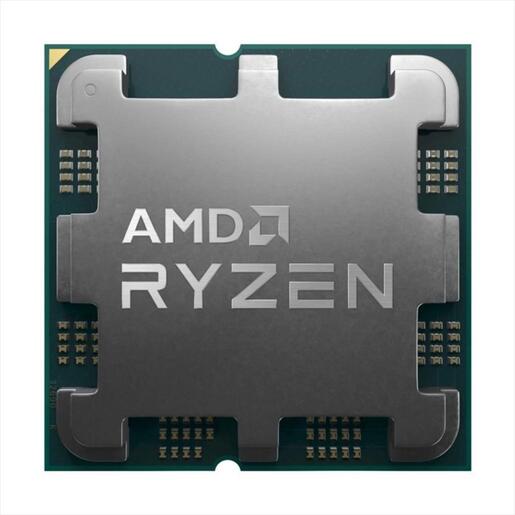

CPU AMD RYZEN 7 9800X3D, Octa Core, 5.2GHz 104MB s.AM5 TRAY 100-000001084ID EK000719212

Model name: AMD RYZEN 7 9800X3D

Specification:

• Series Ryzen 9000 Series
• Form Factor Desktops , Boxed Processor
• Market Segment Enthusiast Desktop
• AMD PRO Technologies No
• Consumer Use Yes
• Regional Availability Global
• Former Codename Granite Ridge AM5
• Architecture Zen 5
• # of CPU Cores 8
• Multithreading (SMT) Yes
• # of Threads 16
• Max. Boost Clock Up to 5.2 GHz
• Base Clock 4.7 GHz
• L1 Cache 640 KB
• L2 Cache 8 MB
• L3 Cache 96 MB
• Default TDP 120W
• Processor Technology for CPU Cores TSMC 4nm FinFET
• Processor Technology for I/O Die TSMC 6nm FinFET
• Package Die Count 2
• Unlocked for Overclocking Yes
• AMD EXPO™ Memory Overclocking Technology Yes
• Precision Boost Overdrive Yes
• Curve Optimizer Voltage Offsets Yes
• AMD Ryzen™ Master Support Yes
• CPU Socket AM5
• Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
• CPU Boost Technology Precision Boost 2
• Instruction Set x86-64
• Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB) Not Included
• Recommended Cooler Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax) 95°C
• OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
• Native USB 3.2 Gen 2 (10Gbps) 4
• Native USB 2.0 (480Mbps) 1
• PCI Express® Version PCIe® 5.0
• Native PCIe® Lanes (Total/Usable) 28 , 24
• NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10
• System Memory Type DDR5
• Memory Channels 2
• Max. Memory 192 GB
• System Memory Subtype UDIMM
• Max Memory Speed 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
• ECC Support Yes (Requires mobo support)
• Graphics Model AMD Radeon™ Graphics
• Graphics Core Count 2
• Graphics Frequency 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode Yes
