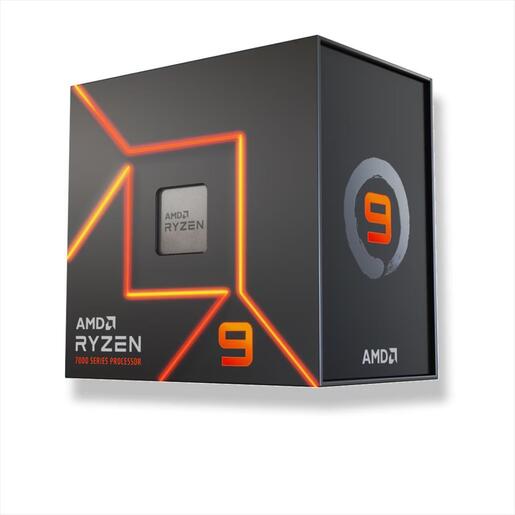

CPU AMD RYZEN 9 7900X, 12 Core, 5,6GHz 76MB s.AM5, w/Radeon Graphics, 100-100000589WOF, BOX w/o cooler/2ID EK000719189

Model name: AMD RYZEN 9 7900X

Specification

• Architecture: Zen 4
• Number of CPU Cores: 12
• Multithreading (SMT): Yes
• Number of Threads: 24
• Max. Boost Clock: Up to 5.6 GHz
• Base Clock: 4.7 GHz
• L1 Cache: 768 KB
• L2 Cache: 12 MB
• L3 Cache: 64 MB
• Default TDP: 170W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 95°C
• OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 1
• Native SATA Ports: 0
• Native PCIe® Lanes (Total/Usable): 28, 24
• Additional Usable PCIe Lanes from Motherboard: X670E - 12x Gen4, X670 - 12x Gen4, B650E - 8x Gen4, B650 - 8x Gen4
• NVMe Support: Boot, RAID0, RAID1, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 128 GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  • 2x1R: DDR5-5200
  • 2x2R: DDR5-5200
  • 4x1R: DDR5-3600
  • 4x2R: DDR5-3600
• ECC Support: Yes (Requires motherboard support)
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes
