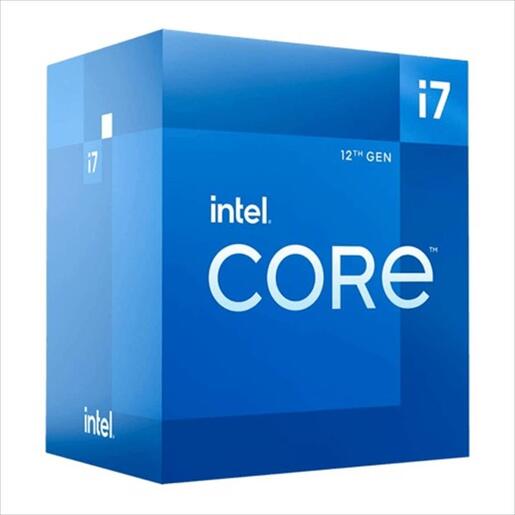

CPU INTEL i7-12700 max turbo 4,9GHz, 12 CORE, 25MB s.1700 BOX, 65W (max 180W), BX8071512700ID EK000878032

CPU Specifications

• Total Cores: 12
• # of Performance-cores: 8
• # of Efficient-cores: 4
• Total Threads: 20
• Max Turbo Frequency: 4.90 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 4.90 GHz
• Performance-core Max Turbo Frequency: 4.80 GHz
• Efficient-core Max Turbo Frequency: 3.60 GHz
• Performance-core Base Frequency: 2.10 GHz
• Efficient-core Base Frequency: 1.60 GHz
• Cache: 25 MB Intel® Smart Cache
• Total L2 Cache: 12 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 180 W
• Supplemental Information:
  • Marketing Status: Launched
  • Launch Date: Q1'22
  • Embedded Options Available: Yes
  • Datasheet: View now
• Memory Specifications:
  • Max Memory Size (dependent on memory type): 128 GB
  • Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
  • Max # of Memory Channels: 2
  • Max Memory Bandwidth: 76.8 GB/s
  • ECC Memory Supported ‡: Yes
• Processor Graphics:
  • Processor Graphics ‡: Intel® UHD Graphics 770
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 1.50 GHz
  • Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
  • Execution Units: 32
  • Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
  • Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
  • Max Resolution (eDP - Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz
  • DirectX* Support: 12
  • OpenGL* Support: 4.5
  • OpenCL* Support: 3.0
  • Multi-Format Codec Engines: 2
  • Intel® Quick Sync Video: Yes
  • Intel® Clear Video HD Technology: Yes
  • # of Displays Supported ‡: 4
  • Device ID: 0x4680
• Expansion Options:
  • Direct Media Interface (DMI) Revision: 4.0
  • Max # of DMI Lanes: 8
  • Scalability: 1S Only
  • PCI Express Revision: 5.0 and 4.0
  • PCI Express Configurations ‡: Up to 1x16+4, 2x8+4
  • Max # of PCI Express Lanes: 20
• Package Specifications:
  • Sockets Supported: FCLGA1700
  • Max CPU Configuration: 1
  • Thermal Solution Specification: PCG 2020C
  • TJUNCTION: 100°C
  • Package Size: 45.0 mm x 37.5 mm
• Advanced Technologies:
  • Intel® Gaussian & Neural Accelerator: 3.0
  • Intel® Thread Director: Yes
  • Intel® Deep Learning Boost (Intel® DL Boost): Yes
  • Intel® Optane™ Memory Supported ‡: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Turbo Boost Max Technology 3.0 ‡: Yes
  • Intel® Turbo Boost Technology ‡: 2.0
  • Intel® Hyper-Threading Technology ‡: Yes
  • Intel® 64 ‡: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel® Volume Management Device (VMD): Yes
• Security & Reliability:
  • Intel vPro® Eligibility ‡: Intel vPro® Enterprise, Intel vPro® Essentials
  • Intel® Threat Detection Technology (TDT): Yes
  • Intel® Active Management Technology (AMT) ‡: Yes
  • Intel® Standard Manageability (ISM) ‡: Yes
  • Intel® One-Click Recovery ‡: Yes
  • Intel® Hardware Shield Eligibility ‡: Yes
  • Intel® Control-Flow Enforcement Technology: Yes
  • Intel® Total Memory Encryption - Multi Key: Yes
  • Intel® Total Memory Encryption: Yes
  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® OS Guard: Yes
  • Intel® Trusted Execution Technology ‡: Yes
  • Execute Disable Bit ‡: Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBEC): Yes
  • Intel® Stable IT Platform Program (SIPP): Yes
  • Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡: Yes
  • Intel® Virtualization Technology (VT-x) ‡: Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
  • Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
