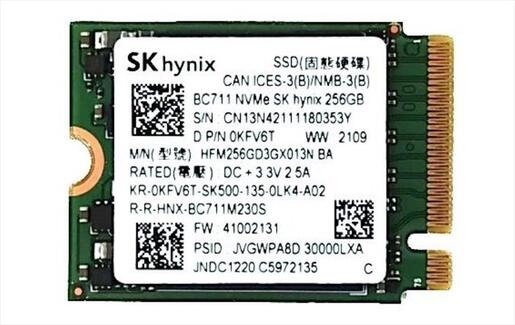

SSD M.2 256GB HYNIX BC711 (2230) NVMe Gen3 x4 HFM256GD3GX013NID EK000719516

Model name: HYNIX BC711

Specification :

• Capacity: 256 GB
• Cache Buffer: 64MB Host-Memory-Buffer (HMB) SLC Caching
• Flash Type: SK hynix 128-layer 4D V6-TLC NAND Flash Memory (Tri-Level Cell)
• Controller: SK Hynix in House 4-Channel Controller
• Form Factor: M.2 2230-S3-M (M Key Single Sided)
• Interface Speed: PCIe NVMe Generation 3.0 x4 (up to 4 Lanes)
• Interface Connector: M.2 NGFF (M Key)
• Max Sequential Read: up to 2,850 MB/sec (Queues = 32, Threads = 1)
• Max Sequential Write: up to 1,400 MB/sec (Queues = 32, Threads = 1)
• 4K Random Read: up to 285,000 IOPS (Queues = 32, Threads = 8)
• 4K Random Write: up to 285,000 IOPS (Queues = 32, Threads = 8)
• SSD Endurance: 300 TBW (Total Bytes Written)
• Life Expectancy: 1.5 Million Hours (MTBF Mean Time Between Failures)
• Shock Resistance: 1,500G @0.5 ms half sine, 3 pulses per face
• ECC Recovery: Low-Density Parity Check (LDPC) Error Correction Technology
• Encryption: TCG Pyrite 2.0; ATA Security Passthrough over NVMe
• Rohs Compliant: Yes
• Dimensions (L x W x H): 30.0mm x 22.0mm x 2.38mm
• Power Consumption Active Read: up to 3.5W
• Power Consumption Active Write: up to 3.5W
• Power Consumption Host Idle: 50mW
• Classification: Mid Level Drive
