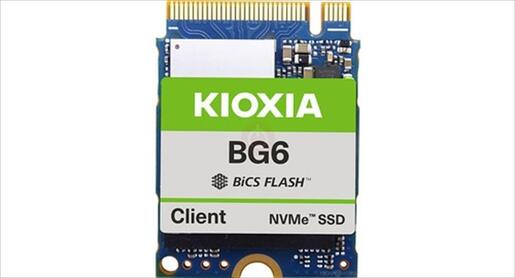

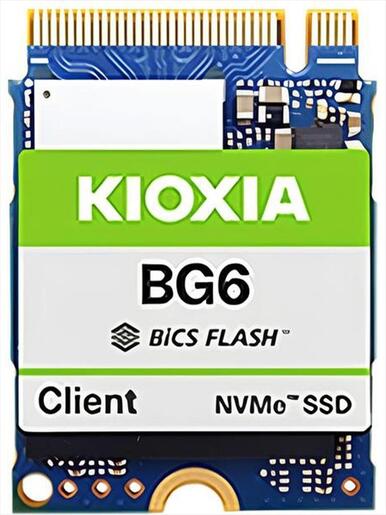

SSD M.2 512GB KIOXIA BG6 (2230) NVMe Gen4 KBG60ZNS512GID EK000752071

Model name: KIOXIA BG6

Specifications:

• Capacity: 512 GB
• Form Factor: M.2 2230-S2 Single-sided
• Interface: PCIe® 4.0, NVMe™ 1.4c
• Maximum Interface Speed: 64 GT/s (PCIe® Gen4 x4)
• Flash Memory Type: BiCS FLASH™ TLC
• Sequential Read: 4,800 MB/s
• Sequential Write: 4,000 MB/s
• Random Read: 650K IOPS
• Random Write: 850K IOPS
• Supply Voltage: 3.3 V ± 5 %
• Power Consumption (Active): 4.7 W typ.
• Power Consumption (L1.2 mode): 3.0 mW typ.
• MTTF: 1,500,000 hours
• TBW: 300
• Temperature (Operating - Controller): 0 ℃ to 95 ℃
• Temperature (Operating - Other Components): 0 ℃ to 85 ℃
• Temperature (Non-operating): -40 ℃ to 85 ℃
• Humidity (Operating): 0 % to 90 % R.H.
• Vibration (Operating): 196 m/s² {20 Grms} (20 to 2,000 Hz)
• Shock (Operating): 14.7 km/s² {1,500 G} (0.5 ms)
