MB 1150 H81MHV3 BIOSTAR 2xDDR3 1600Mhz, PCIex16, PCIex1,2xSATA III, 2xSATAII, 4xUSB 2.0, 2xUSB 3.0, HDMI, VGA, COM port headerID EK000696239

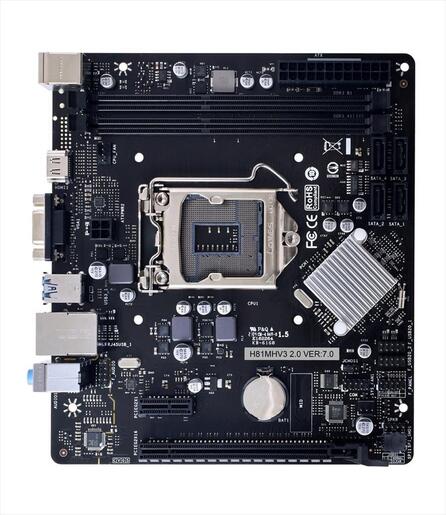

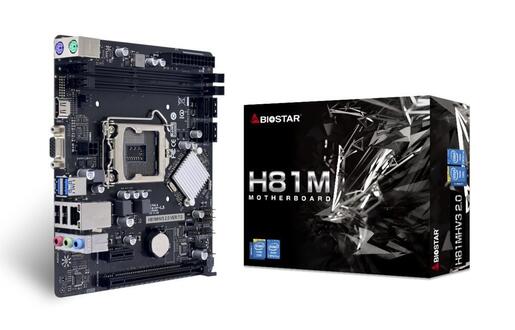

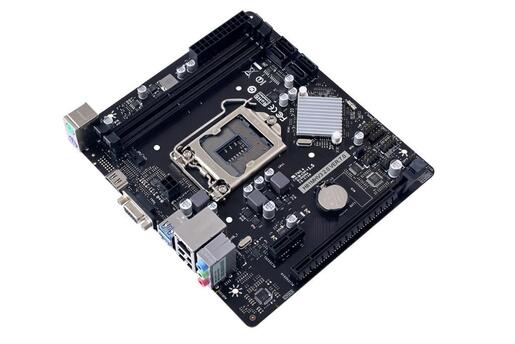

Model Name: BIOSTAR H81MHV3

Specification

• Chipset: Intel H81
• CPU Support:
  • Intel® Core™ i7 LGA 1150 Processor
  • Intel® Core™ i5 LGA 1150 Processor
  • Intel® Core™ i3 LGA 1150 Processor
  • Intel® Pentium® LGA 1150 Processor
  • Maximum CPU TDP (Thermal Design Power): 95Watt
• Memory:
  • Support Dual Channel DDR3 1600/1333/1066 MHz
  • 2 x DDR3 DIMM Memory Slot
  • Max. Supports up to 16GB Memory
• Integrated Video:
  • By CPU model
  • Supports DX11.1
• Storage:
  • 2 x SATA III Connectors (6Gb/s)
  • 2 x SATA II Connectors (3Gb/s)
• LAN: Realtek RTL8111G - 10/100/1000Mb/s Controller
• Audio Codec: Realtek ALC662 6-Channel HD Audio
• USB:
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Header
• Expansion Slots:
  • 1 x PCI-E 2.0 x16 Slot
  • 1 x PCI-E 2.0 x1 Slot

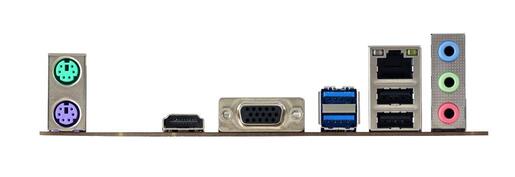

• Rear I/O:
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x VGA Port
  • 1 x LAN Port
  • 3 x Audio Jacks
• Internal I/O:
  • 2 x USB 2.0 Header
  • 2 x SATA III Connector (6Gb/s)
  • 2 x SATA II Connector (3Gb/s)
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CPU Fan Connector
  • 1 x System Fan Connector
  • 1 x COM Port Header
• H/W Monitoring:
  • CPU / System Temperature Monitoring
  • CPU / System Fan Monitoring
  • Smart / Manual CPU Fan Control
  • System Voltage Monitoring
• Dimension: Micro ATX Form Factor Dimension: 19cm x 17cm (W x L)
• OS Support: Supports Windows 7 / 8 / 8.1 / 10 (x64)
• Bundle Software:
  • BIO-Remote2
  • Smart Speed LAN
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide
• Features:
  • Supports Solid capacitor
  • Supports Charger Booster
  • Supports BIOS Online Update
