MB 1151 TB360-BTC PRO 2.0 BIOSTAR 2xDDR4 2666Mhz, VGA, HDMI, PCIex16, 11xPCIex1, M.2, 4xSATA, GbLanID EK000737473

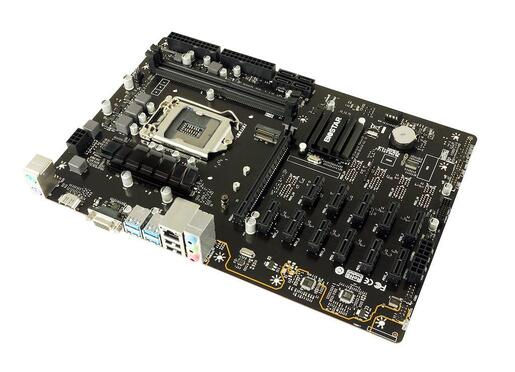

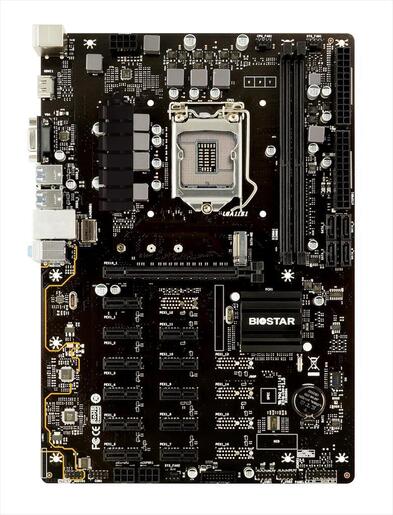

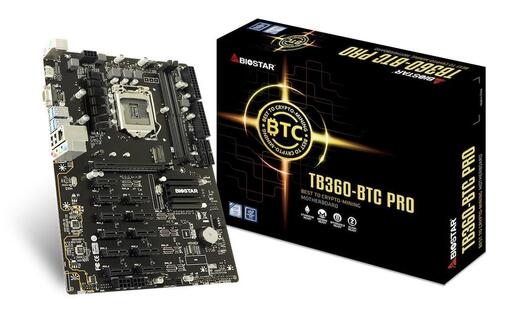

Model name: BIOSTAR TB360-BTC PRO

Specifications:

• Chipset: Intel B360
• CPU Support:
  • 9th Gen Intel® Core™ i9/i7/i5/i3 LGA 1151 Processor
  • 8th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron® LGA 1151 Processor
  • Maximum CPU TDP: 95W
  • 8th Gen Intel® Core™ Processor Family supports only 300-Series
• Memory:
  • Dual Channel DDR4 1866/2133/2400/2666 MHz
  • 2 x DDR4 DIMM Slots, Max 32GB
  • Supports non-ECC 4/8/16GB DDR4 modules
• Integrated Video:
  • Depends on CPU model
  • Supports DX12 and HDCP
• Storage:
  • 4 x SATA III (6Gb/s)
  • 1 x M.2 (M Key) Connector (6Gb/s), supports SATA SSD
  • * Specifications vary by CPU types
• LAN: Realtek RTL8111H 10/100/1000Mb/s with Super LAN Surge Protection
• Audio Codec: Realtek ALC887 8-Channel HD Audio
• USB:
  • 6 x USB 3.1 Gen1 (4 rear, 2 internal)
  • 6 x USB 2.0 (2 rear, 4 internal)
• Expansion Slots:
  • 1 x PCI-E 3.0 x16
  • 1 x PCI-E 3.0 x1
  • * Max VGA card mining support depends on driver/software

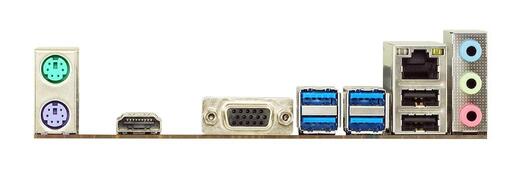

• Rear I/O:
  • 1 x PS/2 Mouse, 1 x PS/2 Keyboard
  • 4 x USB 3.1 Gen1, 2 x USB 2.0
  • 1 x HDMI (up to 4096x2160@24Hz, HDMI 1.4)
  • 1 x VGA (up to 1920x1200@60Hz)
  • 1 x LAN Port
  • 3 x Audio Jacks
• Internal I/O:
  • 1 x USB 3.1 Gen1 Header (supports 2 ports)
  • 2 x USB 2.0 Headers (supports 4 ports)
  • 4 x SATA III
  • 1 x Front Audio, 1 x Front Panel
  • 1 x CPU Fan, 2 x System Fan
  • 1 x 8-Pin Power, 2 x 6-Pin PCIe Power, 2 x 24-Pin Power
  • 1 x Clear CMOS, 1 x COM Port Header
• H/W Monitoring:
  • CPU/System Temp Monitoring
  • CPU/System Fan Monitoring
  • Smart/Manual CPU Fan Control
  • System Voltage Monitoring
• Dimension: ATX Form Factor (30.5cm x 21.0cm)
• OS Support: Windows 10 (64-bit), Windows 11 (64-bit)
