MB 1155 H61MHV2 BIOSTAR, 2xDDR3 1600MHz, VGA, HDMI, 1xPCIex16, 1xPCIex1, 4xSATAII, 4xUSB2.0ID EK000696428

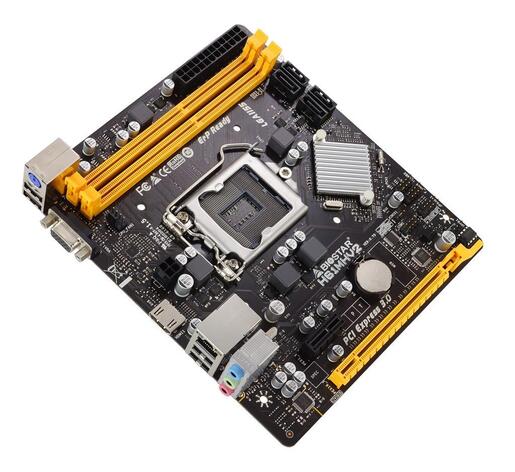

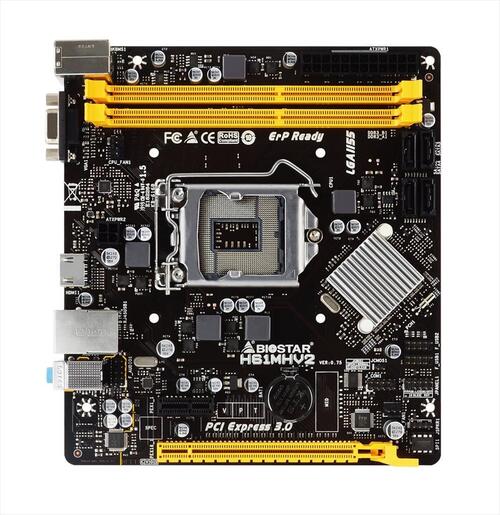

Model Name: BIOSTAR H61MHV2

Specification

• Chipset: Intel H61
• CPU Support:
  • Intel® Core™ i7 LGA 1155 Processor
  • Intel® Core™ i5 LGA 1155 Processor
  • Intel® Core™ i3 LGA 1155 Processor
  • Intel® Pentium® LGA 1155 Processor
  • Intel® Celeron® LGA 1155 Processor
• Memory:
  • Support Dual Channel DDR3 1600/1333/1066 MHz
  • 2 x DDR3 DIMM Memory Slots
  • Max. Supports up to 16GB Memory
• Integrated Video: By CPU model
• Storage:
  • 4 x SATA II Connectors (3Gb/s)
• LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller
• Audio Codec: Realtek ALC662 5.1-Channel HD Audio
• USB:
  • 8 x USB 2.0 Ports (4 on rear I/Os and 4 via internal headers)
• Expansion Slots:
  • 1 x PCI-E 3.0 x16 Slot (supported by Core i5 -3xxx / Core i7 3xxx CPU)
  • 1 x PCI-E 2.0 x1 Slot

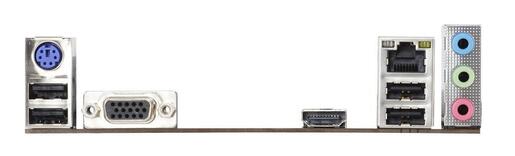

• Rear I/O:
  • 1 x PS/2 Keyboard Port
  • 4 x USB 2.0 Ports
  • 1 x HDMI Port
  • 1 x VGA Port
  • 1 x LAN Port
  • 3 x Audio Jacks
• Internal I/O:
  • 1 x Chassis Speaker Connector
  • 1 x Clear CMOS header
  • 1 x Power Connector (24pin)
  • 1 x Power Connector (4pin)
  • 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
  • 4 x SATA II 3Gb/s Connectors
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CPU Fan Connector
  • 1 x System Fan Connector
  • 1 x COM Port Header
• H/W Monitoring:
  • CPU / System Temperature Monitoring
  • CPU / System Fan Monitoring
  • Smart / Manual CPU Fan Control
  • System Voltage Monitoring
• Dimension: Micro ATX Form Factor Dimension: 17cm x 19.1cm (W x L)
• OS Support: Supports Windows XP / Vista / 7/ 8/ 8.1/ 10
• Bundle Software: BIO-Remote2
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide
• Features:
  • BIO-FLASHER
  • Supports Charger Booster
