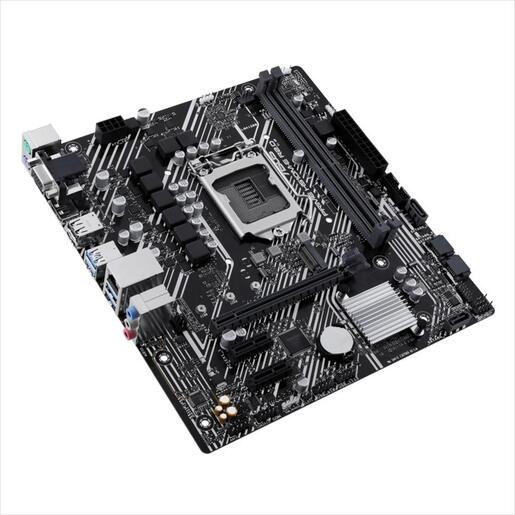

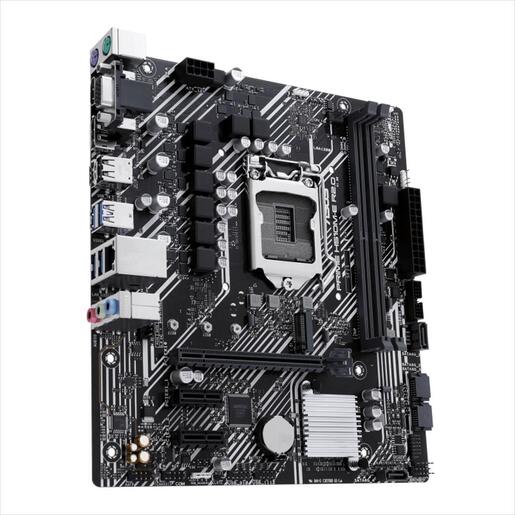

MB 1200 H510M-E R2.0 PRIME ASUS, 2xDDR4 3200MHz, DP,HDMI,VGA PCIex16 4.0, 2xPCIex1, 4xSATAIII, 1xM.2, COM & RGB Header, 90MB1FQ0-M0EAY0ID EK000786574

Model name: ASUS H510M-E R2.0 PRIME

Specifications:

• CPU:
  • Intel® Socket LGA1200 for 11th & 10th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and 3.0
• Chipset: Intel® H470 Chipset
• Memory:
  • 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • 10th Gen Intel® Core™ i7/i9 support up to DDR4 2933; others up to 2666
  • 11th Gen Intel® Core™ processors support DDR4 3200(OC) and lower
• Graphics:
  • 1 x DisplayPort 1.4 (max 4096 x 2304 @60Hz)
  • 1 x VGA
  • 1 x HDMI™ 2.1
  • Graphics specifications may vary between CPU types
• Expansion Slots:
  • 1 x PCIe 4.0/3.0 x16 slot
    • Intel® 11th Gen: PCIe 4.0 x16
    • Intel® 10th Gen: PCIe 3.0 x16
  • 2 x PCIe 3.0 x1 slots (H470 Chipset)
• Storage:
  • 1 x M.2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 1Gb Ethernet
• USB:
  • Rear USB (6 ports): 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
  • Front USB (6 ports): 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Up to 24-Bit/192 kHz playback
  • Audio Shielding, Premium Capacitors, Dedicated Audio PCB layers
• Back Panel I/O Ports:
  • 4 x USB 3.2 Gen 1 (Type-A)
  • 2 x USB 2.0 (Type-A)
  • 1 x DisplayPort, 1 x VGA, 1 x HDMI™
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard port, 1 x PS/2 Mouse port
• Internal I/O Connectors:
  • 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header
  • 1 x 24-pin Main Power connector, 1 x 8-pin +12V connector
  • 1 x M.2 slot, 4 x SATA 6Gb/s ports
  • 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
  • 2 x AURA Addressable Gen 2 headers, 2 x AURA RGB headers
  • 1 x Clear CMOS, COM, Front Audio, S/PDIF Out, Speaker, SPI TPM, System Panel header
• Special Features:
  • ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel I/O
  • ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot
  • Thermal Solution: Aluminum heatsink design
  • AURA Sync: AURA RGB & Addressable Gen 2 headers
• Software Features:
  • Armoury Crate, AURA Creator, AURA Sync
  • AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, EZ Update)
  • ASUS CPU-Z, Norton 360 Deluxe (60 Days), WinRAR
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 10 64-bit
• Form Factor: mATX (22.6 cm x 21.1 cm)
