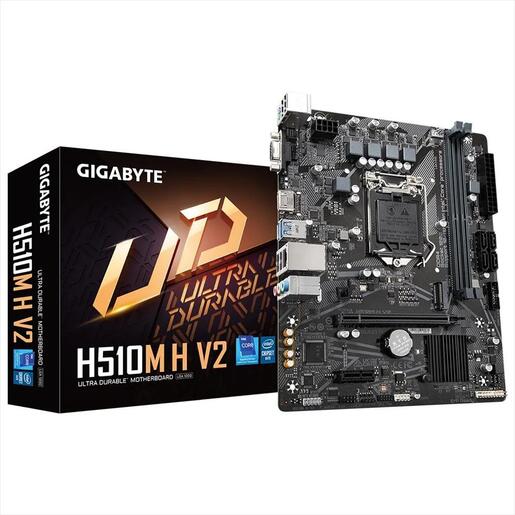

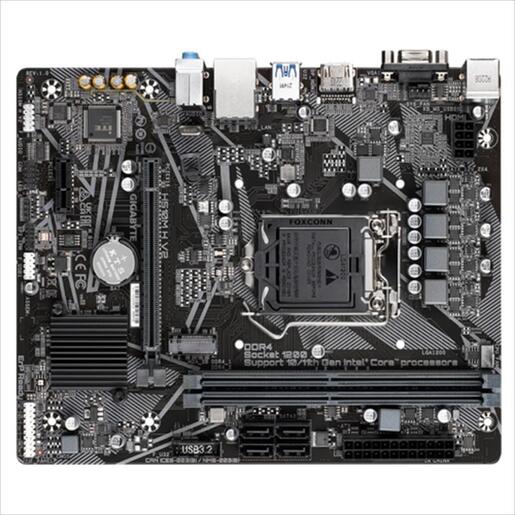

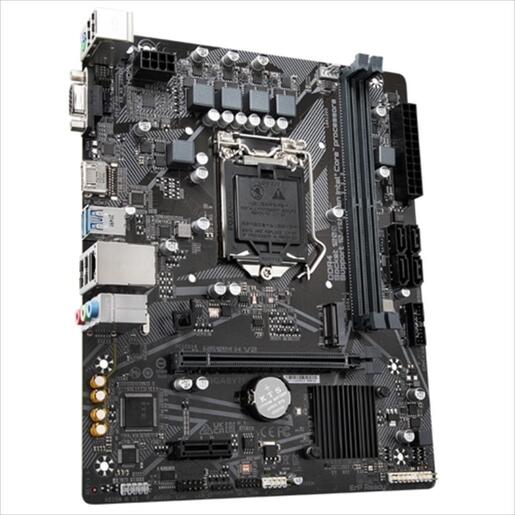

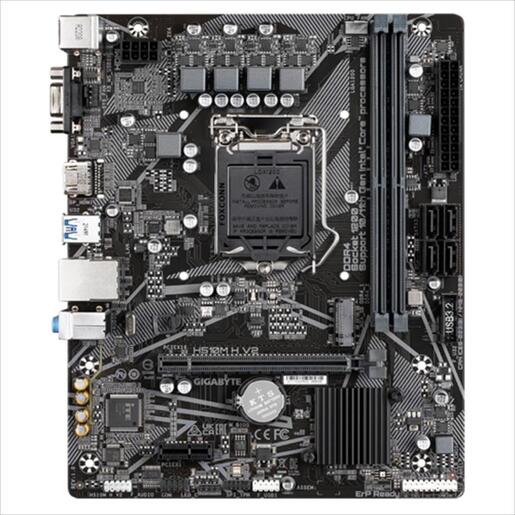

MB 1200 H510M H V2 GIGABYTE, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, M.2, 4xUSB 3.2 Gen1, 6xUSB 2.0, 7.1 ChannelsID EK000697027

Model Name: GIGABYTE H510M H V2

Specification

• CPU: LGA1200 package: 11th Generation Intel® Core™ i9/i7/i5 processors, 10th Generation Intel® Core™ i9/i7/i5/i3 processors, Intel® Pentium®/Celeron® processors
• Chipset: Intel® H470 Express Chipset
• Memory: 11th Gen Intel® Core™ i9/i7/i5 processors: DDR4 3200/3000/2933/2666/2400/2133 MHz, 10th Gen Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz
• Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics, 1 x HDMI port, 1 x D-Sub port (10th Gen only)
• Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots: 1 x PCI Express x16 (CPU), 1 x PCI Express x1 (Chipset)
• Storage Interface: 1 x M.2 connector, 4 x SATA 6Gb/s connectors
• USB: 4 x USB 3.2 Gen 1, 6 x USB 2.0/1.1
• Internal I/O Connectors: 1 x 24-pin ATX power, 1 x 8-pin ATX 12V, 1 x CPU fan header, 1 x system fan header, 1 x RGB LED strip header

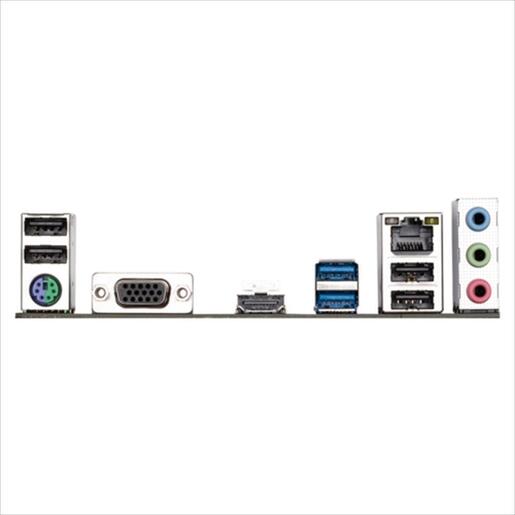

• Back Panel Connectors: 1 x PS/2 keyboard/mouse, 1 x D-Sub, 1 x HDMI, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring: Voltage, temperature, fan speed detection
• BIOS: 128 Mbit flash, licensed AMI UEFI BIOS
• Unique Features: Support for APP Center, @BIOS, Ambient LED, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install
• Bundled Software: Norton® Internet Security (OEM), LAN bandwidth management software
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: Micro ATX, 22.6cm x 18.5cm
