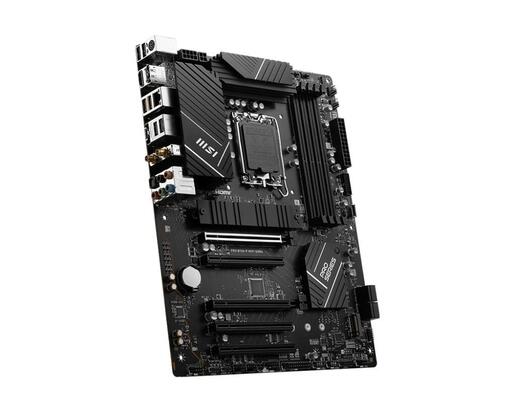

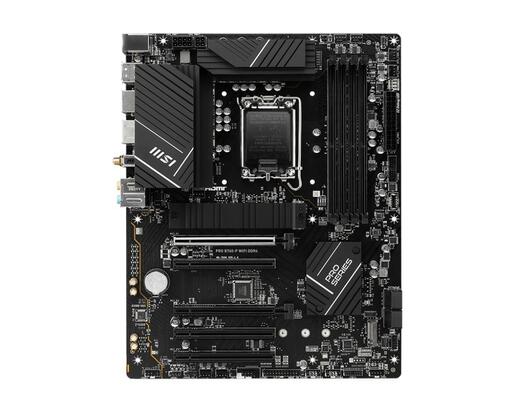

MB 1700 B760-P WIFI DDR4 MSI, 4xDDR4 5333MHz(OC), 2xM.2, HDMI, DP, PCIex16, 4xPCIex1, 4xSATAIII, USB3.2Gen1, WIFI6, 7D98-001RID EK000786662

Model name: MSI B760-P

Specifications:

• Chipset: INTEL B760
• CPU Support: Intel® Core™ 14th/13th/12th Gen, Intel® Pentium® Gold, Intel® Celeron® (Socket LGA 1700)

• Memory: 4x DDR4, up to 128GB
• Supported Frequencies: 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)
• Max Overclocking Frequency:
  • 1DPC 1R: up to 5333+ MHz
  • 1DPC 2R: up to 4800+ MHz
  • 2DPC 1R: up to 4400+ MHz
  • 2DPC 2R: up to 4000+ MHz
• Memory Features: Dual-Channel, non-ECC, un-buffered, Intel® XMP support

• Onboard Graphics:
  • 1x HDMI™ 2.1, up to 4K @ 60Hz
  • 1x DisplayPort 1.4, up to 4K @ 60Hz

• Expansion Slots: 5x PCIe x16
  • PCI_E1: PCIe 4.0 x16 (CPU)
  • PCI_E2: PCIe 3.0 x1 (Chipset)
  • PCI_E3: PCIe 4.0 x4 (Chipset)
  • PCI_E4: PCIe 3.0 x1 (Chipset)
  • PCI_E5: PCIe 3.0 x1 (Chipset)

• Audio: Realtek® ALC897 Codec, 7.1-Channel HD Audio, S/PDIF output

• Storage:
  • 2x M.2
    • M.2_1 (CPU): PCIe 4.0 x4, 22110/2280/2260/2242
    • M.2_2 (Chipset): PCIe 4.0 x4 / SATA, 2280/2260/2242
  • 4x SATA 6G
• RAID: RAID 0, 1, 5, 10 (SATA devices)

• USB:
  • Rear: 4x USB 2.0, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
  • Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

• LAN: Realtek® RTL8125BG 2.5G LAN

• Internal I/O:
  • 1x ATX_PWR, 2x CPU_PWR
  • 1x CPU Fan, 1x Pump Fan, 5x System Fan
  • 2x Front Panel (JFP), 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x COM Port (JCOM)
  • 2x Addressable V2 RGB LED (JARGB_V2), 1x RGB LED (JRGB)
  • 1x TPM header (TPM 2.0 support)
  • 4x USB 2.0 ports, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

• Wireless LAN & Bluetooth: Intel® Wi-Fi 6E (2.4/5/6GHz, up to 2.4Gbps, MU-MIMO, pre-installed) + Bluetooth® 5.3

• LED Feature: 4x EZ Debug LED

• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
