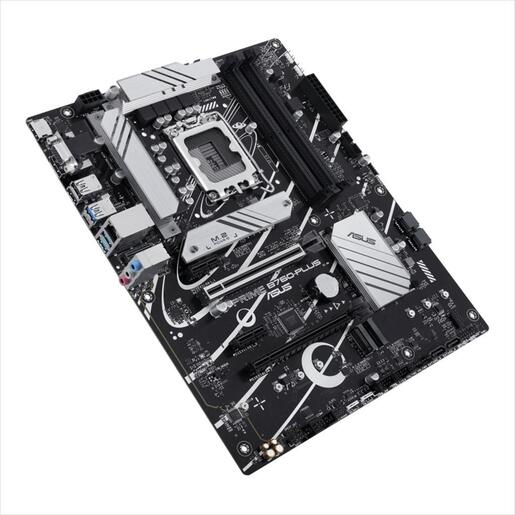

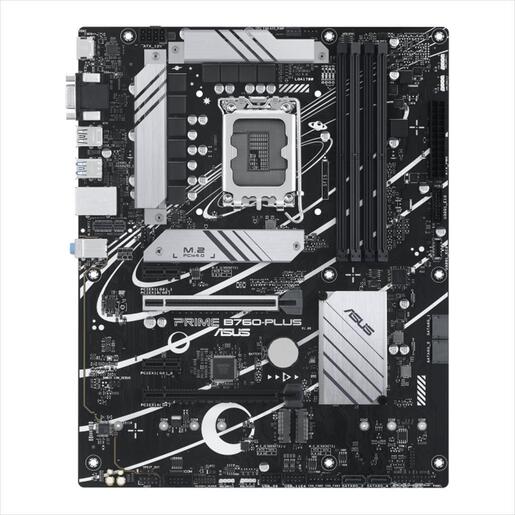

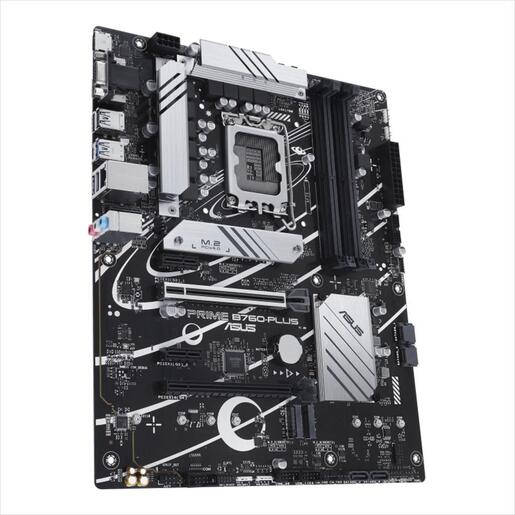

MB 1700 B760 PRIME PLUS ASUS DDR5, 4xDDR5 7200MHz(OC), 3xM.2, VGA, HDMI, DP, PCIex16 5.0, PCIex4, PCIex1, 4xSATAIII,2.5Gb LAN, 90MB1EF0-M0EAY0ID EK000798338

Model Name: ASUS B760 PRIME PLUS ASUS DDR5

Specification

• CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Chipset: Intel® B760 Chipset
• Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Graphics: 1 x DisplayPort**, 1 x VGA port, 1 x HDMI™ port***
• Expansion Slots: Intel® Core™ Processors (14th & 13th & 12th Gen), 1 x PCIe 5.0 x16 slot
• Storage: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth: Vertical M.2 slot only (Key E, CNVi & PCIe)*
• USB: Rear USB (Total 6 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*

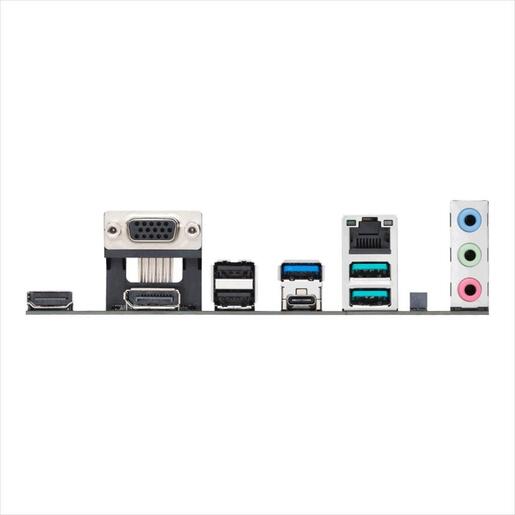

• Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• Internal I/O Connectors: Fan and Cooling related, 1 x 4-pin CPU Fan header
• Special Features: ASUS 5X PROTECTION III, DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
• Software Features: ASUS Exclusive Software, Armoury Crate
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor: ATX Form Factor, 30.5 cm x 24.4 cm
