MB 1700 B760 PRIME PLUS D4 ASUS DDR4, 4xDDR4 5066MHz(OC),3xM.2,VGA,HDMI,DP, PCIex16 5.0, PCIex4, 2xPCIex1, 4xSATAIII,2.5Gb LAN, 90MB1CW0-M1EAY0ID EK000696093

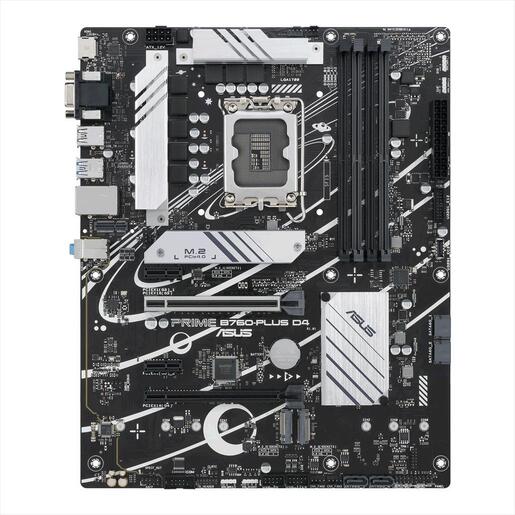

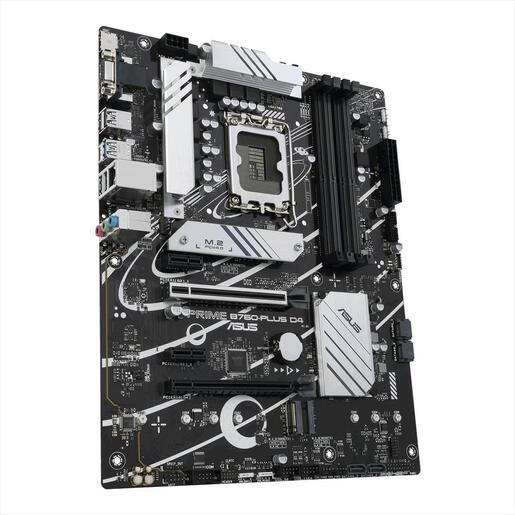

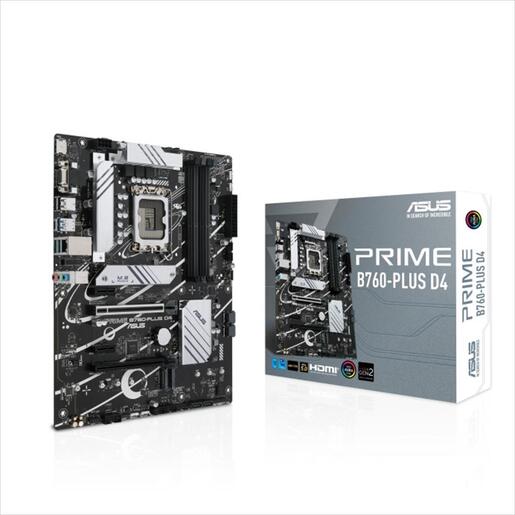

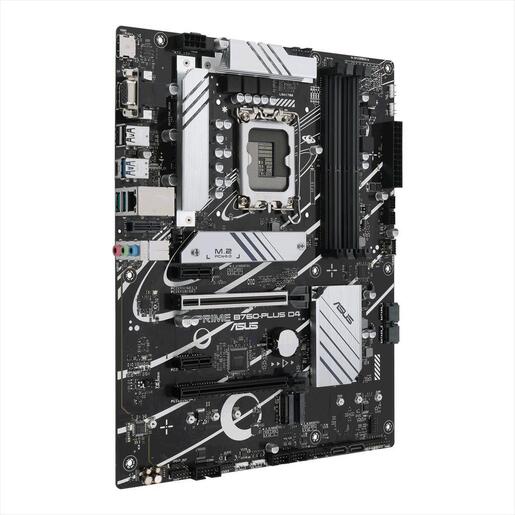

Model Name: ASUS B760 PRIME PLUS D4

Specification :

• CPU:
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  • Intel® Turbo Boost Max Technology 3.0 support depends on CPU types
• Chipset: Intel® B760 Chipset
• Memory:
  • 4 x DIMM, Max. 128GB
  • DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem
• Graphics:
  • 1 x DisplayPort**
  • 1 x VGA port
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types.
  • ** Supports max. 4K@60Hz as specified in Display
• Expansion Slots:
  • Intel® Core™ Processors (14th, 13th, 12th Gen): 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset:
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)
    • 2 x PCIe 3.0 x1 slots
• Storage:
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Processors (14th, 13th, 12th Gen): 1 x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset:
    • 1 x M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • 1 x M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
    • 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth: Vertical M.2 slot only (Key E, CNVi & PCIe)*
• USB Ports:
  • Rear (Total 6 ports):
    • 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
    • 2 x USB 3.2 Gen 2 ports (Type-A)
    • 1 x USB 3.2 Gen 1 port (Type-A)
    • 2 x USB 2.0 ports (Type-A)
  • Front (Total 7 ports):
    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
    • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

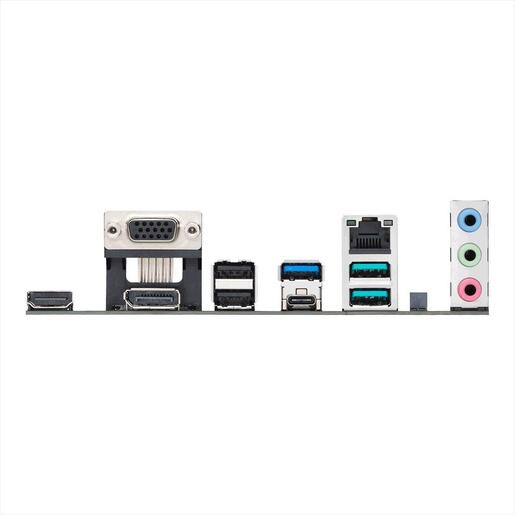

• Back Panel I/O Ports:
  • 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (Type-A)
  • 1 x USB 3.2 Gen 1 port (Type-A)
  • 2 x USB 2.0 ports (Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
  • 1 x Vertical M.2 slot (Key E)
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
• Internal I/O Connectors:
  • Fan and Cooling related:
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin AIO Pump header
    • 3 x 4-pin Chassis Fan headers
  • Power related:
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage related:
    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB:
    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
    • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
  • Miscellaneous:
    • 3 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x SPI TPM header (14-1 pin)
    • 1 x 20-3 pin System Panel header with Chassis intrude function
    • 1 x Thunderbolt™ (USB4®) header
• Special Features:
  • ASUS 5X PROTECTION III:
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core+
    • Stainless-Steel Back I/O
  • ASUS Q-Design:
    • Q-DIMM
    • Q-LED Core
    • Q-Slot
  • ASUS Thermal Solution:
    • M.2 heatsink
    • VRM heatsink design
  • ASUS EZ DIY:
    • ProCool
  • Aura Sync:
    • Aura RGB header
    • Addressable Gen 2 headers
• Software Features:
  • ASUS Exclusive Software:
    • Armoury Crate
      • Aura Creator
      • Aura Sync
      • Fan Xpert 2+
      • Power Saving
    • AI Suite 3
      • DIGI+ VRM
      • PC Cleaner
    • ASUS CPU-Z
    • Norton 360 Deluxe (60 Days Free Trial)
    • WinRAR
  • UEFI BIOS:
    • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Accessories:
  • Cables: 2 x SATA 6Gb/s cables
  • Miscellaneous:
    • 1 x I/O Shield
    • 1 x M.2 Rubber Package
    • 2 x Screw Packages for M.2 SSD
  • Documentation: 1 x User guide
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor: ATX Form Factor (30.5 cm x 24.4 cm)
