MB 1700 B760M-K PRIME ASUS D4, 2xDDR4 5333MHz(OC), 2xM.2 4.0, VGA, HDMI, PCIex16 4.0, 2xPCIex1, 4xSATAIII,2.5Gb LAN, 90MB1DS0-M0EAY0ID EK000697122

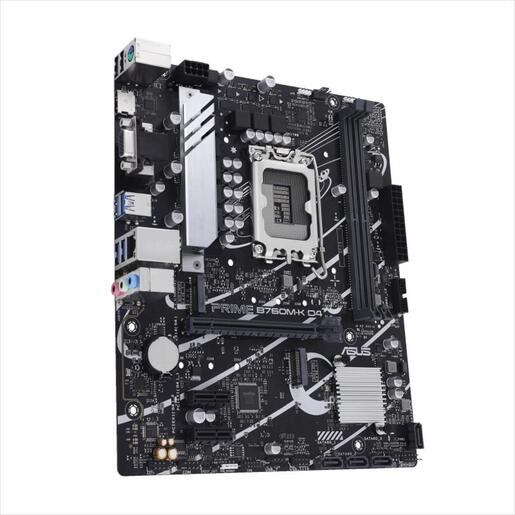

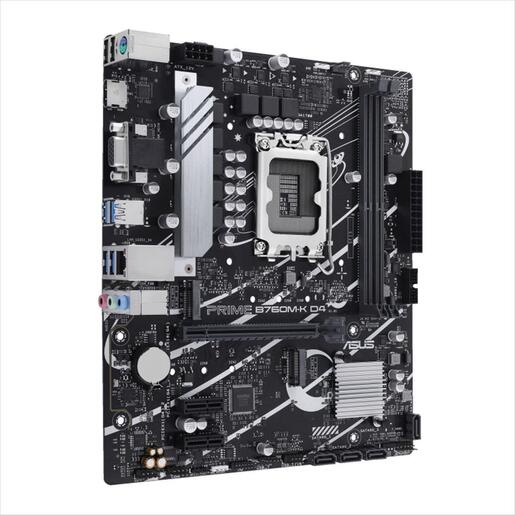

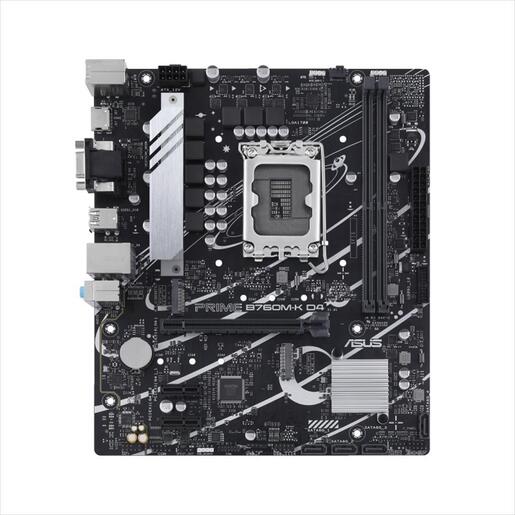

Model Name: ASUS B760M-K D4 PRIME

Specification

_x000D_
• CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  _x000D_ Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types_x000D_
_x000D_
• Chipset: Intel® B760 Chipset
_x000D_
• Memory:_x000D_
  _x000D_
  • 2 x DIMM, Max. 64GB, DDR4
  _x000D_
  • 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  _x000D_
  • Dual Channel Memory Architecture
  _x000D_
  • Supports Intel® Extreme Memory Profile (XMP)
  _x000D_
  _x000D_
_x000D_
• Graphics:_x000D_
  _x000D_
  • 1 x VGA port
  _x000D_
  • 1 x HDMI® port**
    _x000D_ * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    _x000D_ ** Supports 4K@60Hz as specified in HDMI® 2.1._x000D_
  _x000D_
  _x000D_
_x000D_
• Expansion Slots:_x000D_
  _x000D_
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  _x000D_
  • 1 x PCIe 4.0 x16 slot
  _x000D_
  • Intel® B760 Chipset
  _x000D_
  • 2 x PCIe 4.0 x1 slots
  _x000D_
  _x000D_
_x000D_
• Storage:_x000D_
  _x000D_
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  _x000D_
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  _x000D_
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  _x000D_
  • Intel® B760 Chipset
  _x000D_
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  _x000D_
  • 4 x SATA 6Gb/s ports
  _x000D_
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  _x000D_
  _x000D_
_x000D_
• Ethernet: 1 x Realtek 2.5Gb Ethernet
_x000D_
• USB:_x000D_
  _x000D_
  • Rear USB (Total 6 ports)
  _x000D_
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  _x000D_
  • 2 x USB 2.0 ports (2 x Type-A)
  _x000D_
  • Front USB (Total 5 ports)
  _x000D_
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  _x000D_
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  _x000D_
  _x000D_
_x000D_
• Audio:_x000D_
  _x000D_
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  _x000D_
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  _x000D_
  • Supports up to 24-Bit/192 kHz playback
  _x000D_
  • Audio Features:_x000D_
    _x000D_
    • Audio Shielding
    _x000D_
    • Premium audio capacitors
    _x000D_
    • Dedicated audio PCB layers
    _x000D_
    _x000D_
  _x000D_
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  _x000D_
  _x000D_
_x000D_

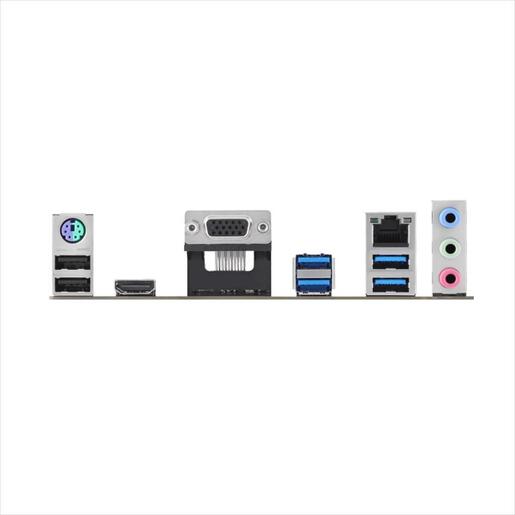

• Back Panel I/O Ports:_x000D_
  _x000D_
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  _x000D_
  • 2 x USB 2.0 ports (2 x Type-A)
  _x000D_
  • 1 x VGA port
  _x000D_
  • 1 x HDMI® port
  _x000D_
  • 1 x Realtek 2.5Gb Ethernet port
  _x000D_
  • 3 x Audio jacks
  _x000D_
  • 1 x PS/2 Keyboard/Mouse combo port
  _x000D_
  _x000D_
_x000D_
• Internal I/O Connectors:_x000D_
  _x000D_
  • Fan and Cooling related:_x000D_
    _x000D_
    • 1 x 4-pin CPU Fan header
    _x000D_
    • 1 x 4-pin Chassis Fan header
    _x000D_
    _x000D_
  _x000D_
  • Power related:_x000D_
    _x000D_
    • 1 x 24-pin Main Power connector
    _x000D_
    • 1 x 8-pin +12V Power connector
    _x000D_
    _x000D_
  _x000D_
  • Storage related:_x000D_
    _x000D_
    • 2 x M.2 slots (Key M)
    _x000D_
    • 4 x SATA 6Gb/s ports
    _x000D_
    _x000D_
  _x000D_
  • USB:_x000D_
    _x000D_
    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    _x000D_
    • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
    _x000D_
    _x000D_
  _x000D_
  • Miscellaneous:_x000D_
    _x000D_
    • 2 x Addressable Gen 2 headers
    _x000D_
    • 1 x Aura RGB header
    _x000D_
    • 1 x Clear CMOS header
    _x000D_
    • 1 x COM Port header
    _x000D_
    • 1 x Front Panel Audio header (AAFP)
    _x000D_
    • 1 x S/PDIF Out header
    _x000D_
    • 1 x Speaker header
    _x000D_
    • 1 x SPI TPM header (14-1pin)
    _x000D_
    • 1 x 10-1 pin System Panel header
    _x000D_
    _x000D_
  _x000D_
  _x000D_
_x000D_
• Special Features:_x000D_
  _x000D_
  • ASUS 5X PROTECTION III_x000D_
    _x000D_
    • DIGI+ VRM
    _x000D_
    • LANGuard
    _x000D_
    • Overvoltage Protection
    _x000D_
    • SafeSlot Core
    _x000D_
    • Stainless-Steel Back I/O
    _x000D_
    _x000D_
  _x000D_
  • ASUS Q-Design_x000D_
    _x000D_
    • Q-DIMM
    _x000D_
    • Q-LED Core
    _x000D_
    • Q-Slot
    _x000D_
    _x000D_
  _x000D_
  • ASUS EZ DIY_x000D_
    _x000D_
    • ProCool
    _x000D_
    _x000D_
  _x000D_
  • ASUS Thermal Solution_x000D_
    _x000D_
    • VRM heatsink design
    _x000D_
    _x000D_
  _x000D_
  • Aura Sync_x000D_
    _x000D_
    • Aura RGB header
    _x000D_
    • Addressable Gen 2 headers
    _x000D_
    _x000D_
  _x000D_
  _x000D_
_x000D_
• Software Features:_x000D_
  _x000D_
  • ASUS Exclusive Software
  _x000D_
  • Armoury Crate_x000D_
    _x000D_
    • Aura Sync
    _x000D_
    • Fan Xpert
    _x000D_
    • Power Saving
    _x000D_
    _x000D_
  _x000D_
  • AI Suite 3_x000D_
    _x000D_
    • DIGI+ VRM
    _x000D_
    • PC Cleaner
    _x000D_
    _x000D_
  _x000D_
  • ASUS CPU-Z
  _x000D_
  • Norton 360 Deluxe (60 Days Free Trial)
  _x000D_
  • WinRAR
  _x000D_
  • UEFI BIOS_x000D_
    _x000D_
    • ASUS EZ DIY
    _x000D_
    • ASUS CrashFree BIOS 3
    _x000D_
    • ASUS EZ Flash 3
    _x000D_
    • ASUS UEFI BIOS EZ Mode
    _x000D_
    _x000D_
  _x000D_
  _x000D_
_x000D_
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
_x000D_
• Manageability: WOL by PME, PXE
_x000D_
• Operating System: Windows® 11, Windows® 10 64-bit
_x000D_
• Form Factor: mATX Form Factor (24.4cm x 21.1cm)
