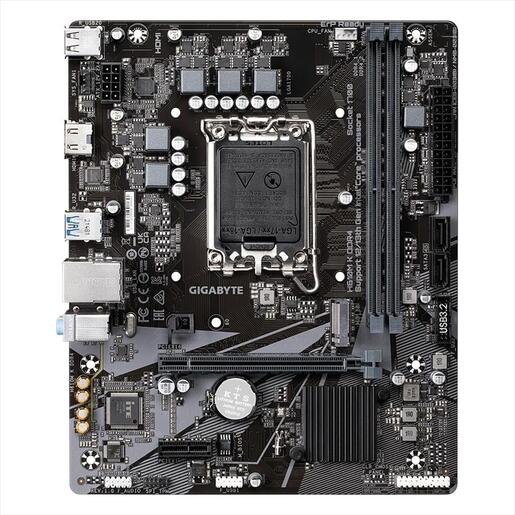

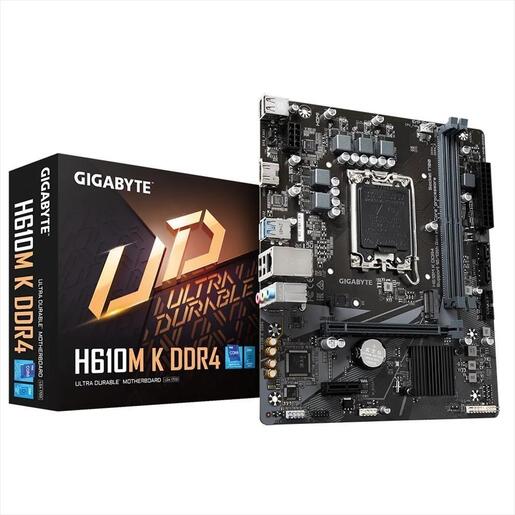

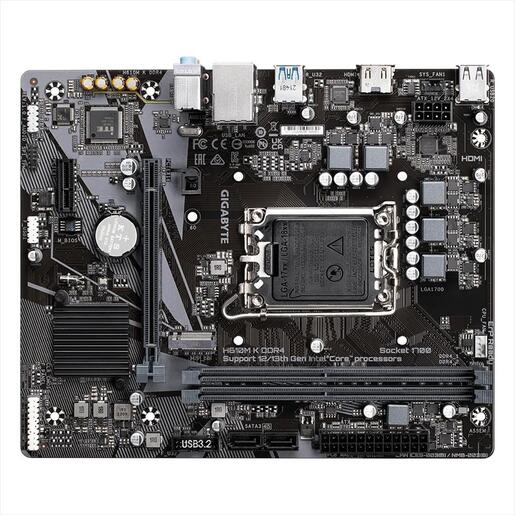

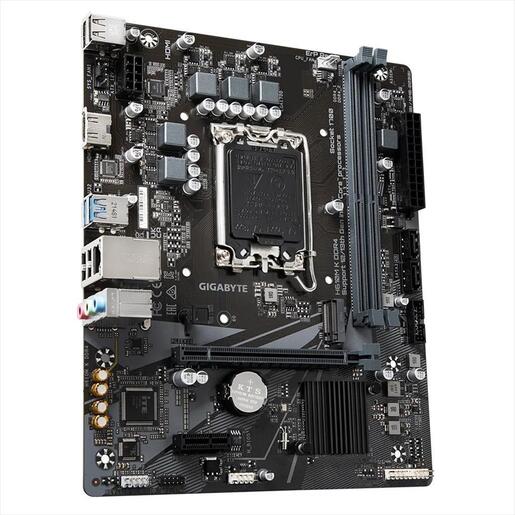

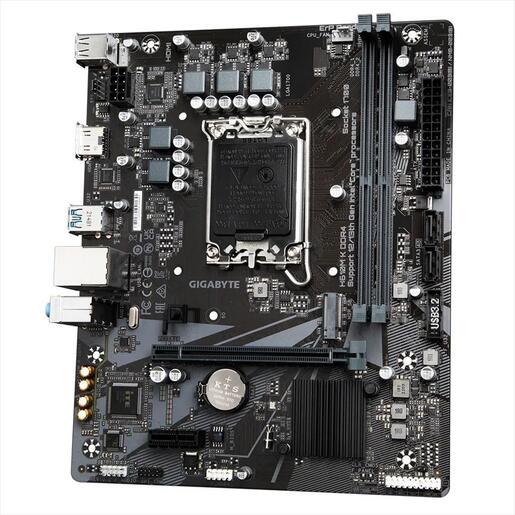

MB 1700 H610M K GIGABYTE, 2xDDR4 3200MHz, M.2, HDMI, PCIex16, PCIex1, 2xSATAIII, 4xUSB3.2Gen1,6xUSB2.0, /2ID EK000719468

Model Name: GIGABYTE H610M K

Specification

• CPU
  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  • L3 cache varies with CPU
• Chipset
  • Intel® H610 Express Chipset
• Memory
  • Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.0 version and HDCP 2.3.
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• LAN
  • Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
  • CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
  • Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  • 2 x SATA 6Gb/s connectors
• USB
  • Chipset:
    • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 2 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x Clear CMOS jumper
• Back Panel Connectors
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
    • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • @BIOS
    • EasyTune
    • Smart Backup
    • System Information Viewer
    • Support for Q-Flash
    • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Form Factor
  • Micro ATX Form Factor; 22.6cm x 18.5cm
