MB 1700 Z790 EAGLE AX GIGABYTE, 4xDDR5 7600MHz(OC),1xPCIex16 5.0, 2xPCIex16, 2xPCIeX1, 2xM.2, 4xSATAIII, HDMI, DP, 2.5GbE LAN, Intel® Wi-Fi 6EID EK000719525

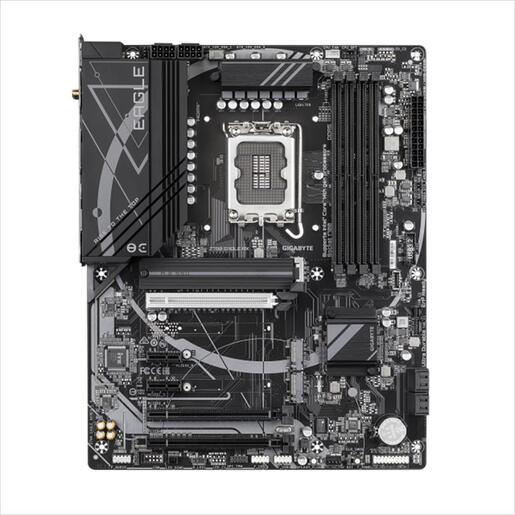

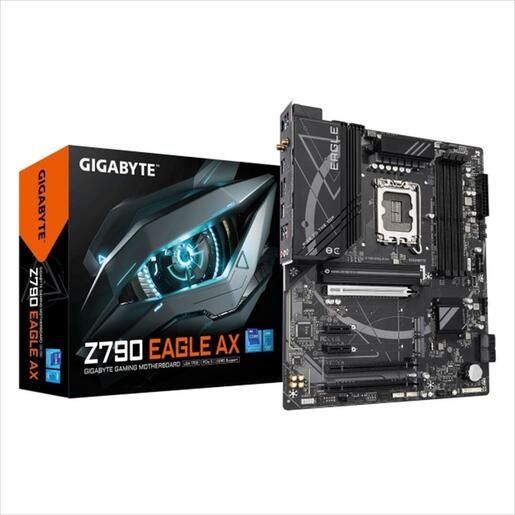

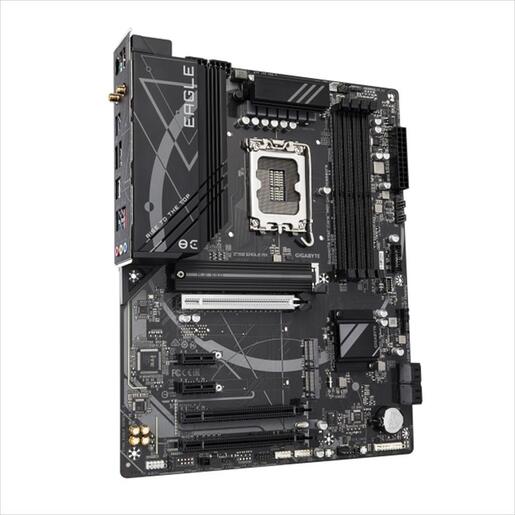

Model Name: GIGABYTE Z790 EAGLE AX

Specification :

• CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• Chipset: Intel® Z790 Express Chipset
• Memory:
  • 14th and 13th Gen i9/i7: Support for DDR5 7600(O.C.) down to 4400 MT/s
  • 13th Gen i5/i3 & 12th Gen: Support for DDR5 4800/4400 MT/s
  • Other: 4 x DDR5 DIMM sockets, up to 256 GB, dual channel, ECC/non-ECC, XMP support
• Onboard Graphics:
  • 1 x HDMI (4096x2160@60 Hz)
  • 1 x DisplayPort (4096x2304@60 Hz)
• Audio:
  • Realtek® Audio CODEC, HD Audio
  • 2/4/5.1/7.1-channel, S/PDIF Out support
• LAN: Realtek® 2.5GbE LAN chip
• Wireless Communication:
  • Intel® Wi-Fi 6E AX211: Wi-Fi a/b/g/n/ac/ax, BT 5.3
  • Realtek® Wi-Fi 6E RTL8852CE: Wi-Fi a/b/g/n/ac/ax, BT 5.3
• Expansion Slots:
  • CPU: 1 x PCIe 5.0 x16 (only GPU or NVMe)
  • Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1
• Storage Interface:
  • CPU: 1 x M.2 PCIe 4.0 x4/x2
  • Chipset: 2 x M.2 PCIe 4.0 x4/x2, 1 x M.2 SATA+PCIe, 4 x SATA 6Gb/s
  • RAID 0/1/5/10 support for NVMe & SATA
• USB:
  • Chipset: Type-C Gen2 (rear), Type-C Gen1 (internal), Type-A Gen2 (rear), 6 x Gen1, 2 x USB 2.0
  • Chipset+Hub: 4 x USB 2.0
• Internal I/O Connectors:
  • ATX power connectors, CPU/system fan headers, M.2/SATA connectors
  • Front panel, audio, USB headers, TPM, reset, Q-Flash, CMOS jumper

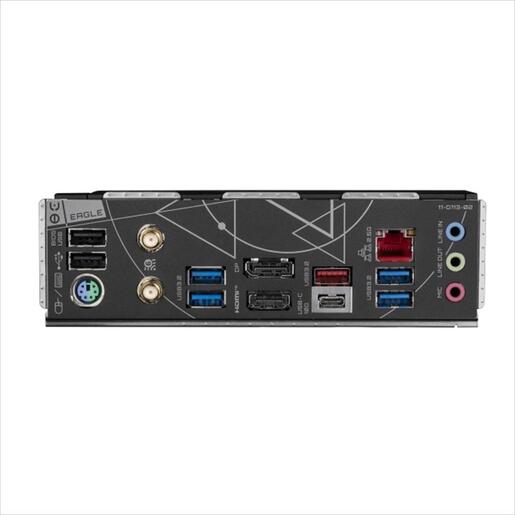

• Back Panel Connectors:
  • PS/2, USB ports, antenna connectors, HDMI, DP, RJ-45, audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring:
  • Voltage, temperature, fan speed, flow rate, fan warnings, fan control
• BIOS: 256 Mbit flash, AMI UEFI BIOS, PnP, ACPI, etc.
• Bundled Software: Norton® OEM, LAN management software
• Operating System: Windows 11/10 64-bit support
• Form Factor: ATX; 30.5cm x 24.4cm
