MB 1851 B860 EAGLE WIFI6E GIGABYTE, 4xDDR5 9066MHz(OC), PCIex16 5.0, 2xPCIex1 4.0, 3xM.2, 4xSATAIII, DP, HDMI, 2.5GbE LAN, WIFI6E, BT 5.3ID EK000697114

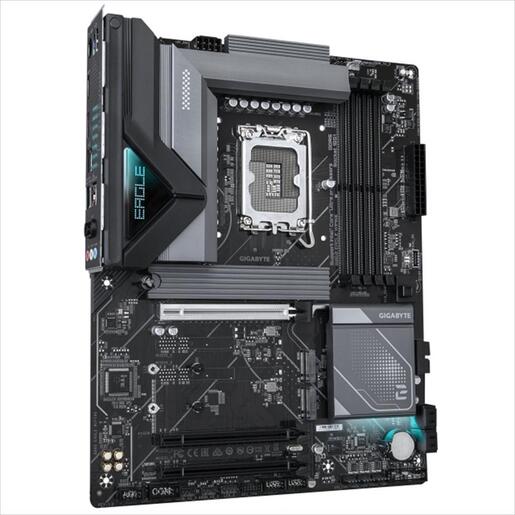

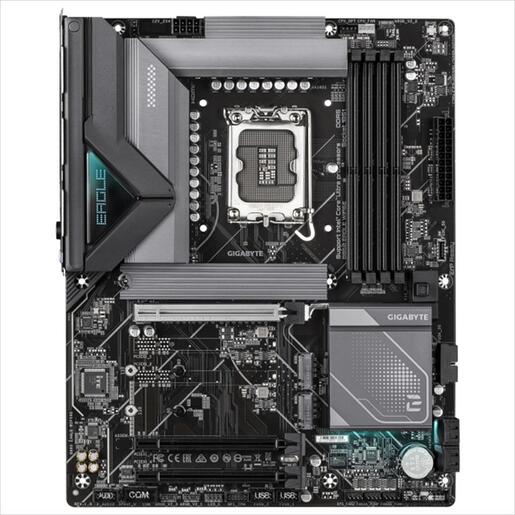

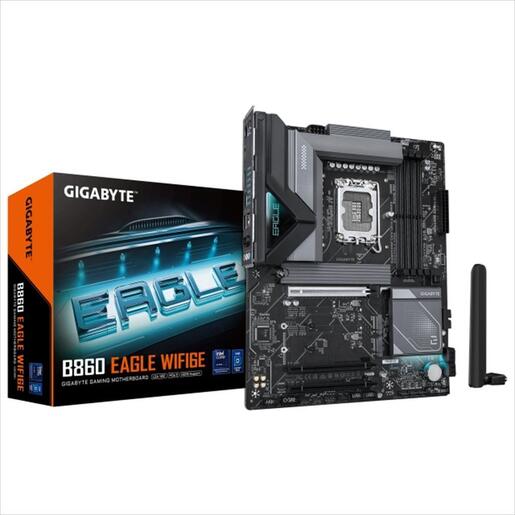

Model name: GIGABYTE B860 EAGLE WIFI6E

Specifications:

_x000D_
• CPU: LGA1851 socket: Support for Intel® Core™ Ultra Processors
_x000D_ _x000D_ _x000D_ _x000D_
• Chipset: Intel® B860 Express Chipset
_x000D_ _x000D_
• Memory: _x000D_
  _x000D_
  • Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
  _x000D_
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  _x000D_
  • Dual channel memory architecture
  _x000D_
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  _x000D_
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  _x000D_
  • Support for Extreme Memory Profile (XMP) memory modules
  _x000D_
  _x000D_
_x000D_ _x000D_
• Onboard Graphics: _x000D_
  _x000D_
  • Integrated Graphics Processor - Intel® HD Graphics support
  _x000D_
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  _x000D_
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  _x000D_
  _x000D_
_x000D_ _x000D_
• Audio: _x000D_
  _x000D_
  • Realtek® Audio CODEC
  _x000D_
  • High Definition Audio
  _x000D_
  • 2/4/5.1/7.1-channel
  _x000D_
  • Support for S/PDIF Out
  _x000D_
  _x000D_
_x000D_ _x000D_
• Wireless Communication Module: _x000D_
  _x000D_
  • Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
  _x000D_
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  _x000D_
  • BLUETOOTH 5.3
  _x000D_
  • Support for 11ax 160MHz wireless standard
  _x000D_
  • Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
  _x000D_
  _x000D_
_x000D_ _x000D_
• Expansion Slots: _x000D_
  _x000D_
  • CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  _x000D_
  • Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_3/4)
  _x000D_
  _x000D_
_x000D_ _x000D_
• Storage Interface: _x000D_
  _x000D_
  • CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
  _x000D_
  • Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support)
  _x000D_
  • 4 x SATA 6Gb/s connectors
  _x000D_
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  _x000D_
  _x000D_
_x000D_ _x000D_
• USB: _x000D_
  _x000D_
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  _x000D_
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  _x000D_
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  _x000D_
  • 2 x USB 3.2 Gen 1 ports available through the internal USB headers
  _x000D_
  • 4 x USB 2.0/1.1 ports on the back panel
  _x000D_
  _x000D_
_x000D_ _x000D_

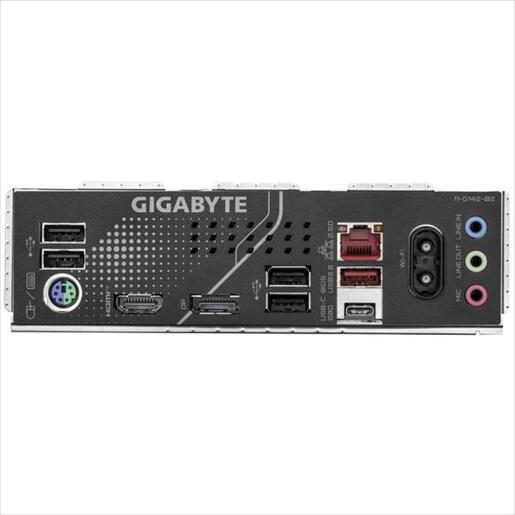

• Back Panel Connectors: _x000D_
  _x000D_
  • 1 x PS/2 keyboard/mouse port
  _x000D_
  • 1 x HDMI port
  _x000D_
  • 1 x DisplayPort
  _x000D_
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  _x000D_
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  _x000D_
  • 4 x USB 2.0/1.1 ports
  _x000D_
  • 2 x antenna connectors (2T2R)
  _x000D_
  • 1 x RJ-45 port
  _x000D_
  • 3 x audio jacks
  _x000D_
  _x000D_
_x000D_ _x000D_
• Operating System: _x000D_
  _x000D_
  • Support for Windows 11 64-bit
  _x000D_
  • Support for Windows 10 64-bit
  _x000D_
  _x000D_
_x000D_ _x000D_
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
