MB 1851 B860M EAGLE GIGABYTE, 4xDDR5 9066MHz(OC), PCIex16 5.0, PCIex1 4.0, 2xM.2, 4xSATAIII, DP, HDMI, 2.5GbE LANID EK000719536

Model Name: GIGABYTE B860M EAGLE

Specification :

• CPU
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • L3 cache varies with CPU
• Chipset
  • Intel® B860 Express Chipset
• Memory
  • Supports DDR5 up to 9066(O.C)
  • 2 x DDR5 DIMM sockets, up to 128 GB
  • Dual channel architecture
  • ECC and non-ECC Un-buffered DIMMs
  • Support for XMP memory modules
• Onboard Graphics
  • Intel® HD Graphics
  • 1 x HDMI: 4096x2160@60Hz
  • 1 x DisplayPort: 3840x2160@144Hz
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio (2/4/5.1/7.1-channel)
  • Support for S/PDIF Out
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  • CPU: 1 x PCIe 5.0 x16 (PCIEX16)
  • Chipset: 1 x PCIe 4.0 x4 (PCIEX4)
• Storage Interface
  • CPU: 1 x M.2 (PCIe 5.0 x4/x2, M2A_CPU)
  • Chipset: 1 x M.2 (PCIe 4.0 x4/x2, M2P_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0/1/5/10 for SATA
• USB
  • Chipset:
    • 1 x USB-C (USB 3.2 Gen 1, internal header)
    • 5 x USB 3.2 Gen 1 (3 rear, 2 internal)
    • 3 x USB 2.0/1.1 (rear)
  • Chipset + USB 2.0 Hub:
    • 4 x USB 2.0/1.1 (internal)
• Internal I/O Connectors
  • 1 x 24-pin ATX power
  • 1 x 8-pin CPU power
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • Fan, RGB, and pump headers
  • Front panel/audio/SPDIF headers
  • USB headers (Type-C, 3.2, 2.0)
  • TPM, serial, Q-Flash Plus, reset, Clear CMOS

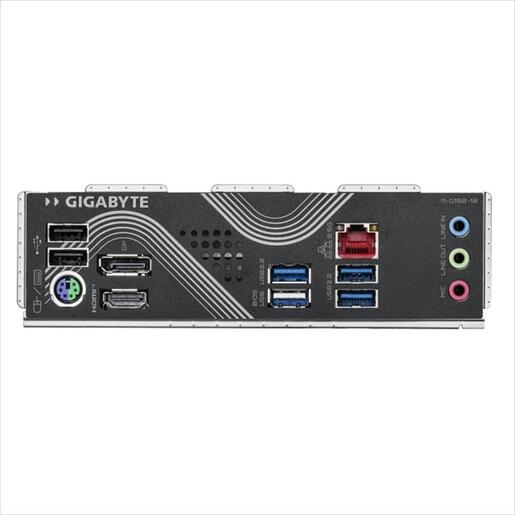

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1
  • 3 x USB 2.0/1.1
  • 1 x RJ-45 LAN
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• Hardware Monitoring
  • Voltage, temperature, fan and water flow detection
  • Fan fail warning and speed control
• BIOS
  • 256 Mbit flash, AMI UEFI BIOS
  • Supports ACPI 5.0, DMI 2.7
• Bundled Software
  • Norton® Internet Security (OEM)
  • LAN bandwidth management
• Operating System
  • Windows 11 64-bit
  • Windows 10 64-bit
• Form Factor
  • Micro ATX, 24.4cm x 22.5cm
