MB 1851 B860M-H2 ASROCK, 2xDDR5 8333MHz(OC), PCIex16 4.0, 2xPCIex1 4.0, 2xM.2, 4xSATAIII, 2xHDMIID EK000786702

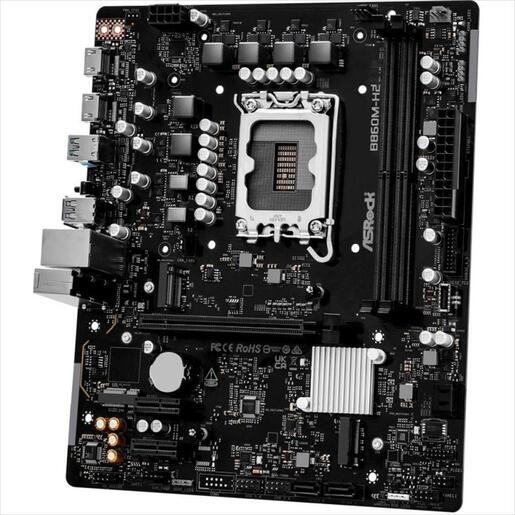

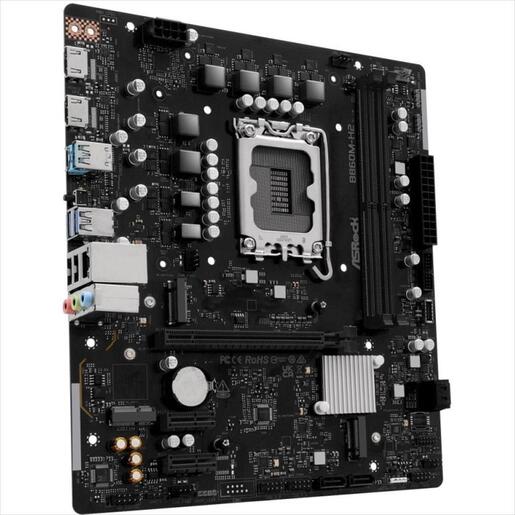

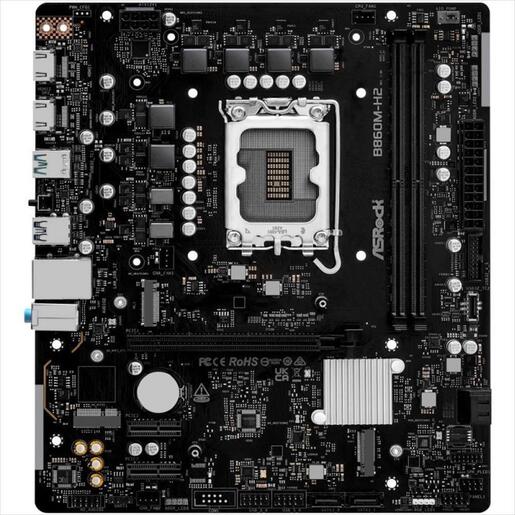

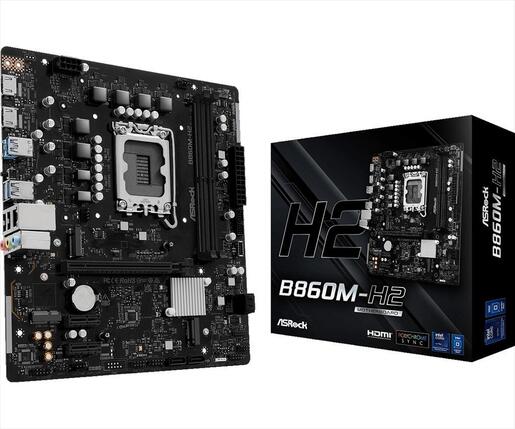

Model name: ASROCK B860M-H2

Specifications:

• CPU:
  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
• Chipset: Intel® B860
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)*
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Intel® Xe LPG Graphics Architecture
  • 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN:
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
• Slots:
  • CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset:
    • 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Storage:
  • CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  • Chipset: 1 x Hyper M.2 Socket (M2_2, Key M)
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB:
  • CPU: 1 x USB 3.2 Gen2x2 Type-C (Rear)
  • Chipset:
    • 1 x USB 3.2 Gen1 Type-C (Front)
    • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    • 6 x USB 2.0 (2 Rear, 4 Front)
• Connector:
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header

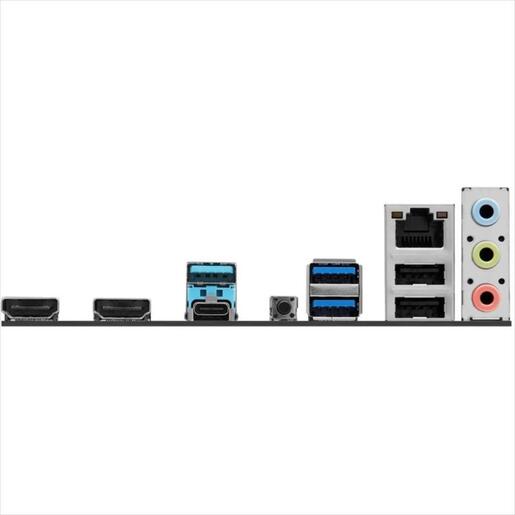

• Rear Panel I/O:
  • 2 x Antenna Mounting Points
  • 2 x HDMI Ports
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI:
  • Software:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC*
  • UEFI:
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock My Favorites in UEFI
    • ASRock Auto Driver Installer
    • ASRock Instant Flash
• Form Factor: Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm
• OS: Microsoft Windows® 11 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
