MB AM4 A520M K V2 GIGABYTE, M-ATX, 2xDDR4 5100Mhz (OC), VGA, HDMI, 1xPCIex16, 1xPCIex1, 1xM.2, 4xSATAIII, 2x USB 2.0, 4xUSB 3.2 Gen1ID EK000877990

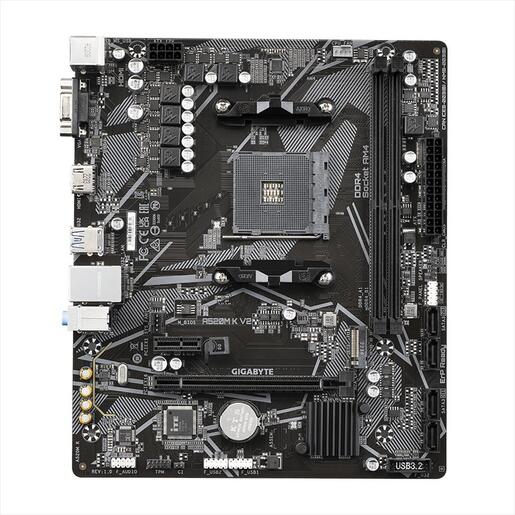

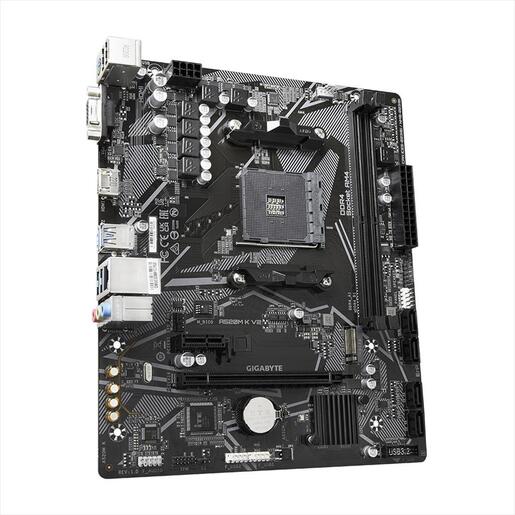

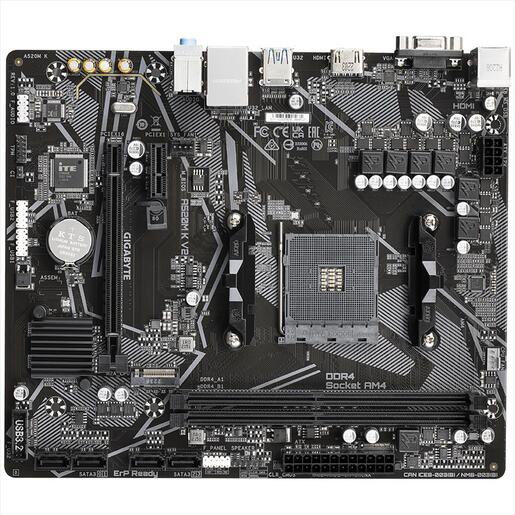

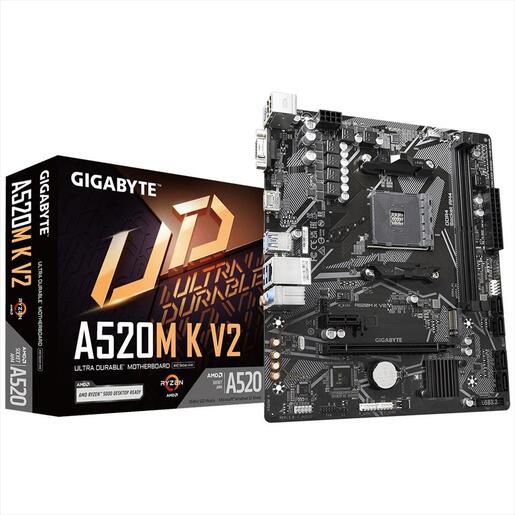

Model Name: GIGABYTE A520M K V2

Specification

• CPU
• AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors, AMD Ryzen™ 5000 Series Processors, AMD Ryzen™ 4000 G-Series Processors, AMD Ryzen™ 3000 Series Processors
• Chipset
• AMD A520
• Memory
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Maximum shared memory of 16 GB
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
• Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
• CPU:
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
• Chipset:
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10
• USB
• CPU:
• 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset:
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x speaker header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

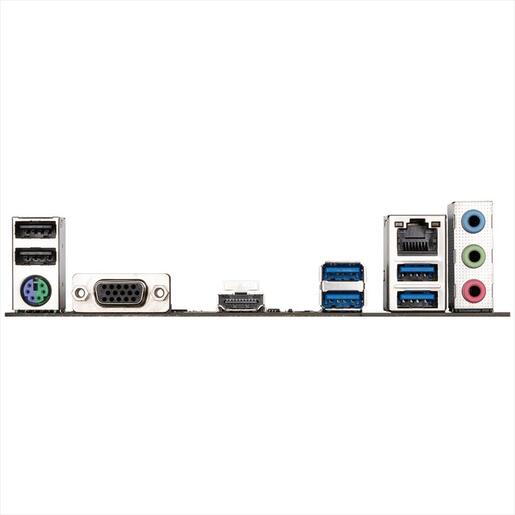

• Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton® Internet Security (OEM version)
• LAN bandwidth management software
• Operating System
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
• Form Factor
• Micro ATX Form Factor; 23.3cm x 19.8cm
