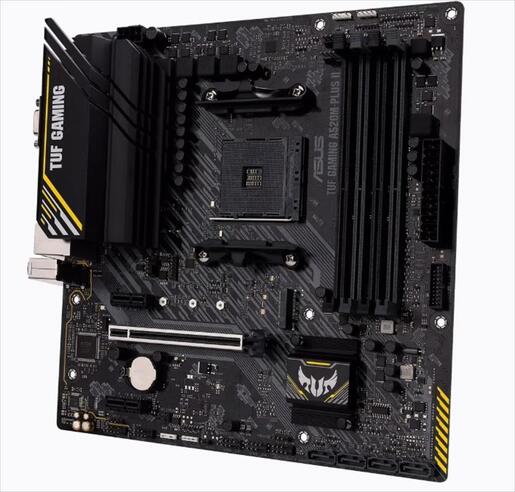

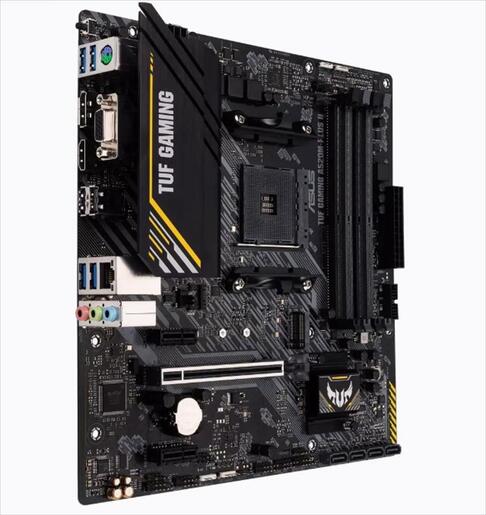

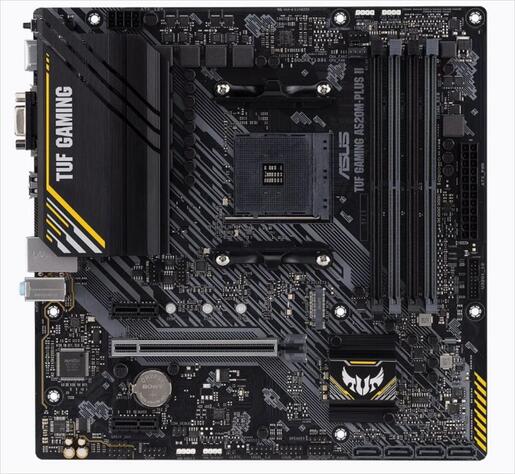

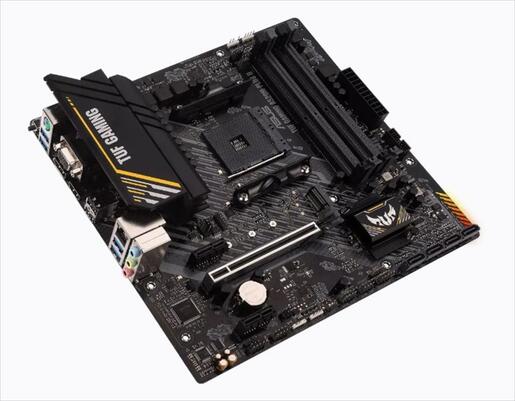

MB AM4 A520M-PLUS II TUF GAMING ASUS 4xDDR4 4866Mhz(O.C), HDMI, DP, VGA, 1xPCIec16, 2xPCIex1, 1xM.2, 4xSATAIII, 90MB17G0-M0EAY0ID EK000877880

Model Name: MB AM4 A520M-PLUS II TUF GAMING ASUS

Specification :

• CPU Support: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series
• Chipset: AMD A520
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4 x DIMM, Max. 128GB, DDR4
  • Supports DDR5 non-ECC
• 128 Mb Flash ROM, UEFI AMI BIOS
• Graphics:
  • 1 x DisplayPort 1.2
  • 1 x HDMI™ 2.1(4K@60Hz)
  • 1 x D-Sub
• Audio:
  • Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
  • Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Shielding,Premium audio capacitors,Dedicated audio PCB layers
• LAN:
  • Gigabit LAN (10/100/1000 Mbps)
• Slots:
  • 1 x PCIe 3.0 x16 slot (supports x16 mode)
  • 2 x PCIe 3.0 x1 slots
  • M.2 slot (Key M), 4 x SATA 6Gb/s ports
• Storage:
  • M.2 slot (Key M), type 2242/2260/2280
  • AMD A520 Chipset- 4 x SATA 6Gb/s ports
• RAID:
  • SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB:
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Connectors:
  • 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers
  • 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
  • 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • 2 x AURA Addressable Gen 2 header, 2 x AURA RGB headers
  • 1 x Clear CMOS header, 1 x Speaker header, 1 x 10-1 pin System Panel header
• Rear Panel I/O:
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x BIOS FlashBack™ button
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x D-Sub
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Software and UEFI:
  • ASUS Exclusive Software
  • ASRock Polychrome SYNC, Full HD UEFI
• Form Factor: Micro-ATX (mATX) 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• OS Support: Microsoft Windows® 10 64-bit
• Certifications: FCC, CE, ErP/EuP ready
