MB AM4 B450M-HDV R4.0 ASROCK 2xDDR4 3200Mhz(O.C), 1xPCIex16,1xPCIex1, HDMI,DVI-D,D-Sub,4xSATAIII,1xM.2,6xUSB 3.1 Gen1ID EK000696094

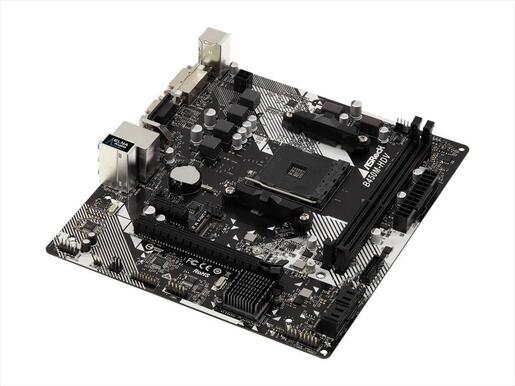

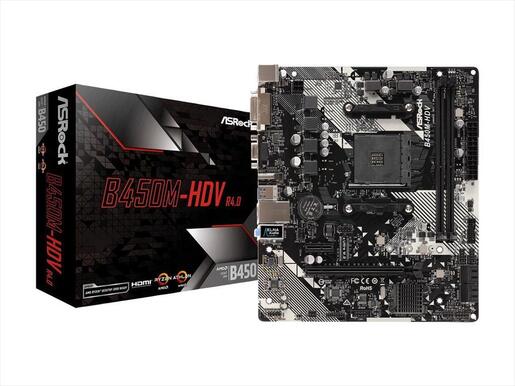

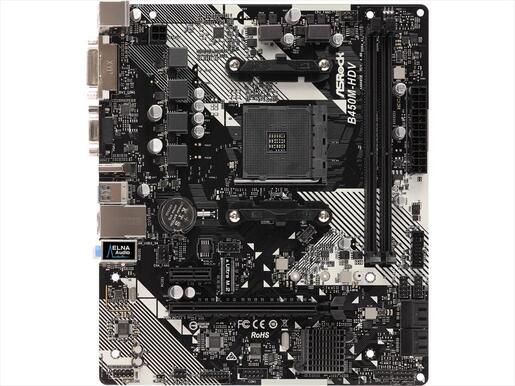

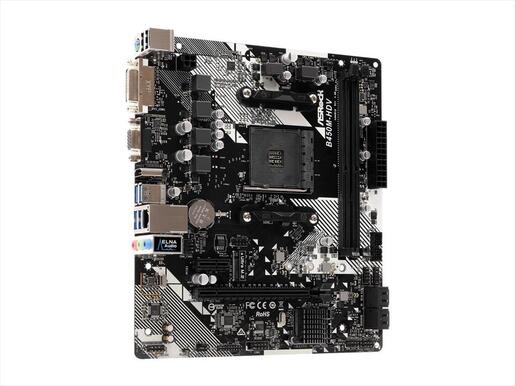

Model Name: ASROCK B450M-HDV R4.0

Specification

• Unique Feature
  • ASRock Super Alloy
    • High Density Glass Fabric PCB
    • Sapphire Black PCB
  • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • ASRock Live Update & APP Shop
• CPU
  • Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • 6 Power Phase design
  • Supports CPU up to 105W
• Chipset
  • AMD Promontory B450
• Memory
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Memory Support:
    • AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge, Pinnacle Ridge): DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    • AMD Ryzen series CPUs (Pinnacle Ridge, Summit Ridge): DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    • AMD Ryzen series APUs (Cezanne, Renoir): DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    • AMD Ryzen series APUs (Picasso, Raven Ridge): DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
  • Max. capacity of system memory: 64GB
  • Supports Extreme Memory Profile (XMP) memory modules
  • 15μ Gold Contact in DIMM Slots
• BIOS
  • 128Mb AMI UEFI Legal BIOS with GUI support
  • Supports "Plug and Play"
  • ACPI 5.1 compliance wake up events
  • Supports jumperfree
  • SMBIOS 2.3 support
  • DRAM Voltage multi-adjustment
• Graphics
  • Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
  • DirectX 12, Pixel Shader 5.0
  • Shared memory default 2GB. Max Shared memory supports up to 16GB.
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports Triple Monitor
  • Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  • Supports HDCP 1.4 with DVI-D and HDMI Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI Port
• Audio
  • 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • Supports Surge Protection
• LAN
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
• Slots
  • AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge):
    • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
  • AMD Ryzen series CPUs (Picasso, Raven Ridge):
    • 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
  • AMD Athlon series CPUs:
    • 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)
  • 1 x PCI Express 2.0 x1 Slot
  • Supports NVMe SSD as boot disks
• Storage
  • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)
  • Supports NVMe SSD as boot disks
  • Supports ASRock U.2 Kit
• Connector
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x 4 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
  • *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

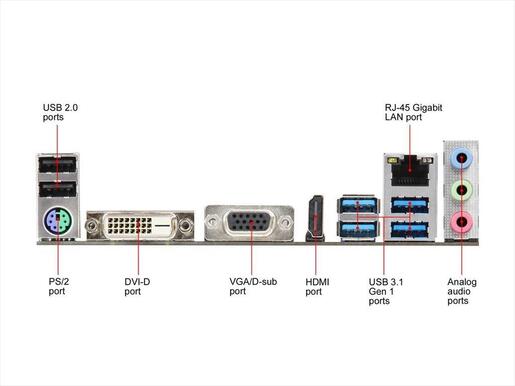

• Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  • Software
    • ASRock A-Tuning
    • ASRock XFast LAN
  • UEFI
    • ASRock Full HD UEFI
    • ASRock Instant Flash
    • ASRock Easy RAID Installer
  • These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  • Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  • Quick Installation Guide, Support CD, I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket
• Hardware Monitor
  • CPU/Chassis temperature sensing
  • CPU/Chassis Fan Tachometer
  • CPU/Chassis Quiet Fan
  • CPU/Chassis Fan multi-speed control
  • CASE OPEN detection
  • Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  • Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
  • Solid Capacitor design
• OS
  • Microsoft® Windows® 10 64-bit / 11 64-bit
  • Summit Ridge do not officially support Windows® 11.
• Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
