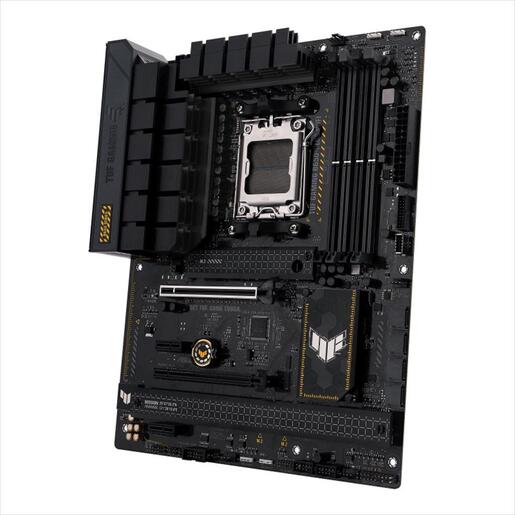

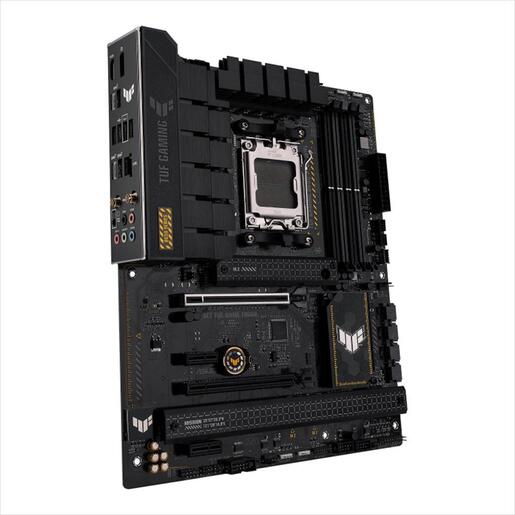

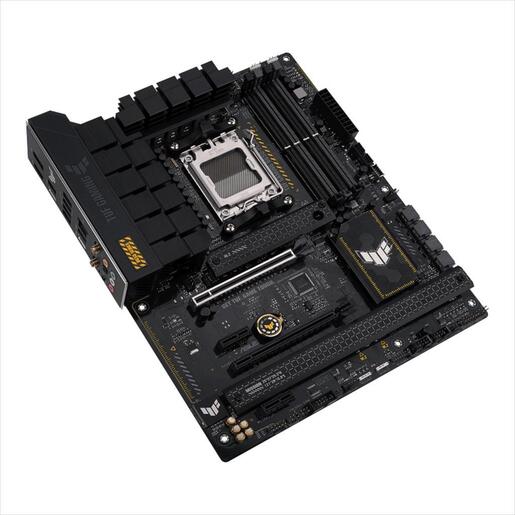

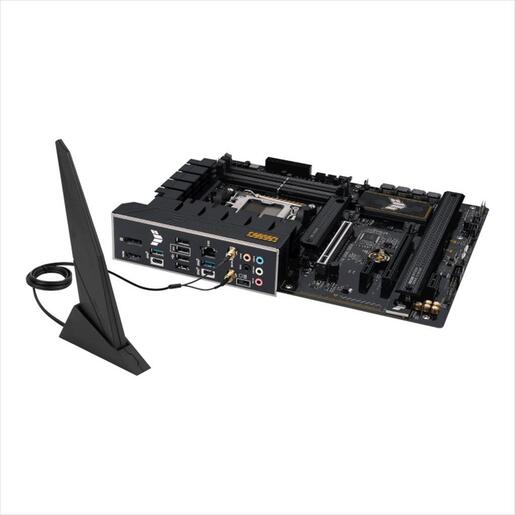

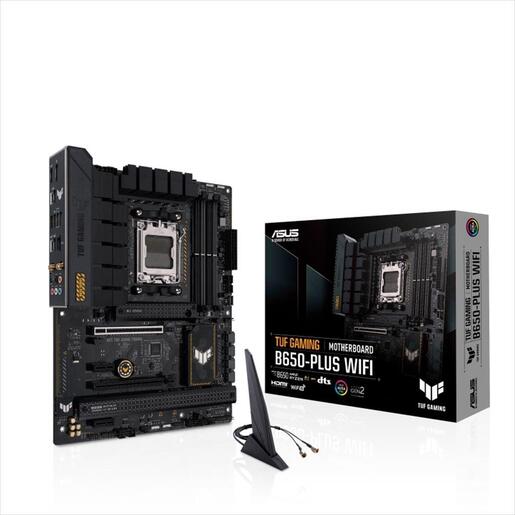

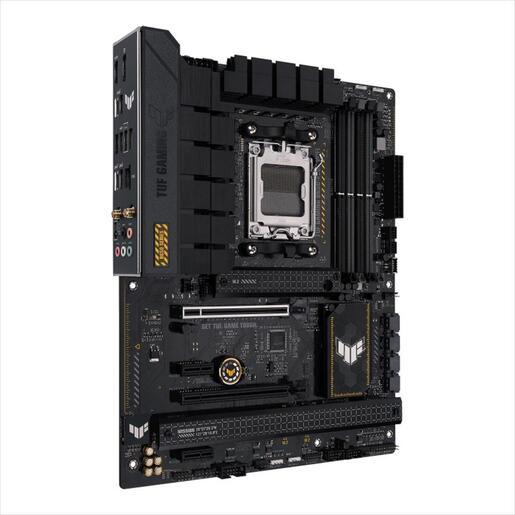

MB AM5 B650-PLUS TUF WIFI ASUS 4xDDR5 7600Mhz (O.C), DP, HDMI, PCI-Ex16 4.0, 1xPCI-Ex4, 3xM.2, 4xSATA3, 2.5Gb LAN, WIFI6, 90MB1BZ0-M0EAY0ID EK000696221

Model Name: ASUS B650-PLUS TUF WIFI

Specification

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 Series Desktop Processors*
• Chipset
  • AMD B650
• Memory
  • 4 x DIMM, Max. 128GB, DDR5
  • 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO™)
  • OptiMem II
• Graphics
  • 1 x DisplayPort*
  • 1 x HDMI® port**
• Expansion Slots
  • AMD Ryzen™ 7000 Series Desktop Processors*
    • 1 x PCIe 4.0/3.0 x16 slot(s)
  • AMD Ryzen™ 8000 Series Desktop Processors*
    • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  • AMD B650 Chipset
    • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
    • 2 x PCIe 4.0/3.0 x1 slots
• Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 7000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
  • AMD B650 Chipset
    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)***
    • 4 x SATA 6Gb/s ports
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.2
• USB
  • Rear USB (Total 8 ports)
    • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
    • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
    • 4 x USB 2.0 port(s) (4 x Type-A)
  • Front USB (Total 7 ports)
    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Power pre-regulator reduces power input noise to ensure consistent performance
    • Premium audio capacitors
    • Dedicated audio PCB layers
    • Audio cover
    • Unique de-pop circuit

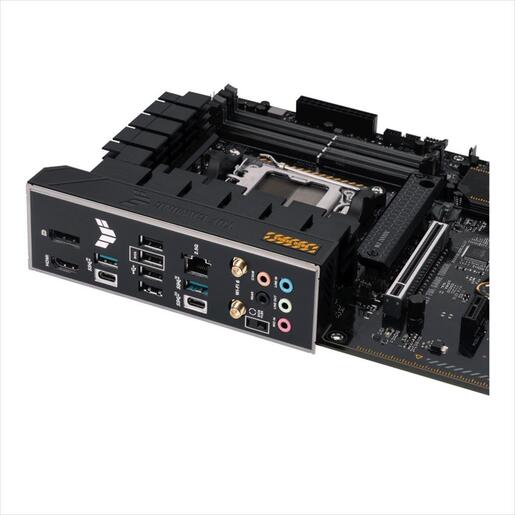

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 2.0 port(s) (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Internal I/O Connectors
  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header(s)
    • 1 x 4-pin CPU OPT Fan header(s)
    • 1 x 4-pin AIO Pump header(s)
    • 4 x 4-pin Chassis Fan header(s)
  • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
    • 1 x 4-pin +12V Power connector
  • Storage related
    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
    • 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 header(s)
    • 1 x Aura RGB header(s)
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 20-3 pin System Panel header with Chassis intrude function
    • 1 x Thunderbolt™ (USB4®) header
• Special Features
  • ASUS TUF PROTECTION
    • DIGI+ VRM (Digital power design with DrMOS)
    • Enhanced DRAM Overcurrent Protection
    • ESD Guards
    • TUF LANGuard
    • Overvoltage Protection
    • SafeSlot Core+
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • M.2 Q-Latch
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsink
    • VRM heatsink design
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • ProCool
    • Pre-mounted I/O shield
    • SafeDIMM
  • Aura Sync
    • Aura RGB header(s)
    • Addressable Gen 2 header(s)
• Software Features
  • ASUS Exclusive Software
    • Armoury Crate
      • Aura Creator
      • Aura Sync
      • Fan Xpert 4
      • Power Saving
      • Two-Way AI Noise Cancellation
    • AI Suite 3
      • TurboV EVO
      • DIGI+ VRM
      • PC Cleaner
    • TUF GAMING CPU-Z
    • DTS Audio Processing
    • MyAsus
    • Norton Anti-virus software (Free Trial version)
    • WinRAR
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
  • Windows® 11
  • Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
