MB AM5 B650E AORUS STEALTH ICE GIGABYTE 4xDDR5 8000Mhz (O.C), HDMI, PCI-Ex16 5.0, M.2 PCIe 5.0, 2xM.2 4.0, 4xSATAIII, Wi-Fi 7, BT 5.4ID EK000877979

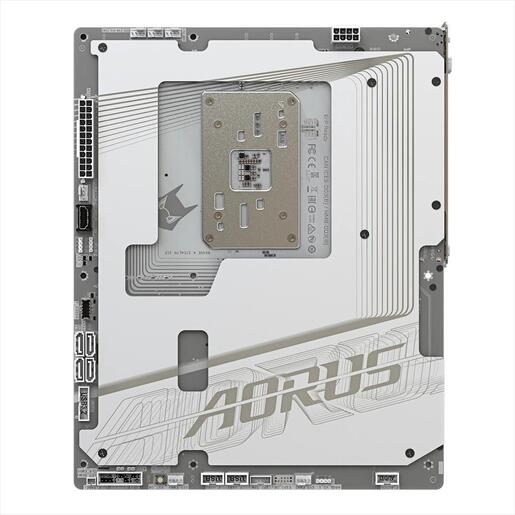

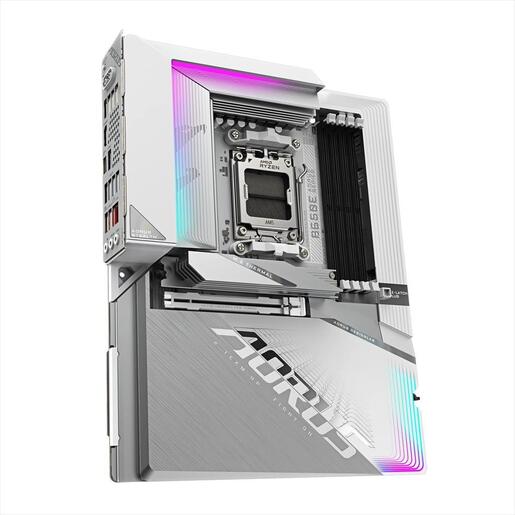

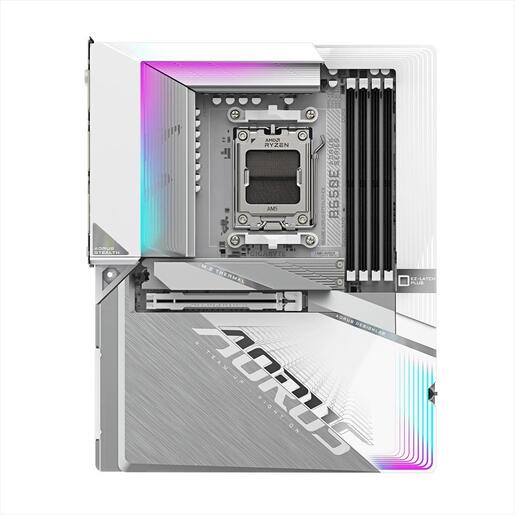

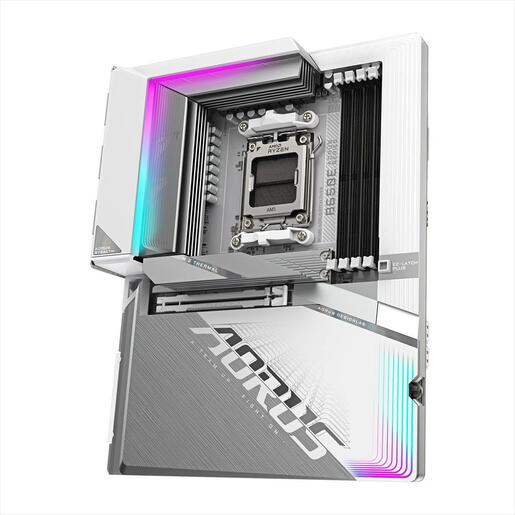

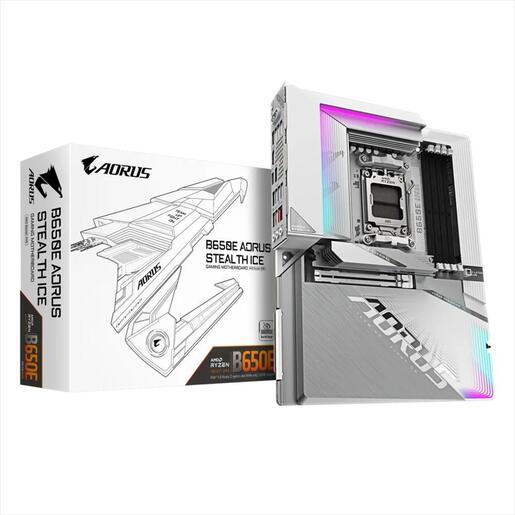

Model name: GIGABYTE B650E AORUS STEALTH ICE

Specification

• CPU
  • AMD Socket AM5, support for:
    • AMD Ryzen™ 9000 Series Processors
    • AMD Ryzen™ 8000 Series Processors
    • AMD Ryzen™ 7000 Series Processors
• Chipset
  • AMD B650
• Memory
  • Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
    • 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs, maximum resolution of 3840x2160@144 Hz
    • 1 x HDMI port, maximum resolution of 4096x2160@60 Hz
    • 1 x Front HDMI port, maximum resolution of 1920x1080@30 Hz
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • MediaTek Wi-Fi 7 MT7925
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • Bluetooth 5.4
  • Support for 11be 160MHz wireless standard
• Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
    • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    • AMD Ryzen™ 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0x4/x2 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices

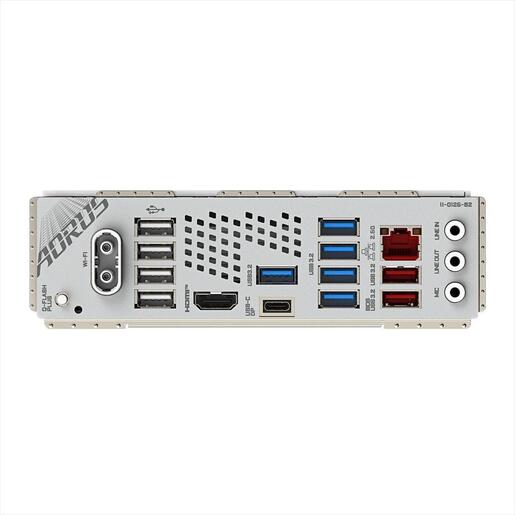

• USB
  • CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • CPU + USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back panel
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header supporting 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 headers supporting 4 USB 2.0/1.1 ports
