MB AM5 B650M S2H GIGABYTE 2xDDR5 6400Mhz (O.C), VGA, DP, HDMI, PCI-Ex16 4.0, PCI-Ex1 3.0, M.2 4.0, 4xSATA3ID EK000696389

Model name: GIGABYTE B650M S2H

Specification :

_x000D_
• CPU:_x000D_
  _x000D_
  • AMD Socket AM5, support for:
  _x000D_
  • AMD Ryzen™ 7000 Series Processors
  _x000D_
  • (Go to GIGABYTE's website for the latest CPU support list.)
  _x000D_
  _x000D_
_x000D_
• Chipset: AMD B650
_x000D_
• Memory:_x000D_
  _x000D_
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  _x000D_
  • 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity)
  _x000D_
  • Dual channel memory architecture
  _x000D_
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  _x000D_
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  _x000D_
  _x000D_
_x000D_
• Onboard Graphics:_x000D_
  _x000D_
  • Integrated Graphics Processor:
  _x000D_
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  _x000D_
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  _x000D_
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  _x000D_
  • Support for up to 3 displays at the same time
  _x000D_
  _x000D_
_x000D_
• Audio:_x000D_
  _x000D_
  • Realtek® Audio CODEC
  _x000D_
  • High Definition Audio
  _x000D_
  • 2/4/5.1/7.1-channel
  _x000D_
  _x000D_
_x000D_
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
_x000D_
• Expansion Slots:_x000D_
  _x000D_
  • CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  _x000D_
  • Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  _x000D_
  _x000D_
_x000D_
• Storage Interface:_x000D_
  _x000D_
  • CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
  _x000D_
  • Chipset: 4 x SATA 6Gb/s connectors
  _x000D_
  _x000D_
_x000D_
• USB:_x000D_
  _x000D_
  • CPU: 2 x USB 3.2 Gen 1 ports on the back panel
  _x000D_
  • Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header
  _x000D_
  _x000D_
_x000D_
• Internal I/O Connectors:_x000D_
  _x000D_
  • 1 x 24-pin ATX main power connector
  _x000D_
  • 1 x 8-pin ATX 12V power connector
  _x000D_
  • 1 x CPU fan header
  _x000D_
  • 2 x system fan headers
  _x000D_
  • 1 x RGB LED strip header
  _x000D_
  _x000D_
_x000D_

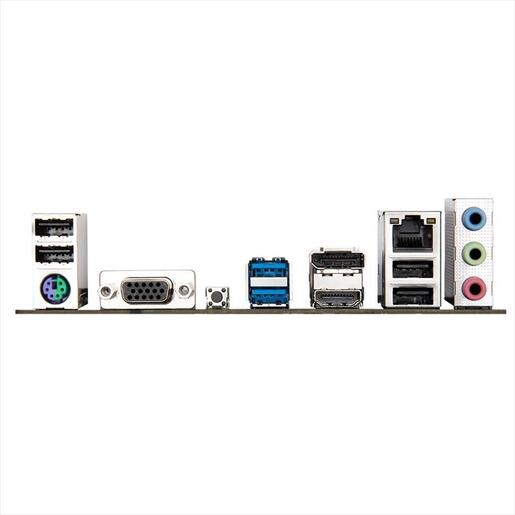

• Back Panel Connectors:_x000D_
  _x000D_
  • 4 x USB 2.0/1.1 ports
  _x000D_
  • 1 x PS/2 keyboard/mouse port
  _x000D_
  • 1 x D-Sub port
  _x000D_
  • 1 x HDMI port
  _x000D_
  • 3 x audio jacks
  _x000D_
  _x000D_
_x000D_
• Form Factor: Micro ATX Form Factor; 23.0cm x 22.5cm
