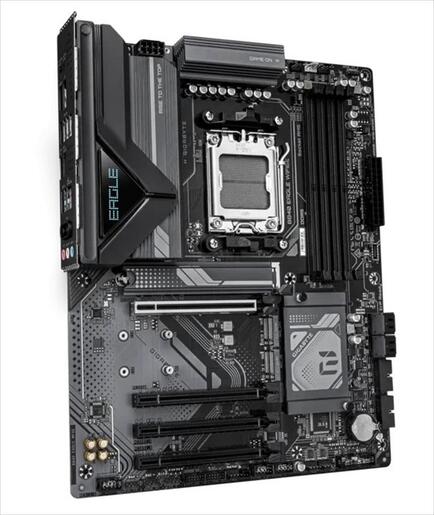

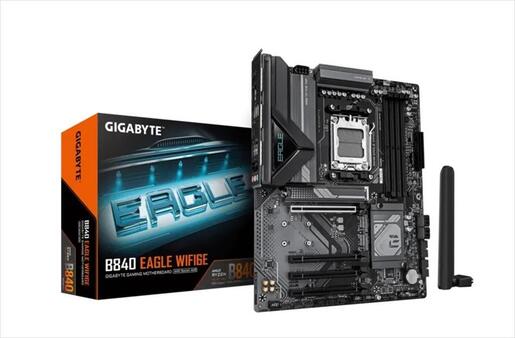

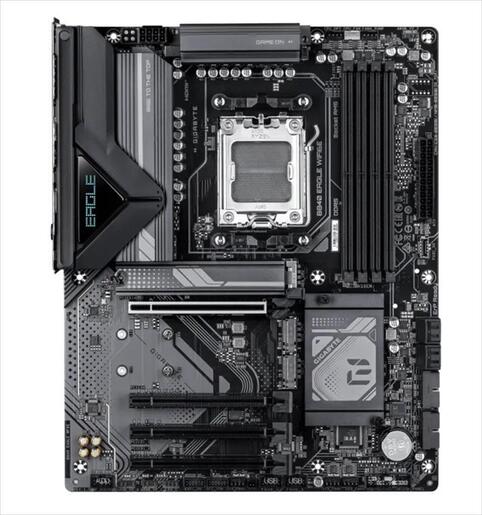

MB AM5 B840 EAGLE WIFI6E GIGABYTE 4xDDR5 8200Mhz (O.C), HDMI, DP, 1x PCI-Ex16 4.0,2x PCI-Ex4 3.0,1x PCI-Ex1 3.0 3xM.2,4xSATA3, 2.5G LAN, Wi-Fi 6E,BT 5.3ID EK000877969

Model Name: AM5 B840 EAGLE WIFI6E GIGABYTE 4xDDR5 8200Mhz

Specification :

• CPU Support: AMD Socket AM5, support for 9000/ 8000/ 7000 Series Desktop Processors
• Chipset: AMD B840
• Memory:
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • MSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• Graphics:
  • Integrated Graphics Processor with AMD Radeon™ Graphics
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• Audio:
  • Realtek® Audio CODEC
  • 7.1-Channel High Definition Audio
• LAN:
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless LAN:
  • Realtek® Wi-Fi 6E RTL8852CE
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard
• Slots:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
  • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
• Storage:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
• RAID:
  • SATA: RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • NVMe: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• USB:
  • Rear: 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports on the back panel
  • Front: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB heade, 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1
• Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x reset jumper, 1 x Clear CMOS jumper

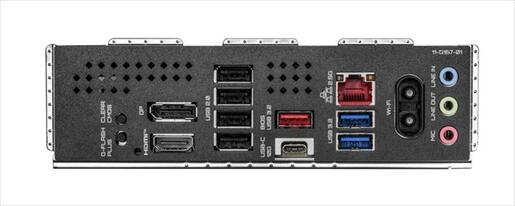

• Rear Panel I/O:
  • 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x DisplayPort
  • 1 x HDMI port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red)
  • 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port
  • 2 x antenna connectors (2T2R), 3 x audio jacks
• Software and UEFI:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
• OS Support: Microsoft Windows® 10/11 64-bit
