MB AM5 B840 GAMING PLUS WIFI MSI 4xDDR5 8000Mhz (O.C), HDMI, 1x PCI-Ex16 5.0,1x PCI-Ex4 4.0, 3x PCI-Ex1 3.0, 2xM.2,4xSATA3, 2.5G LAN, Wi-Fi 7,BT 5.4, 7E57-002RID EK000786606

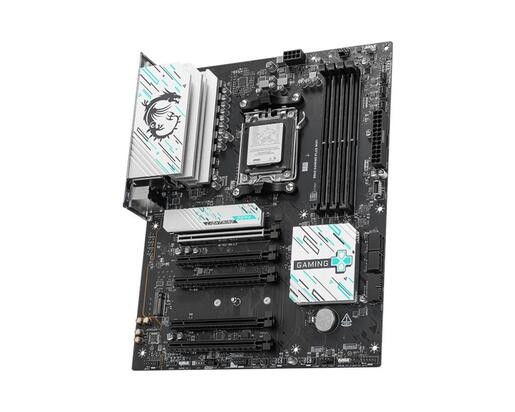

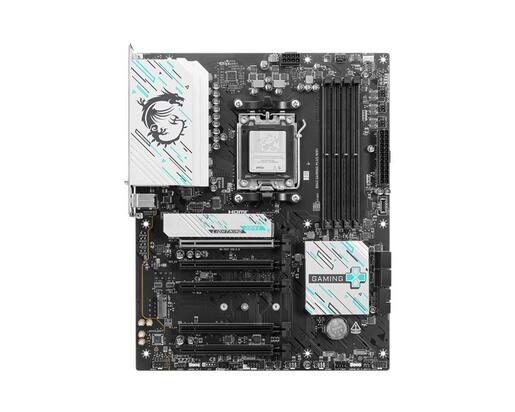

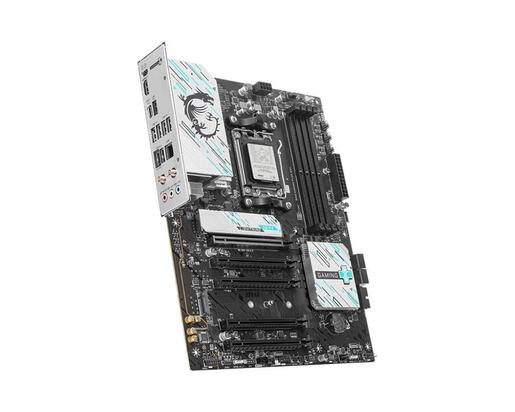

Model name: MSI B840 GAMING PLUS WIFI

Specifications:

• Chipset: AMD B840
• CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Socket: AM5
• Memory
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support: DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series max overclocking frequency:
    • 1DPC 1R: up to 8000+ MT/s
    • 1DPC 2R: up to 6400+ MT/s
    • 2DPC 1R: up to 6400+ MT/s
    • 2DPC 2R: up to 5600+ MT/s
  • Supports AMD POR Speed, JEDEC Speed, Memory Overclocking, AMD EXPO™
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
• Onboard Graphics:
  • 1x HDMI™, HDMI 2.1, max resolution 4K 60Hz
• Expansion Slots
  • 5x PCI-E x16 slots
    • PCI_E1: PCIe 4.0 x16 (CPU), supports Ryzen™ 9000/7000 x16, 8700/8600/8400 x8, 8500/8300 x4
    • PCI_E2: PCIe 3.0 x1 (Chipset)
    • PCI_E3: PCIe 3.0 x1 (Chipset)
    • PCI_E4: PCIe 3.0 x4 (Chipset)
    • PCI_E5: PCIe 3.0 x1 (Chipset)
• Audio: Realtek® ALC897, 7.1-Channel High Definition Audio
• Storage
  • 2x M.2 Slots
    • M.2_1 (CPU): PCIe 4.0 x4, supports 2280/2260
    • M.2_2 (CPU): PCIe 4.0 x4, supports 22110/2280/2260
    • M.2_2 slot backward compatibility:
      • Ryzen™ 9000/7000: PCIe 4.0 x4
      • Ryzen™ 8700/8600/8400: PCIe 3.0 x4
      • Ryzen™ 8500/8300: PCIe 3.0 x2
  • 4x SATA 6G ports
• RAID Support:
  • SATA: RAID 0, RAID 1, RAID 10
  • M.2 NVMe: RAID 0, RAID 1
• USB

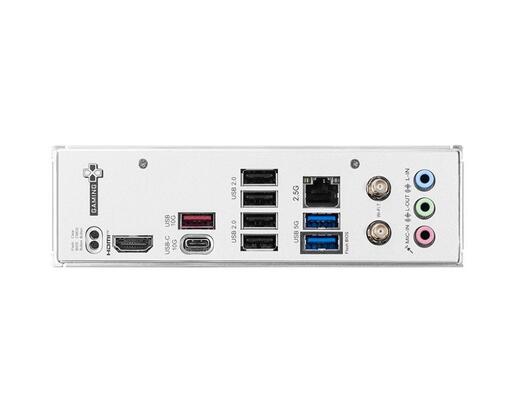

  • Rear:
    • 4x USB 2.0
    • 2x USB 5Gbps Type-A
    • 1x USB 10Gbps Type-A
    • 1x USB 10Gbps Type-C
  • Front:
    • 4x USB 2.0
    • 2x USB 5Gbps Type-A
    • 1x USB 5Gbps Type-C
• LAN: Realtek® 8125BG 2.5G LAN
• Internal I/O
  • 1x ATX_PWR, 1x CPU_PWR
  • 1x CPU Fan, 1x Combo Fan (Pump/Sys Fan), 4x System Fan
  • 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM)
  • 1x Tuning Controller (JDASH)
  • 2x Addressable V2 RGB LED (JARGB_V2), 1x RGB LED (JRGB)
  • 1x TPM pin header (Supports TPM 2.0)
  • 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
• Wireless LAN & Bluetooth:
  • Wi-Fi 7 Solution (pre-installed in M.2 Key-E)
  • MU-MIMO TX/RX, 2.4/5/6GHz up to 5.8Gbps
  • Supports 802.11 a/b/g/n/ac/ax/be
  • Bluetooth® 5.4, MLO, 4KQAM
• LED Feature: 4x EZ Debug LED
• Operating System Support: Windows® 11 64-bit
• PCB Info: ATX, 243.84 mm x 304.8 mm
