MB AM5 B850 GAMING PLUS WIFI6E MSI 4xDDR5 8200Mhz (O.C), DP, HDMI, PCI-Ex16 5.0,PCI-Ex4 4.0,2xPCI-Ex1 3.0,3xM.2,4xSATA3,BT 5.3, 7E80-001RID EK000798358

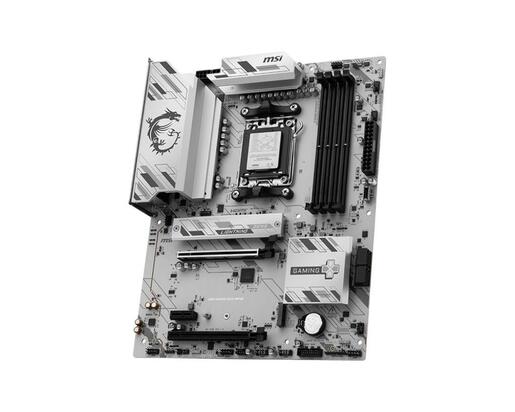

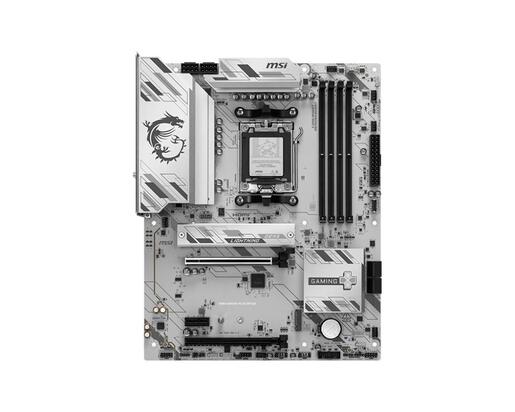

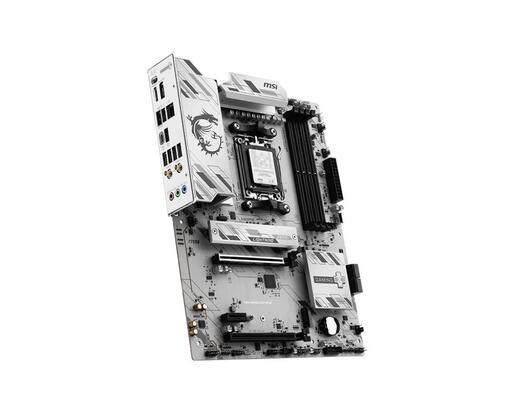

Model name: MSI B850 GAMING PLUS WIFI6E

Specification :

• Chipset: AMD B850
• CPU: Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
• Socket: AM5
• Memory:
  • Slots: 4x DDR5 UDIMM
  • Maximum Memory Capacity: 256GB
  • Memory Support: DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 6000+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO™
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
• Onboard Graphics:
  • 1x HDMI™ (Support HDMI™ 2.1, max resolution 4K 60Hz)
  • 1x DisplayPort (Support DisplayPort 1.4, max resolution 4K 60Hz)
• Slot:
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E1 slot supports:
    • PCIe 4.0 x16 (For Ryzen™ 9000/7000 Series processors)
    • PCIe 4.0 x8 (For Ryzen™ 8700/8600/8400 Series processors)
    • PCIe 4.0 x4 (For Ryzen™ 8500/8300 Series processors)
• Audio: Realtek® ALC897, 7.1-Channel High Definition Audio
• Storage:
  • 2x M.2
    • M.2_1 Source (From CPU) supports PCIe 5.0 x4, 22110/2280 devices
    • M.2_2 Source (From CPU) supports PCIe 4.0 x4, 2280/2260 devices
  • 4x SATA 6G
  • M2_1 slot supports PCIe 5.0 x4 (Ryzen™ 9000/7000) and PCIe 4.0 x4 (Ryzen™ 8000)
  • M2_2 slot supports PCIe 4.0 x4 (Ryzen™ 9000/8700/8600/8400/7000) and PCIe 4.0 x2 (Ryzen™ 8500/8300)
• RAID:
  • Supports RAID 0, RAID 1, RAID 10 for SATA
  • Supports RAID 0 and RAID 1 for M.2 NVMe
• USB:
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
• LAN: Realtek® 8125D 2.5G LAN
• Internal IO:
  • 1x Power Connector (ATX_PWR)
  • 2x Power Connector (CPU_PWR)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 4x System Fan
  • 1x EZ Conn-header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector (JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Supports TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• Wireless LAN & Bluetooth:
  • Wi-Fi 6E Solution, pre-installed in M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/b/g/n/ac/ax
  • Bluetooth® 5.3, FIPS, FISMA
  • * Wi-Fi 6E availability depends on country regulations
  • ** Bluetooth 5.3 ready in Windows 10 build 21H1 and Windows 11
• LED Feature:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED

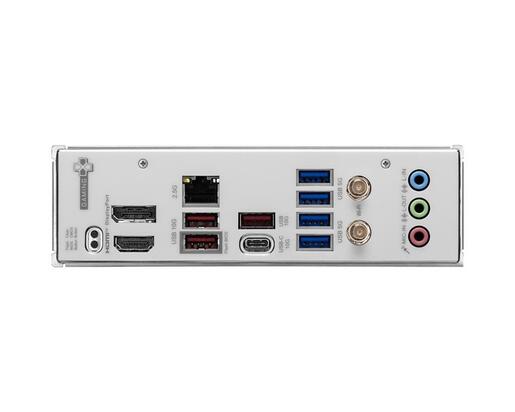

• Back Panel Ports:
  • Clear CMOS Button
  • DisplayPort 1.4
  • 2.5G LAN
  • USB 10Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • HD Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 10Gbps (Type-A)
  • USB 10Gbps (Type-C)
  • USB 5Gbps (Type-A)
• Operating System: Support for Windows® 11 64-bit
