MB AM5 X870 GAMING WIFI6 GIGABYTE 4xDDR5 8200MHz (OC), 1xPCIex16 5.0, 2xPCIex16 3.0, 4xSATAIII, 3xM.2 , HDMI, 2.5GbE, WIFI6+BT 5.3ID EK000696051

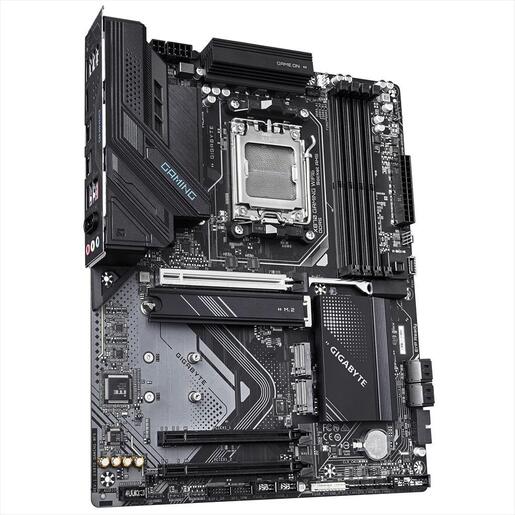

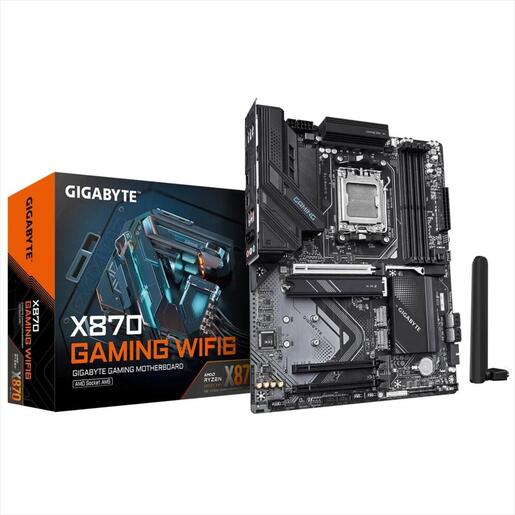

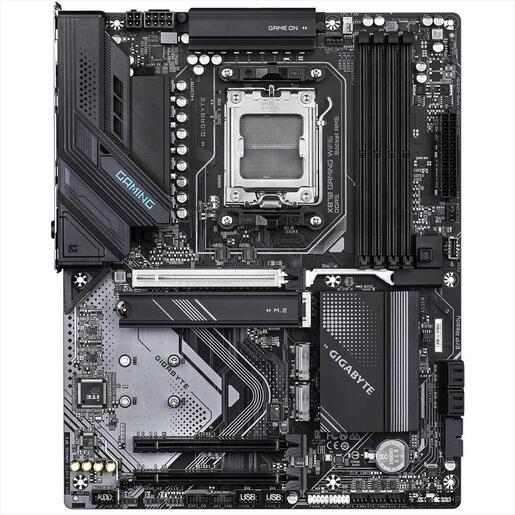

Model name: GIGABYTE X870 GAMING WIFI6

Specification :

_x000D_
• CPU: AMD Socket AM5, support for:_x000D_
  _x000D_
  • AMD Ryzen™ 9000 Series Processors
  _x000D_
  • AMD Ryzen™ 8000 Series Processors
  _x000D_
  • AMD Ryzen™ 7000 Series Processors
  _x000D_
  _x000D_
_x000D_
• Chipset: AMD X870
_x000D_
• Memory: Support for DDR5 8200(OC) to 4400 MT/s memory modules
_x000D_
• Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support_x000D_
  _x000D_
  • 2 x USB4® USB Type-C® ports, supporting up to 3840x2160@240 Hz
  _x000D_
  • 1 x HDMI port, supporting up to 4096x2160@60 Hz
  _x000D_
  _x000D_
_x000D_
• Audio: Realtek® Audio CODEC with High Definition Audio
_x000D_
• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
_x000D_
• Wireless Communication: Realtek® Wi-Fi 6 RTL8851BE with BLUETOOTH 5.3
_x000D_
• Expansion Slots:_x000D_
  _x000D_
  • 1 x PCI Express x16 slot, integrated in the CPU
  _x000D_
  • 2 x PCI Express x16 slots, supporting PCIe 3.0
  _x000D_
  _x000D_
_x000D_
• Storage Interface:_x000D_
  _x000D_
  • 1 x M.2 connector supporting PCIe 5.0 x4 SSDs
  _x000D_
  • 4 x SATA 6Gb/s connectors
  _x000D_
  _x000D_
_x000D_
• USB: Multiple ports including USB4® Type-C®, USB 3.2 Gen 2 Type-A, and USB 2.0/1.1
_x000D_
• Internal I/O Connectors: 1 x 24-pin ATX main power connector, multiple fan headers, RGB headers
_x000D_

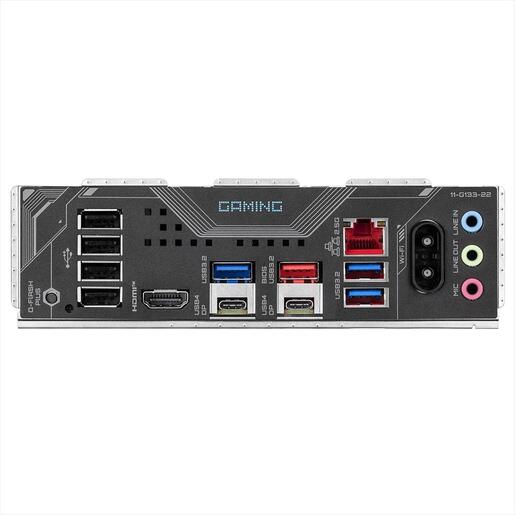

• Back Panel Connectors: HDMI port, USB ports, RJ-45, audio jacks
_x000D_
• BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS
_x000D_
• Unique Features: Support for GIGABYTE Control Center, Q-Flash, Smart Backup
_x000D_
• Operating System: Support for Windows 11 and Windows 10 64-bit
_x000D_
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
_x000D_
