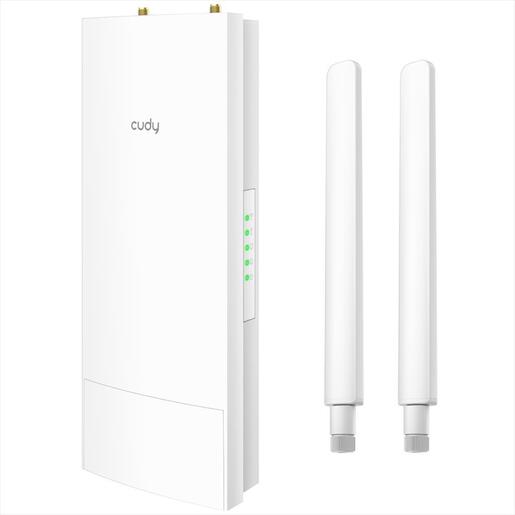

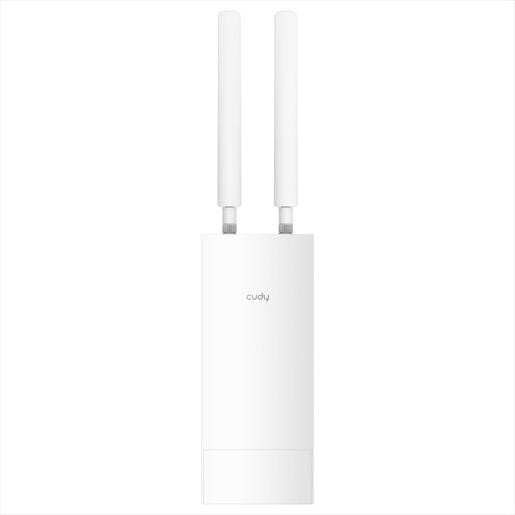

NET ACCESS POINT CUDY AP1200 Outdoor, AC1200, 10/100Mbps, 2.4/5 GHz, PoEID EK000696121

_x000D_

Model Name: CUDY AP1200

_x000D_ _x000D_ _x000D_ _x000D_

Specification :

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_

_x000D_
• CPU: 580 MHz Processor
_x000D_
• Flash: 8 MB (64 Mbit)
_x000D_
• DDR: 64 MB (512 Mbit)
_x000D_

_x000D_ _x000D_

_x000D_
• Interface:_x000D_
  _x000D_
  • 1× 10/100Mbps Ethernet (RJ-45) Port (Support Passive PoE)
  _x000D_
  • 1× Reset Button
  _x000D_
  • 1× WPS Button
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_

_x000D_
• Power Supply: 24 V Passive PoE (+4,5pins; -7,8pins)
_x000D_

_x000D_ _x000D_

_x000D_
• Dimensions:_x000D_
  _x000D_
  • AP Body: 240×100×53.7 mm
  _x000D_
  • Antennas: 197.5×21.6×15.5 mm
  _x000D_
  • Height of AP with Antennas installed: 438 mm
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_

_x000D_
• Antenna Type: 2× Detachable Omni-directional Antennas
_x000D_

_x000D_ _x000D_

_x000D_

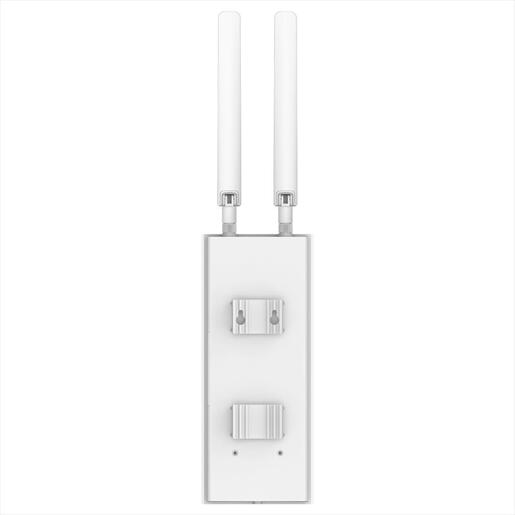

• Mounting: Pole/Wall Mounting (Kit included)
_x000D_

_x000D_ _x000D_

_x000D_
• Wireless Function:_x000D_
  _x000D_
  • Wireless Standard: Wi-Fi 5 (802.11ac/n/g/b/a)
  _x000D_
  • Frequency: 5 GHz, 2.4 GHz
  _x000D_
  • Signal Rate:_x000D_
    _x000D_
    • 5 GHz: Up to 867 Mbps
    _x000D_
    • 2.4 GHz: Up to 300 Mbps
    _x000D_
    _x000D_
  _x000D_
  • Bandwidth: 20/40/80 MHz
  _x000D_
  • Wireless Functions:_x000D_
    _x000D_
    • Multiple SSID
    _x000D_
    • Enable/Disable Wireless Radio
    _x000D_
    • Transmit Power Control
    _x000D_
    • QoS (WMM)
    _x000D_
    • Band Steering
    _x000D_
    • MU-MIMO
    _x000D_
    • Beamforming
    _x000D_
    • Rate Limit
    _x000D_
    • Reboot Schedule
    _x000D_
    • Wireless Schedule
    _x000D_
    _x000D_
  _x000D_
  • Wireless Encryption: WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK
  _x000D_
  • Security:_x000D_
    _x000D_
    • Access Control
    _x000D_
    • Mac Filtering
    _x000D_
    • Wireless Isolation Clients
    _x000D_
    _x000D_
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_

_x000D_
• Weather-Proof:_x000D_
  _x000D_
  • Dust/Water-Proof: IP65 (Protection against any dust and low-pressure water from any directions)
  _x000D_
  • Lightning Protection: 4 KV Lightning/Surge protection at the Ethernet port
  _x000D_
  • ESD: 8 KV Contact / 15 KV Air ESD protection
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_

_x000D_
• Working Temperatures:_x000D_
  _x000D_
  • Operating Temperatures: -20~60 °C (-4~140°F)
  _x000D_
  • Extend: -40~65 °C (-40~149°F) (Booted up in advance. Performance may drop slightly.)
  _x000D_
  • Storage Temperature: -40–70 °C (-40–158 °F)
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_

_x000D_
• Operating Mode:_x000D_
  _x000D_
  • Access Point Mode
  _x000D_
  • Router Mode
  _x000D_
  • RE Mode
  _x000D_
  • WISP Mode
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_

_x000D_
• Environment:_x000D_
  _x000D_
  • Operating Temperatures: -20~60 °C (-4~140°F) ext. -40~65 °C (-40~149°F)
  _x000D_
  • Storage Temperature: -40–70 °C (-40–158 °F)
  _x000D_
  • Operating Humidity: 10–90% RH non-condensing
  _x000D_
  • Storage Humidity: 5–90% RH non-condensing
  _x000D_
  _x000D_
_x000D_

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
