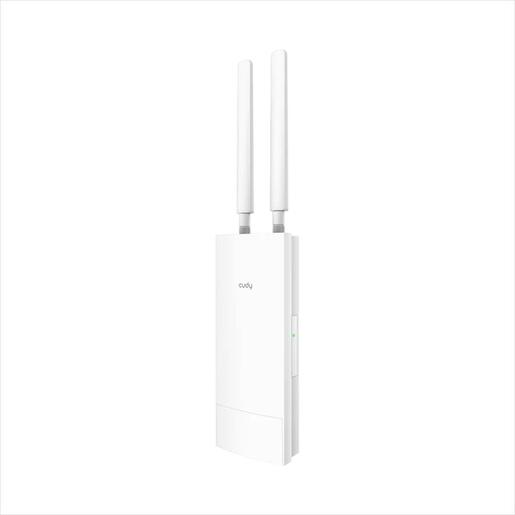

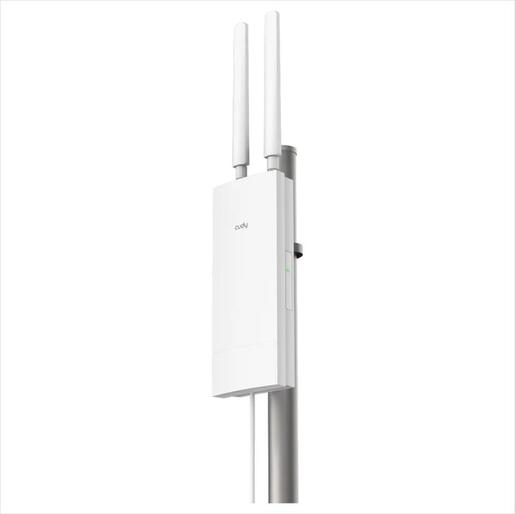

NET ACCESS POINT CUDY AP3000 outdoor, AX3000 2.5GbE PoE, 4-Stream Dual-Band Wi-Fi 6, 320m rangeID EK000696459

Model name: CUDY AP3000 outdoor

Specification :

• CPU: Chipset MT7981BA
• CPU Details: 1.3 GHz Dual-Core CPU
• Memory/Storage:
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 256 MB (2 Gbit) DDR3
• Wireless:
• 5 GHz Wi-Fi Speed: 2402Mbps
• 2.4 GHz Wi-Fi Speed: 574Mbps
• 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 1× Internal+2× External
• 5 GHz Antenna Gain Max: 6 dBi
• 2.4 GHz Antenna Gain Max: 4 dBi
• FEM or PA/LNA:
• 5 GHz: 3× High-Power
• 2.4 GHz: 2× High-Power
• Detachable Wi-Fi Antennas Connector: RP-SMA Female
• Beamforming: True
• Range Performance:
• Max: 320 m (1050 ft)
• Park: 280 m (919 ft)
• Street: 70 m (230 ft)
• Woods: 40 m (131 ft)
• Interfaces:
• Gigabit RJ45 Ports: 1
• Ethernet Notes: Accepts PoE powering
• LED: System
• Physical Buttons:
• WPS Button
• Reset Button
• Power Input: PoE via Ethernet Port
• Power:
• Power Methods:
• 802.3at PoE
• Passive PoE
• Passive PoE: 48 ~ 57V
• Power Adapter:
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 48V Passive PoE
• Max Power Consumption (W): 18 W
• Idle Power Consumption (W): 5 W
• Reliability:
• Advanced: Hardware Watchdog
• Lightning/Surge Protection: 6kV
• ESD Contact Protection: 4kV
• ESD Air Protection: 8kV
• Environment:
• Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉)
• Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 0% ~ 100% non-condensing
• Storage Humidity: 10% ~ 95% non-condensing
• Ingress Protection Rating: IP65 When devices is installed vertically
• Certifications: FCC, CE
