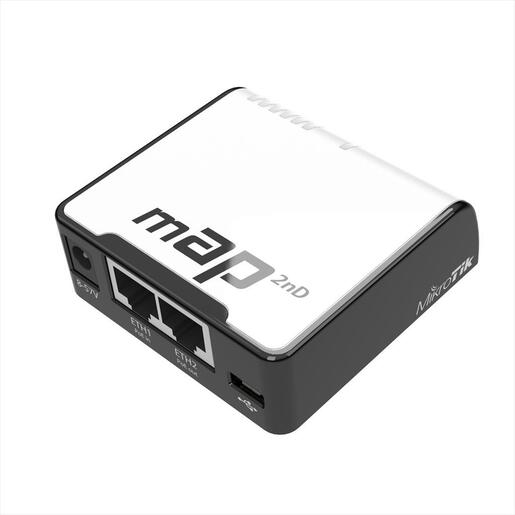

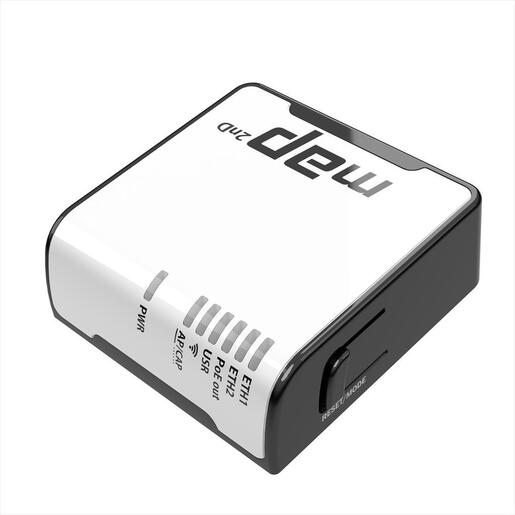

NET ACCESS POINT mini mAP WIRELESS MIKROTIK, USB, PoE, RBmAP2nDID EK000696644

Model name: MIKROTIK RBmAP2nD

Specification :

• Architecture: MIPSBE
• CPU:
  • Model: QCA9531
  • Core Count: 1
  • Nominal Frequency: 650 MHz
• Switch Chip Model: QCA9531-BL3A-R
• Memory and Storage:
  • RAM: 64 MB
  • Storage: 16 MB FLASH
• RouterOS:
  • License Level: 4
  • Operating System: RouterOS
• Dimensions: 68 x 68 x 19 mm
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 70°C
• Wireless 2.4 GHz:
  • Max Data Rate: 300 Mbit/s
  • Number of Chains: 2
  • Standards: 802.11b/g/n
  • Antenna Gain: 1.2 dBi
  • Chip Model: QCA9531
  • Generation: Wi-Fi 4
• Ethernet Ports: 2 (10/100 Mbps)
• USB:
  • Number of Ports: 1
  • Type: MicroUSB Type AB
  • Power Reset: Yes
  • Max Current: 1 A
• Power:
  • MicroUSB Input Voltage: 5 V
  • Number of DC Inputs: 3 (DC jack, PoE-IN, MicroUSB)
  • DC Jack Input Voltage: 8-57 V
  • Max Power Consumption: 5 W
• PoE:
  • PoE-IN: 802.3af/at
  • PoE-IN Input Voltage: 12-57 V
  • PoE-OUT Ports: Ether2
  • PoE-OUT Type: Passive PoE
  • Max Output Per Port (18-30 V Input): 0.5 A
  • Max Total Output: 0.5 A
• Cooling: Passive
• Certifications: FCC, IC
