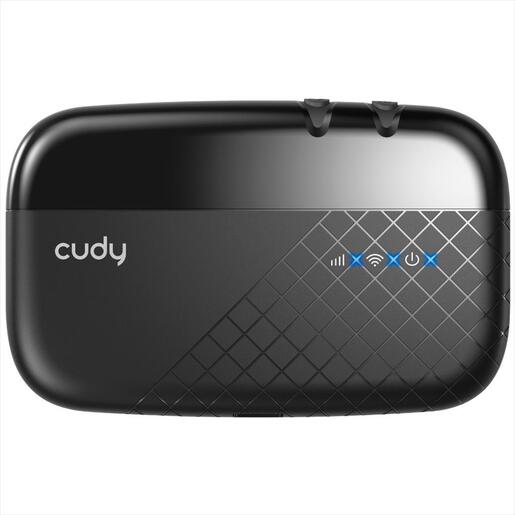

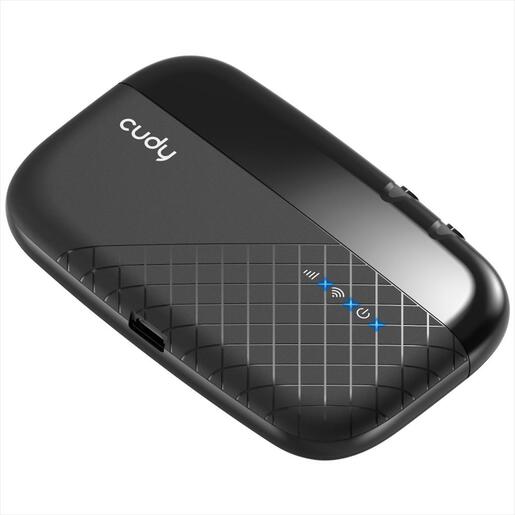

NET ROUTER WIRELESS 4G CUDY MF4 Up to 150/50 Mbps, 5-6 hours working hours, BLACKID EK000696664

Model Name: CUDY MF4

Specification :

_x000D_
• Model: 4G LTE Mobile Wi-Fi
_x000D_
• Form: MiFi / Pocket Router
_x000D_
• Communication System (WAN) Chipset: Qualcomm MDM9x07 / MDM9x25
_x000D_
• Frequency Bands: _x000D_
  _x000D_
  • LTE: B1/B3/B7/B8/B20/B38/B40/B41
  _x000D_
  • UMTS: B1/B3/B8
  _x000D_
  _x000D_
_x000D_
• Bandwidth: LTE Band 1.4/3/5/10/15/20 MHz
_x000D_
• Modulation: _x000D_
  _x000D_
  • Downlink: QPSK/16-QAM/64-QAM
  _x000D_
  • Uplink: QPSK/16-QAM
  _x000D_
  _x000D_
_x000D_
• Antenna: _x000D_
  _x000D_
  • Primary: Internal
  _x000D_
  • Diversity: Internal, UMTS Optional
  _x000D_
  _x000D_
_x000D_
• RF Power Level: _x000D_
  _x000D_
  • LTE FDD: Power Class 3 (23 +/-2dBm)
  _x000D_
  • UMTS: Power Class 3 (24 +1.7/-3.7dBm)
  _x000D_
  _x000D_
_x000D_
• Data Rate: _x000D_
  _x000D_
  • 4G: 3GPP R10, Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps
  _x000D_
  • 3G: 3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps
  _x000D_
  _x000D_
_x000D_
• WLAN Wi-Fi: _x000D_
  _x000D_
  • Chipset: Realtek 8192ES
  _x000D_
  • Frequency: 2.4GHz
  _x000D_
  • Protocol: 802.11b/g/n
  _x000D_
  • Channel: 1~13
  _x000D_
  • Antenna: Internal
  _x000D_
  • Data Rate: _x000D_
    _x000D_
    • 802.11b: Up to 11 Mbps
    _x000D_
    • 802.11g: Up to 54 Mbps
    _x000D_
    • 802.11n: Up to 150 Mbps
    _x000D_
    _x000D_
  _x000D_
  _x000D_
_x000D_
• Feature: _x000D_
  _x000D_
  • Interface: USB2.0
  _x000D_
  • USIM: Single, 4FF
  _x000D_
  • LED: Power/Battery Status Indicator, Network 4G/3G/2G Network Status Indicator, Wi-Fi Wi-Fi Status Indicator
  _x000D_
  • WebUI: System Connection Status, Statistics, Samba (optional), Device Management, Power Mangement, Mobile Service Automatic APN matching according to USIM, Auto Data Connection, PIN/PUK Management, Network Mode Selection(2G/3G/LTE/Auto), Router USB RNDIS Device, Up to 10 Wi-Fi users/devices, DHCP Server, IPv4/v6, VPN Passthrough, Firewall, WPS, Security via WEP, WPA-PSK, WPA2-PSK, Wi-Fi Settings
  _x000D_
  _x000D_
_x000D_
• Battery: _x000D_
  _x000D_
  • Type: Li-ion Polymer Battery
  _x000D_
  • Capacity: 2000mAh
  _x000D_
  • Endurance: 5-6 hours (normal network situation)
  _x000D_
  _x000D_
_x000D_
• Operation System: _x000D_
  _x000D_
  • Windows: XP/7/8/10
  _x000D_
  • MAC OS: 10.7+
  _x000D_
  • Linux: Ubuntu 13.04+
  _x000D_
  _x000D_
_x000D_
• Browser: IE9+, Firefox, Google Chrome, Safari, Opera
_x000D_
• Environment Power Supply: USB, 5V1A
_x000D_
• Working Temperature: 0°C to 35°C
_x000D_
• Storage Temperature: -20°C to 60°C
_x000D_
• Certification: 3GPP Compliance CE/FCC/GCF, upon customer's requirement
_x000D_
• Material: RoHS
_x000D_
