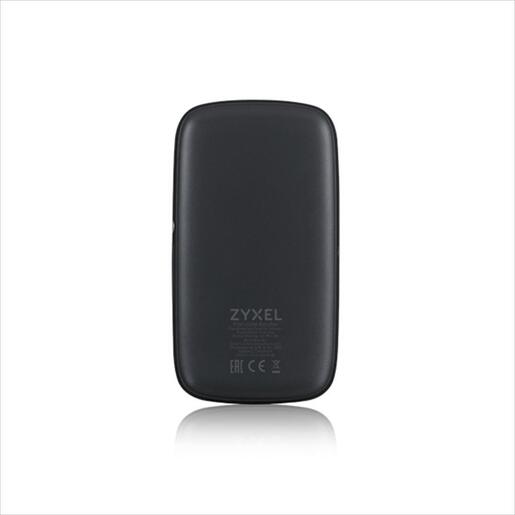

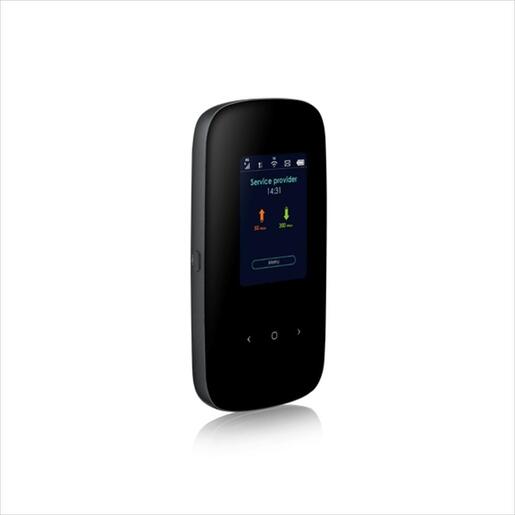

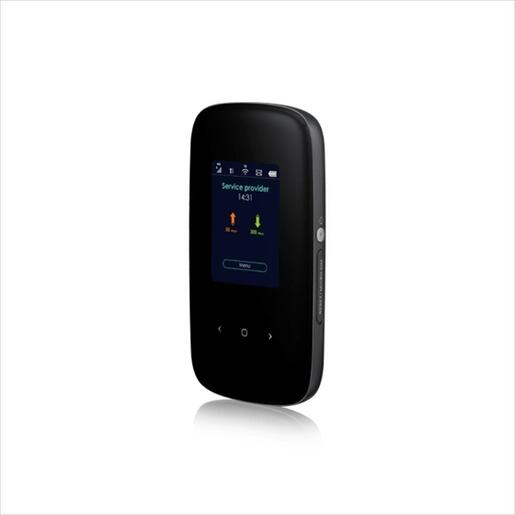

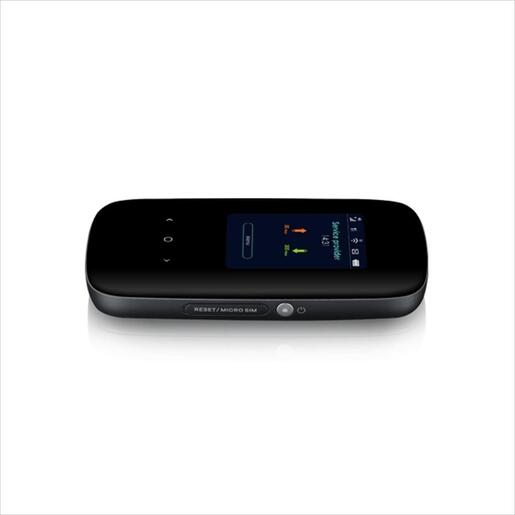

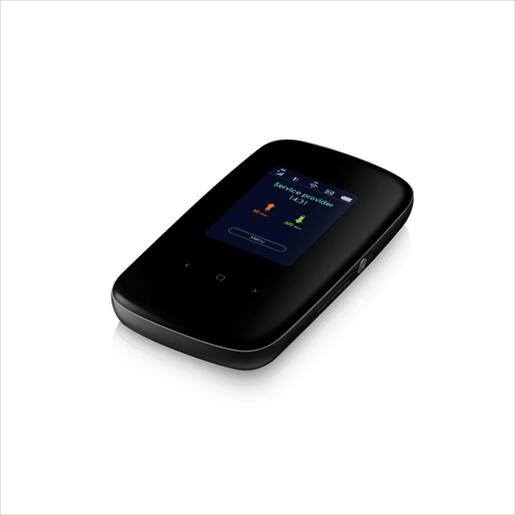

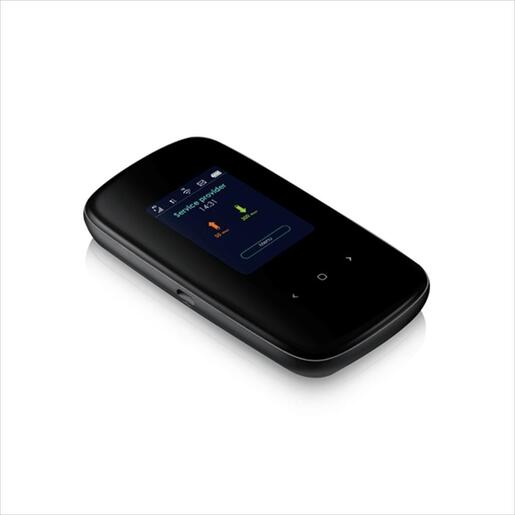

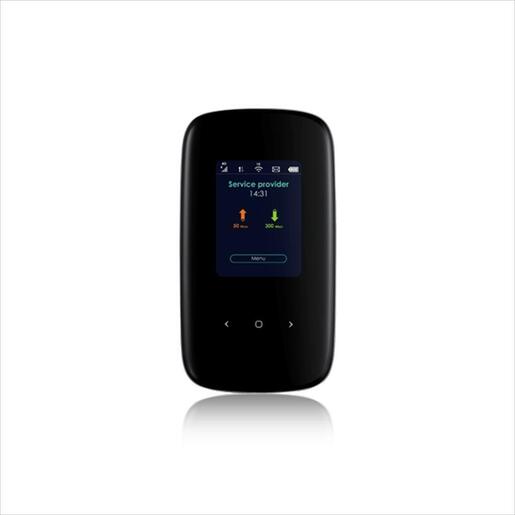

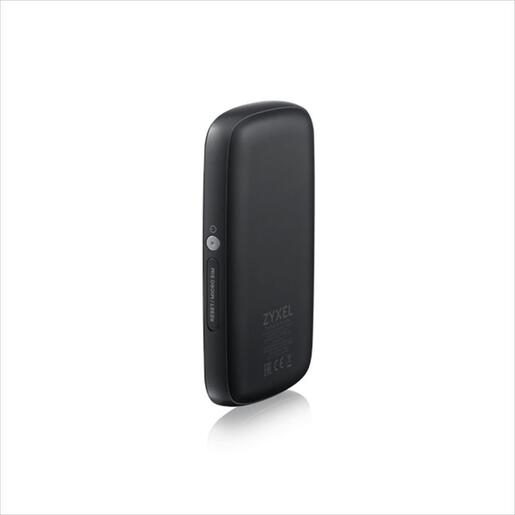

NET ROUTER WIRELESS 4G dual-band ZYXEL LTE2566-M634 Up to 300/50 Mbps, display, 10 hours continuous working hours, up to 32 users, BLACKID EK000697096

Model name: ZYXEL LTE2566-M634

Specification :

_x000D_
• LTE Air Interface_x000D_
  _x000D_
  • Standard compliant: 3GPP release 10, category 6
  _x000D_
  • Supported frequency: LTE B1/B3/B7/B8/B20/B28a/B38/B40/B41
  _x000D_
  • Carrier aggregation support:_x000D_
    _x000D_
    • B1+B1/B3/B/B8/B20/B28a/38/40/41
    _x000D_
    • B3+B3/B7/B8/B20/28a/B38/B40/B41
    _x000D_
    • B7+B7/B8/B20/B28a
    _x000D_
    • B20+B38/40
    _x000D_
    • B38+B38, B40+B40, B41+B41
    _x000D_
    _x000D_
  _x000D_
  • FDD LTE peak data rate: 300 Mbps DL within 40 MHz bandwidth (CA), 50 Mbps UL within 20 MHz bandwidth
  _x000D_
  • TDD LTE peak data rate: 224 Mbps DL within 40MHz bandwidth (CA), 10 Mbps UL within 20 MHz bandwidth
  _x000D_
  _x000D_
_x000D_
• UMTS Air Interface_x000D_
  _x000D_
  • Standard compliant: DC-HSDPA/ HSPA+ compliant
  _x000D_
  • Supported frequency: HSPA+/UMTS 2100/900 MHz (band 1/8)
  _x000D_
  • DC-HSPA+ downlink: DL up to 42 Mbps
  _x000D_
  • HSUPA uplink: UL up to 5.76 Mbps
  _x000D_
  _x000D_
_x000D_
• Hardware Interface_x000D_
  _x000D_
  • One 3FF/Micro SIM card slot
  _x000D_
  • One USB port for power supply or USB with RNDIS
  _x000D_
  • Reset button
  _x000D_
  • Power button
  _x000D_
  • Left, Home/OK, Right (touch sensing keys)
  _x000D_
  • DC input (5V/1.5A, Micro USB)
  _x000D_
  • 2.4-inch TFT display
  _x000D_
  • Display information:_x000D_
    _x000D_
    • Service provider name
    _x000D_
    • 3G/4G network status
    _x000D_
    • Roaming status
    _x000D_
    • Signal strength
    _x000D_
    • Battery status
    _x000D_
    • WiFi status
    _x000D_
    _x000D_
  _x000D_
  _x000D_
_x000D_
• Battery_x000D_
  _x000D_
  • 3000 mAh Lithium-ion polymer, un-removable battery
  _x000D_
  • Up to 10 hours operating time*
  _x000D_
  • Up to 300 hours standby time*
  _x000D_
  _x000D_
_x000D_
• Operating Environment_x000D_
  _x000D_
  • Temperature: 0°C to 40°C (32°F to 104°F)
  _x000D_
  • Humidity: 5% to 95% (Non-condensing)
  _x000D_
  _x000D_
_x000D_
• Storage Environment_x000D_
  _x000D_
  • Temperature: -20°C to 60°C (-4°F to 140°F)
  _x000D_
  • Humidity: 5% to 95% (Non-condensing)
  _x000D_
  _x000D_
_x000D_
• WiFi AP Features_x000D_
  _x000D_
  • 802.11 ac/n/a/g/b, 2.4 GHz & 5 GHz dual-band
  _x000D_
  • Auto Channel Select (ACS)
  _x000D_
  • WiFi Enabled Device #: up to 32
  _x000D_
  • Hidden SSID
  _x000D_
  • Security modes: Open, WPA2-PSK, WPA-PSK/WPA2-PSK
  _x000D_
  • AP power saving mode
  _x000D_
  • Access control: STA blacklist/white list
  _x000D_
  • MAC filtering
  _x000D_
  • Dual-SSID support
  _x000D_
  • WPS: Pin and PBC, WPS2.0
  _x000D_
  _x000D_
_x000D_
• System Features_x000D_
  _x000D_
  • Web UI/multiple language supported
  _x000D_
  • SMS/Quota/APN/PIN management
  _x000D_
  • Network selection
  _x000D_
  • Data usage/statistic
  _x000D_
  • DHCP server
  _x000D_
  • Dynamic DNS
  _x000D_
  • IP/URL filtering
  _x000D_
  • NAT Port forwarding/trigger/ALG/DMZ
  _x000D_
  • IP firewall
  _x000D_
  • Proxy DNS
  _x000D_
  • VPN pass-through
  _x000D_
  • FOTA firmware upgrade
  _x000D_
  • TR-069 remote management
  _x000D_
  • USSD management
  _x000D_
  _x000D_
_x000D_
• USB Tethering System Supported_x000D_
  _x000D_
  • Win XP, Win Vista, Win 7, Win 8, Win 10
  _x000D_
  • MAC OS X10.7 - 10.13
  _x000D_
  • Ubuntu 12.04 LTS, 14.04 LTS
  _x000D_
  _x000D_
_x000D_
• Browser Client_x000D_
  _x000D_
  • Internet Explorer
  _x000D_
  • Edge
  _x000D_
  • Firefox
  _x000D_
  • Chrome
  _x000D_
  • Safari
  _x000D_
