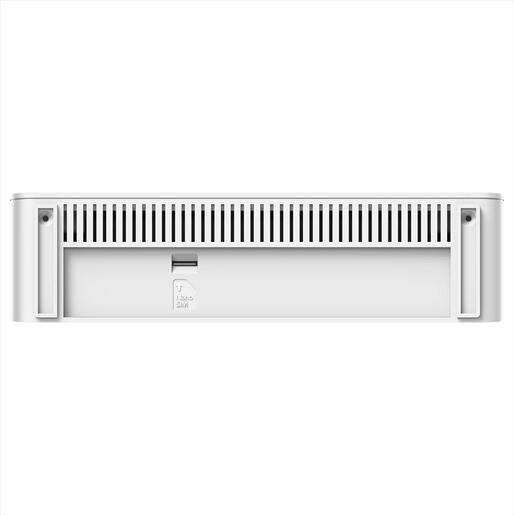

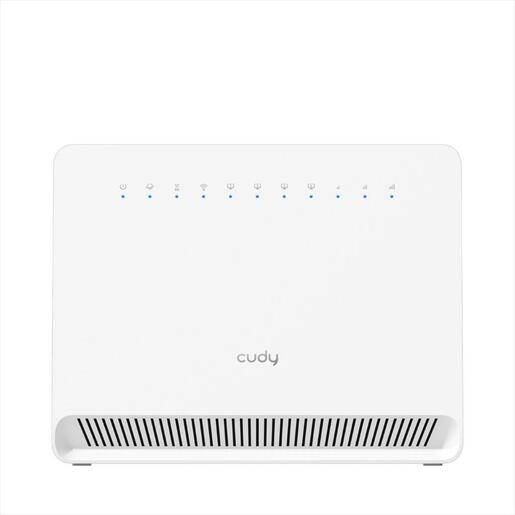

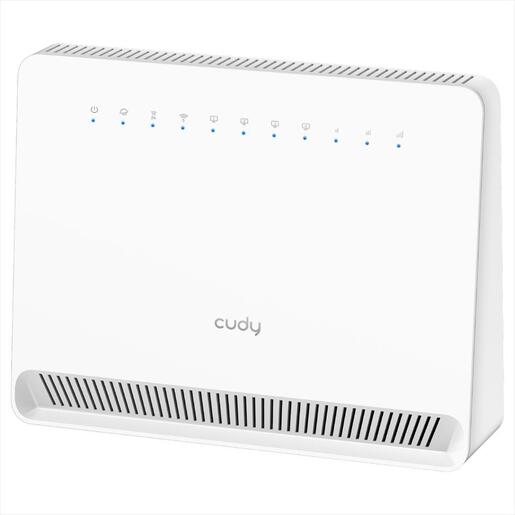

NET ROUTER WIRELESS DUAL BAND AC1200 4G LTE Cat6 CUDY LT700E w/2 internal antennas, 1x WAN Gb port, 4x LAN Gb portsID EK000696610

Model name: CUDY LT700E

Specifications:

_x000D_
• CPU Chipset: MT7621
_x000D_
• CPU Details: 880 MHz Dual-Core, MIPS1004Kc
_x000D_
• Memory/Storage:_x000D_
  _x000D_
  • Flash/ROM: 16 MB (128 Mbit) NOR
  _x000D_
  • DDR/RAM: 128 MB (1 Gbit) DDR3
  _x000D_
  _x000D_
_x000D_
• Cellular Standards: 4G LTE Cat. 6
_x000D_
• Cellular Antennas: 2× Internal
_x000D_
• SIM Options: 1× Nano SIM Slot
_x000D_
• Available Versions: EU, US
_x000D_
• EU Version Cellular: Suitable Region: Europe, Middle East, Africa, Australia, Brazil
_x000D_
• Max Download Speed: 300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)
_x000D_
• Max Upload Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
_x000D_
• Advanced Features: DL 2CA, DL 2×2 MIMO
_x000D_
• Cellular Bands: _x000D_
  _x000D_
  • LTE-FDD: B1/3/5/7/8/20/28/32
  _x000D_
  • LTE-TDD: B38/40/41
  _x000D_
  • WCDMA: B1/5/8
  _x000D_
  _x000D_
_x000D_
• Wireless Speeds:_x000D_
  _x000D_
  • 5 GHz Wi-Fi Speed: 867 Mbps
  _x000D_
  • 2.4 GHz Wi-Fi Speed: 300 Mbps
  _x000D_
  _x000D_
_x000D_
• Wi-Fi Streams:_x000D_
  _x000D_
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  _x000D_
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  _x000D_
  _x000D_
_x000D_
• Wi-Fi Antennas: 2× Internal
_x000D_
• 5 GHz Antenna Gain Max: 4.99 dBi
_x000D_
• 2.4 GHz Antenna Gain Max: 5.18 dBi
_x000D_
• Beamforming: True
_x000D_
• Range Performance: Max: 170 m (558 ft)
_x000D_
• Wall Performance: _x000D_
  _x000D_
  • Two wooden walls with thickness < 10 cm (4'')
  _x000D_
  • One concrete wall with thickness < 20 cm (7'')
  _x000D_
  _x000D_
_x000D_
• Physical Buttons:_x000D_
  _x000D_
  • WPS Button
  _x000D_
  • Reset Button
  _x000D_
  _x000D_
_x000D_

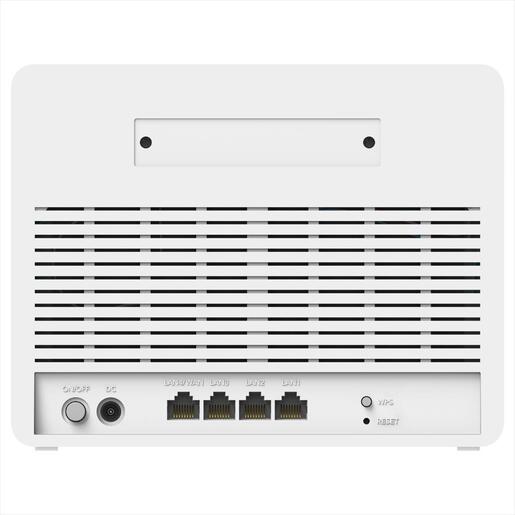

• Gigabit RJ45 Ports: 4
_x000D_
• Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
_x000D_
• LED Indicators:_x000D_
  _x000D_
  • System
  _x000D_
  • Internet
  _x000D_
  • Wi-Fi
  _x000D_
  • LAN
  _x000D_
  • WAN/LAN
  _x000D_
  • Cellular Signal Strength
  _x000D_
  _x000D_
_x000D_
• Power Input: DC Jack
_x000D_
• Power Methods: DC
_x000D_
• Power Adapter: _x000D_
  _x000D_
  • Input: 100 ~ 240 V, 50/60 Hz AC
  _x000D_
  • Output: 48V 1.5A DC
  _x000D_
  _x000D_
_x000D_
• Max Power Consumption: 11.2W
_x000D_
• Idle Power Consumption: 3.6W
_x000D_
• Reliability: EMS: ESD: Contact: 4kV; Air: 8kV
_x000D_
• Environment:_x000D_
  _x000D_
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  _x000D_
  _x000D_
_x000D_
• Certifications: FCC, CE
_x000D_
