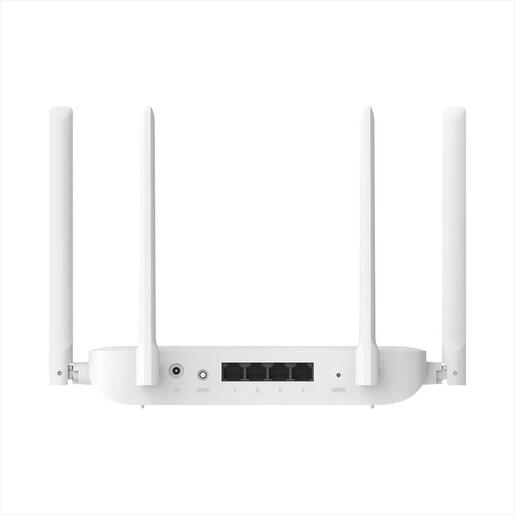

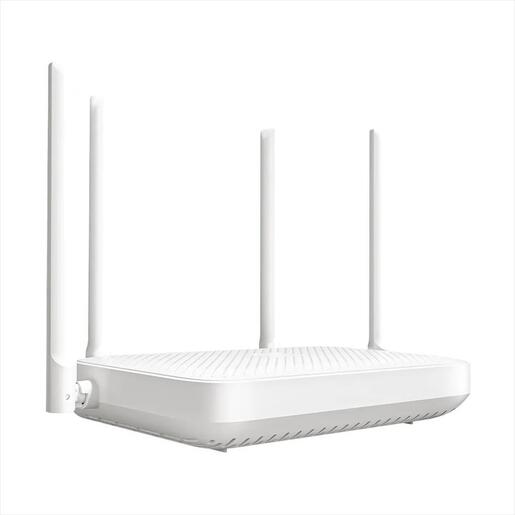

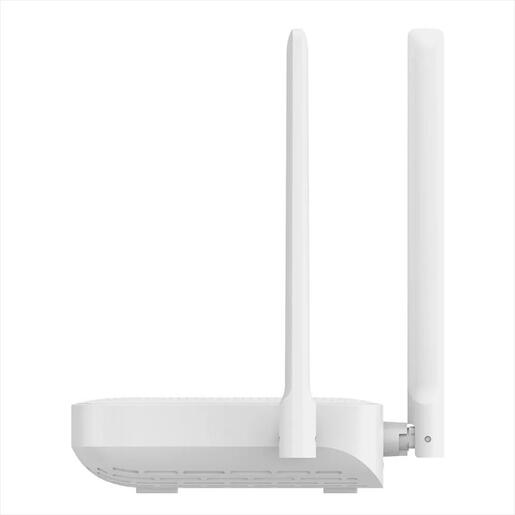

NET ROUTER WIRELESS DUAL BAND AX1500 XIAOMI, WIFI 6, MESH, w/ 4 antennas, 4x GIGABIT WAN/LAN portsID EK000696495

Model name: XIAOMI AX1500

Specifications:

_x000D_
• Color: White
_x000D_
• Hardware Configuration: 2.4G Wi-Fi 2 × 2 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 300Mbps)
_x000D_
• 5GHz Wi-Fi: 2 × 2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1201Mbps)
_x000D_
• Antennas: 4 × High gain antennas
_x000D_
• Heat Dissipation: Natural heat dissipation
_x000D_
• Total Ports: 4 × 10/100/1000Mbps self-adaptive WAN/LAN port (Auto MDI/MDIX)
_x000D_
• LED Indicator Light: 2 lights (System indicator × 1, Internet indicator × 1)
_x000D_
• System Reset Button: x1
_x000D_
• Mesh Networking Button: x1
_x000D_
• Power Input Port: x1
_x000D_
• Protocol Standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
_x000D_
• Wireless Specifications: Dual-band 2.4GHz, 5GHz
_x000D_
• Modulation: _x000D_
  _x000D_
  • 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
  _x000D_
  • 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
  _x000D_
  • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Data rate: MCS0-MCS15
  _x000D_
  • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  _x000D_
  • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
  _x000D_
  • Data rates: MCS0-MCS11 (supports 2 streams)
  _x000D_
  _x000D_
_x000D_
• Software Specifications: _x000D_
  _x000D_
  • Operating System: MiWiFi ROM
  _x000D_
  • Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
  _x000D_
  • Management Applications: Supports Web, Mi Home/Xiaomi Home App (Android, iOS)
  _x000D_
  _x000D_
_x000D_
• Working Environment: _x000D_
  _x000D_
  • Working Environment Temperature: 0 ~ 40°C
  _x000D_
  • Operating Humidity: 10% ~ 90% RH (non-condensing)
  _x000D_
  • Storage Temperature: -40 ~ 70℃
  _x000D_
  • Storage Humidity: 5% ~ 90% RH (non-condensing)
