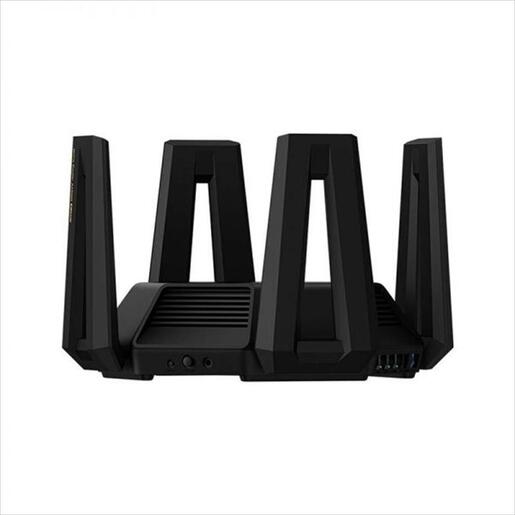

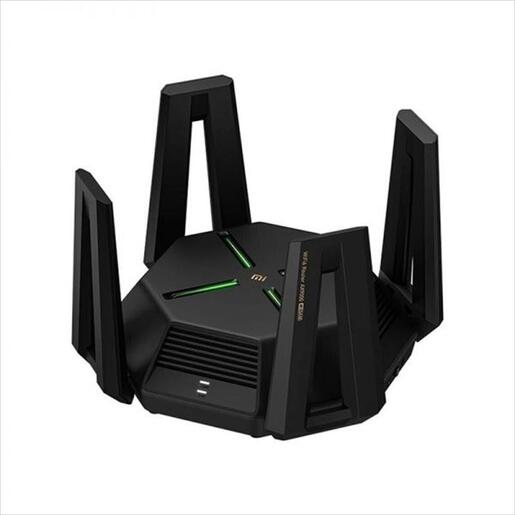

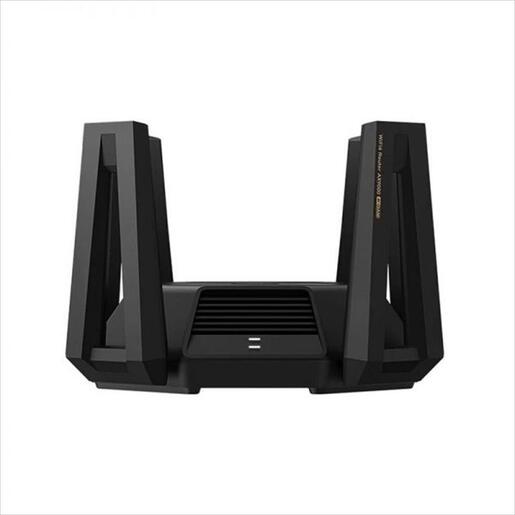

NET ROUTER WIRELESS DUAL BAND AX9000 XIAOMI MI Tri-Band Wifi 6 w/ 12 antennas, x1 2.5Gbps WAN/LAN port, x4 GIGABIT LAN ports,BLACKID EK000696556

Model Name: XIAOMI MI Router AX9000

Specification :

_x000D_
• Processor: Qualcomm® IPQ8072 quad-core A53 2.2GHz CPU
_x000D_
• Network Processing Unit: Dual core 1.7GHz NPU
_x000D_
• Memory: 1GB
_x000D_
• 2.4G Wi-Fi: 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1148Mbps)
_x000D_
• 5GHz-1 Wi-Fi: 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 4804Mbps)
_x000D_
• 5GHz-2 Wi-Fi: 4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate is 2402Mbps)
_x000D_
• Antennas: External high gain antenna + internal AIoT antenna
_x000D_
• Heat Dissipation: Active cooling
_x000D_
• Total Ports:_x000D_
  _x000D_
  • 10/100/1000/2500Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1
  _x000D_
  • 10/100/1000Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1
  _x000D_
  • 10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3
  _x000D_
  _x000D_
_x000D_
• LED Indicator Light: 8 lights, including:_x000D_
  _x000D_
  • System indicator × 1
  _x000D_
  • Internet indicator × 1
  _x000D_
  • Network port × 5
  _x000D_
  • Atmosphere light × 1
  _x000D_
  _x000D_
_x000D_
• System Reset Button: ×1
_x000D_
• USB 3.0 Port: ×1
_x000D_
• Mesh Networking Button: ×1
_x000D_
• Power Button: ×1
_x000D_
• Power Input Port: ×1
_x000D_
• Protocol Standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
_x000D_
• Tri-band: 2.4GHz, 5GHz-1 and 5GHz-2
_x000D_
• Modulation:_x000D_
  _x000D_
  • 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
  _x000D_
  • 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
  _x000D_
  • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Data rate: MCS0-MCS15
  _x000D_
  • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  _x000D_
  • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Data rates: MCS0-MCS11 (supports 4 streams), 4096QAM. Data rates: MCS12-MCS13 (supports 2 streams)
  _x000D_
  _x000D_
_x000D_
• Operating System: MiWiFi ROM, a smart router operating system based on OpenWRT
_x000D_
• WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
_x000D_
• Management Applications: Supports Web, Android, iOS
_x000D_
