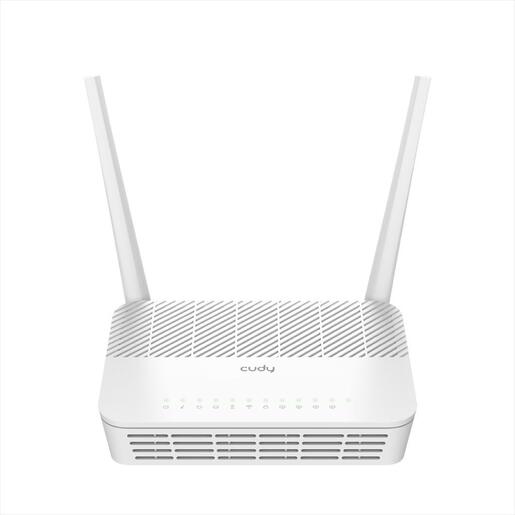

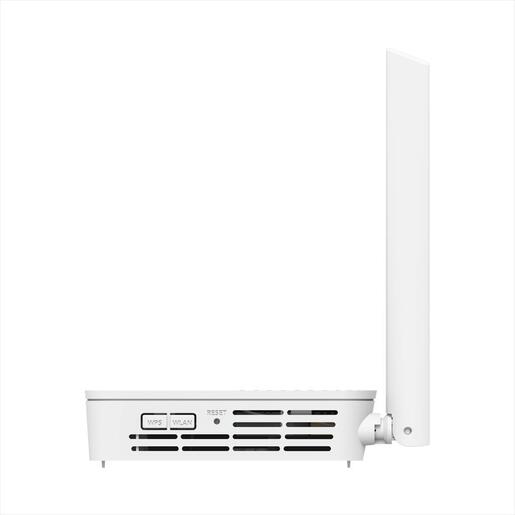

NET ROUTER WIRELESS DUAL BAND Wi-Fi 5 GP1200, AC1200 xPON, w/ 2 antennas, 1 x SC/APC, 4 x LAN 100/1000 portsID EK000697006

Model name: CUDY GP1200

Specification :

• CPU Chipset: RTL9607C
• CPU Details: 1.15 GHz Dual-Core
• Memory/Storage:
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 256 MB (2 Gbit) DDR3
• xPON Protocols:
• GPON (ITU G. 984 standard, Class B+)
• EPON (802.3ah)
• Speed:
• GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream
• EPON: 1.25 Gbps Downstream / Upstream
• Wavelength:
• TX: 1310 nm
• RX: 1490 nm
• Max Transmission Distance: 20 km
• Wireless:
• 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Fixed
• 5 GHz Antenna Gain Max: 5dBi
• 2.4 GHz Antenna Gain Max: 5dBi
• Beamforming: True
• Range Performance: Max: 170 m (558 ft)
• Wall Performance:
• One wooden wall with thickness < 10 cm (4'')
• One concrete wall with thickness < 20 cm (7'')

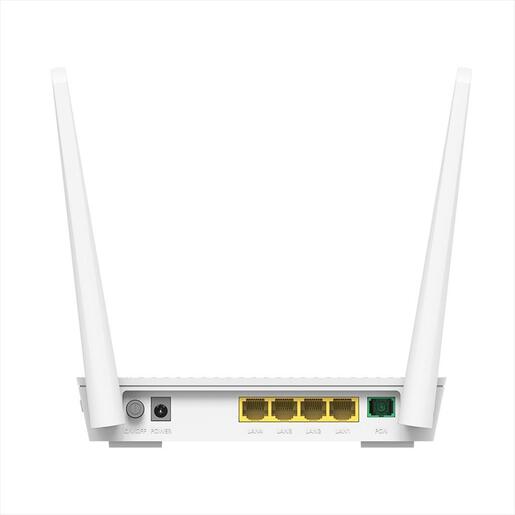

• Interfaces:
• SC/APC Port: 1
• Gigabit RJ45 Ports: 4
• USB-A 2.0 Ports: Optional for ISP Order
• LED Indicators:
• Power
• PON
• LOS
• Internet
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi
• WPS
• LAN
• Physical Buttons:
• Power On/Off Button
• Reset Button
• WPS Button
• Wi-Fi On/Off Button
• Power Input: DC Jack
• Power Methods: DC
• DC: 12V 1A
• Power Adapter:
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1A DC
• Reliability:
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
